Product Details
Place of Origin: Shenzhen, China
Brand Name: MQ
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 92.07005-001
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7.0 |
Resolution: |
800x480 |
Active Area (W*H): |
154.21(W)x85.92(H) |
Outline Dimension (W*H*T): |
164.9(W)x100(H)X5.7(T) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-20℃~70℃ |
Size (inch): |
7.0 |
Resolution: |
800x480 |
Active Area (W*H): |
154.21(W)x85.92(H) |
Outline Dimension (W*H*T): |
164.9(W)x100(H)X5.7(T) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-20℃~70℃ |
Product Technical Parameters
| Diagonal Size | 7” | Touch Panel Optional | Yes |
| Display Format | 800x480 Pixels | Contrast Ratio(Typ) | 500 |
| Interface | HDMI | Viewing Direction | 6 |
| IC or Equivalent | Viewing Angle Range | Left:60 , Right:60 , Up:50 , Down:50 degree | |
| Connection | Plug-in FPC | Brightness(Typ) | 350cd/m2 |
| Outline Dimension | 164.9(W)x100(H)X5.7(T)mm | Operating Temperature | -20℃~70℃ |
| Active Area | 154.21(W)x85.92(H)mm | Storage Temperature | -30℃~80℃ |
Product description

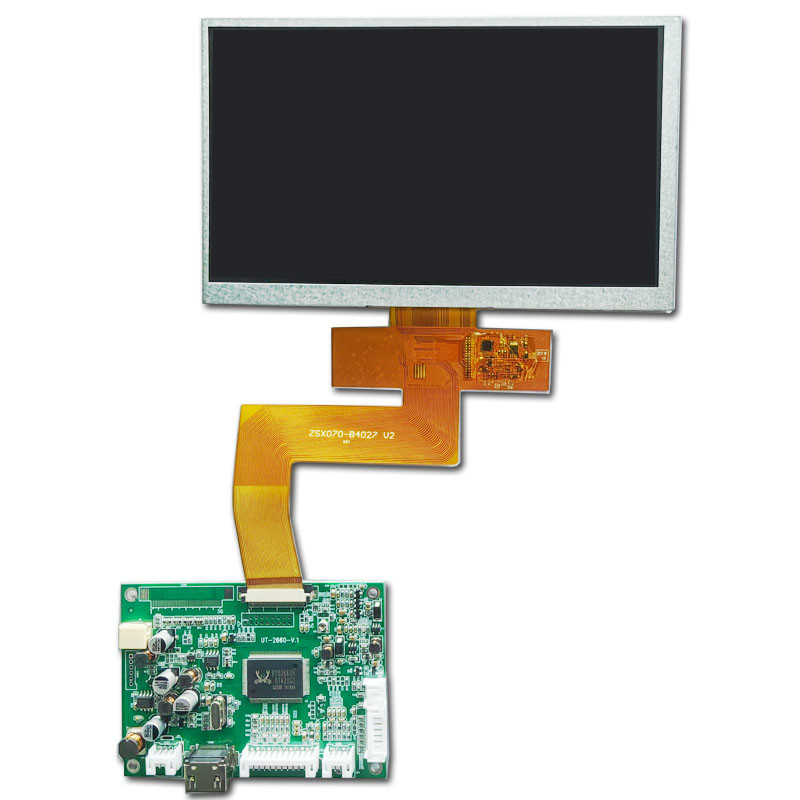

The 90-07005-001 is a highly versatile 7" LCD display. It presents a resolution of 800x480 pixels and is furnished with a HDMI/VGA signal driver board.
Optional Touch Panel Offerings:
This display offers the option of a 4-wire resistive touch panel, which comes with a USB driver board and cable. Alternatively, there is a capacitive touch panel available, accompanied by a USB controller board and cable.
Superior Image Quality and Wide Application Range:
Designed to deliver superior image quality, the display offers full viewing angles. As a result, it is an ideal choice for a diverse range of applications. These include embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high-quality video output is of utmost importance.
Compatibility and Flexibility:
Its compatibility with Raspberry Pi via HDMI significantly enhances its flexibility. It supports operating systems such as Raspbian, Ubuntu, and Windows 10 IoT. Additionally, the display supports multi-touch and is driver-free, ensuring seamless integration.
Function as a Computer Display:
Beyond its compatibility with Raspberry Pi, the 90-07005-001 can also function as a computer display. It offers compatibility with Windows 11, 10, 8, and 7. Its driver-free functionality and multi-touch capabilities make it a convenient display solution that is suitable for a broad spectrum of applications.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
