Product Details
Place of Origin: Shenzhen, China
Brand Name: TIANMA
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: P1330FHF1MA00
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
13.3 |
Resolution: |
1920*1080 |
Luminance(nits): |
1000 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～80℃ |
Active Area (W*H): |
293.76×165.24 |
Outline Dimension (W*H*T): |
308×186×9.7 |
Viewing Angle(RLUD): |
88/88/88/88 |
View Direction: |
ALL |
Interface: |
LVDS 40 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Size (inch): |
13.3 |
Resolution: |
1920*1080 |
Luminance(nits): |
1000 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～80℃ |
Active Area (W*H): |
293.76×165.24 |
Outline Dimension (W*H*T): |
308×186×9.7 |
Viewing Angle(RLUD): |
88/88/88/88 |
View Direction: |
ALL |
Interface: |
LVDS 40 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |

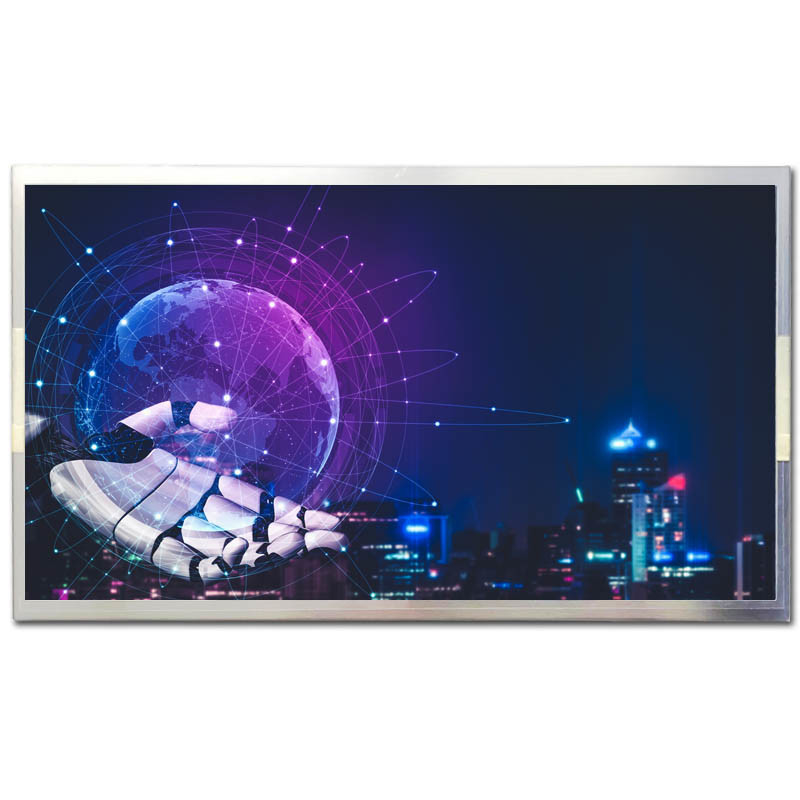

1000 Nits 1920*1080 P1330FHF1MA00 TIANMA Display Panel with LVDS 40 Interface Outdoor Industrial LCD
| Brand | TIANMA |
| Model P/N | P1330FHF1MA00 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Size | 308(W)×186(H) ×9.7(D) mm |
| Surface | Hard coating |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED , 50K hours , Without Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 561g (Typ.) |
| Application | Industrial, outdoor |
| Signal Interface | LVDS (2 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
The TIANMA Display Panel boasts a size of 13.3 inches, making it an ideal display solution for devices that require a larger screen. With its IPS viewing direction, users can expect clear and vibrant images no matter the viewing angle. Additionally, its luminance of 1000 nits ensures that the display is visible even in bright environments.
Measuring at an outline dimension of 308.00x188.00x10.00, the TIANMA Display Panel is designed to be compact and space-efficient. Its slim profile makes it easy to integrate into various devices without sacrificing screen real estate.
One of the key benefits of the TIANMA Display Panel is its LED lifetime of 50,000 hours. This means that users can enjoy a long-lasting display that is both reliable and durable, making it perfect for military LCD applications where ruggedness and longevity are a must.
Overall, the TIANMA Display Panel is a top-of-the-line display solution that offers excellent image quality, durability, and reliability. Whether you're designing a medical device or a military LCD system, the TIANMA Display Panel is a great choice that won't disappoint.
Our P1330FHF1MA00 display panel is perfect for use in a wide range of applications. Its high luminance of 1000 nits and contrast ratio of 1000 make it ideal for use in bright environments, such as outdoor displays and vehicle LCD displays. With a long LED lifetime of 50K hours, this display is built to last.
The active area of this display panel is 293.76×165.24, making it ideal for use in a wide range of industrial applications. The IPS viewing direction ensures that the display is easy to read from any angle, making it perfect for use in applications where multiple people need to view the display at the same time.
The TIANMA Display Panel product offers the following technical support and services:
- Product design and development support
- Application design and development support
- Display quality and reliability consulting
- Environmental compliance consulting
- Product customization support
- Technical documentation and training
- Warranty and repair services
- Technical support for product integration and testing
Product Packaging:
The TIANMA Display Panel product will be securely packaged to ensure safe delivery. The product will be placed in a sturdy cardboard box and will be wrapped with bubble wrap for extra protection. The box will also be labeled with the product name and any handling instructions.
Shipping:
The TIANMA Display Panel product will be shipped through a reliable courier service to ensure timely and safe delivery. The shipping cost will depend on the destination and the weight of the package. The estimated delivery time will be communicated to the customer once the package has been dispatched.
