Product Details
Place of Origin: Shenzhen, China
Brand Name: IVO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: M090AWA6 R0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
9 |
Resolution: |
1280*720 |
Luminance(nits): |
1000 |
Active Area (W*H): |
198.72×111.78 |
Outline Dimension (W*H*T): |
212.2×127.5×11 |
Operating Temperature: |
-30 ~85 °C |
Storage Temperature: |
-40 ~ 90 °C |
Viewing Angle(RLUD): |
80/80/80/80 |
Viewing Direction: |
IPS |
Interface: |
LVDS 40 |
LED Lifetime (hrs): |
30k |
Contrast Ratio: |
1000 |
Size (inch): |
9 |
Resolution: |
1280*720 |
Luminance(nits): |
1000 |
Active Area (W*H): |
198.72×111.78 |
Outline Dimension (W*H*T): |
212.2×127.5×11 |
Operating Temperature: |
-30 ~85 °C |
Storage Temperature: |
-40 ~ 90 °C |
Viewing Angle(RLUD): |
80/80/80/80 |
Viewing Direction: |
IPS |
Interface: |
LVDS 40 |
LED Lifetime (hrs): |
30k |
Contrast Ratio: |
1000 |

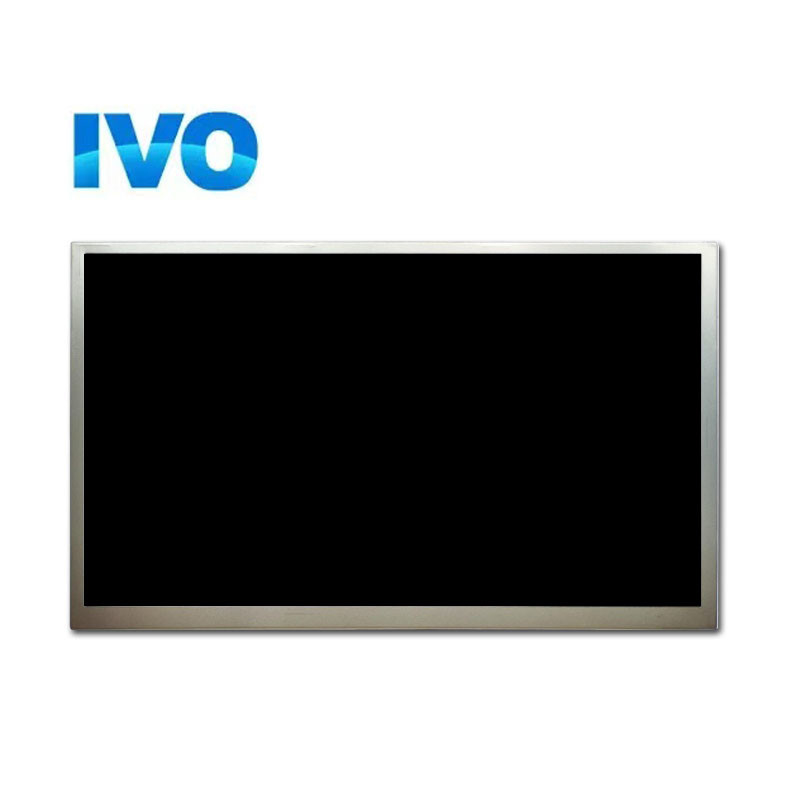

9 inch M090AWA6 R0 IVO Outdoor High Brightness LCD Display for Industrial Screen with 1280×720 Resolution
| Brand | IVO |
| Model P/N | M090AWA6 R0 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198.72(W)×111.78(H) mm |
| Bezel Opening | 202.02(W)×115.78(H) mm |
| Outline(mm) | 212.2 × 127.5 × 11 (H×V×D) |
| Treatment | Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Backlight | 9S3P WLED , 30K hours , No Driver |
| Mass | 328g (Max.) |
| Used for | Outdoor high brightness; Automotive display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
The IVO LCD Display boasts an LVDS 40 interface, which enables fast and reliable data transfer between devices, making it ideal for industrial applications. Its durable construction ensures that it can withstand even the harshest of conditions, with a storage temperature range of -40 ~ 90 °C.
With a contrast ratio of 1000, this industrial LCD monitor delivers crisp and clear images, allowing for easy viewing of important data and visual content. Its 1280*720 resolution ensures high-quality images, making it perfect for use in various industries, including manufacturing, transportation, and military applications.
The IVO LCD Display is designed to meet the needs of various industrial applications, with a robust and reliable design that ensures it can withstand even the toughest environments. Its exceptional performance, combined with its high-quality construction, ensures that it is a reliable and cost-effective solution for industrial display needs.
Our IVO LCD Display product comes with a comprehensive technical support and service package to ensure that our customers have a smooth and hassle-free experience. This includes:
Our team of experienced technicians and engineers are dedicated to providing prompt and efficient support to our customers, helping them to maximize the performance and reliability of our LCD display product.
