Product Details
Place of Origin: Shenzhen, China
Brand Name: ODM
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: AM54801
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
5.48 |
Resolution: |
1080*1920 |
Brightness(cd/m²): |
500 |
Active Area: |
69.26*121.34 |
Outline Dimension (W*H*T): |
70.36*127.34*0.8 |
Operating Temperature: |
-20 ~ 60 °C |
Storage Temperature: |
-30 ~ 70 °C |
Viewing Angle: |
IPS |
Contrast Ratio: |
100000：1 |
Interface: |
MIPI/I2C |
TP: |
Oncell |
Power Consumption(mW): |
1400 |
Size (inch): |
5.48 |
Resolution: |
1080*1920 |
Brightness(cd/m²): |
500 |
Active Area: |
69.26*121.34 |
Outline Dimension (W*H*T): |
70.36*127.34*0.8 |
Operating Temperature: |
-20 ~ 60 °C |
Storage Temperature: |
-30 ~ 70 °C |
Viewing Angle: |
IPS |
Contrast Ratio: |
100000：1 |
Interface: |
MIPI/I2C |
TP: |
Oncell |
Power Consumption(mW): |
1400 |
| GENERAL SPECIFICATIONS | ||||
| Item | Specification | Unit | Note | |
| Screen Size | 5.48 | |||
| Resolution | 1080*1920 | pixels | ||
| Pixel Arrangement | V-style4 | |||
| Pixel Density | 402 | ppi | ||
| Luminance | 500 | Cd/m2 | - | |
| Module Size | Horizontal (H) | 70.36 | mm | typ |
| Vertical (V) | 127.34 | |||
| Thickness (T) | 0.8 | |||
| Active Area | Horizontal | 68.26 | mm | |
| Vertical | 121.34 | |||
| TP | Oncell | |||
| TP IC | FT3519 | |||
| Interface Type | MIPI/I2C | |||
| Color Gamut | DCI-P3 Typ. 100% | |||
| Color depth | 8 bits | bits | ||
| Contrast Ratio | 100000:1 | |||
| Power Consumption(mW) | 1400 | mW | @500nit | |
| Refresh rate | 60 | HZ | ||
| Screen Type | Rigid Screen | |||
| Kind Tips: More details please contact us for products' specifications | ||||
Key Features

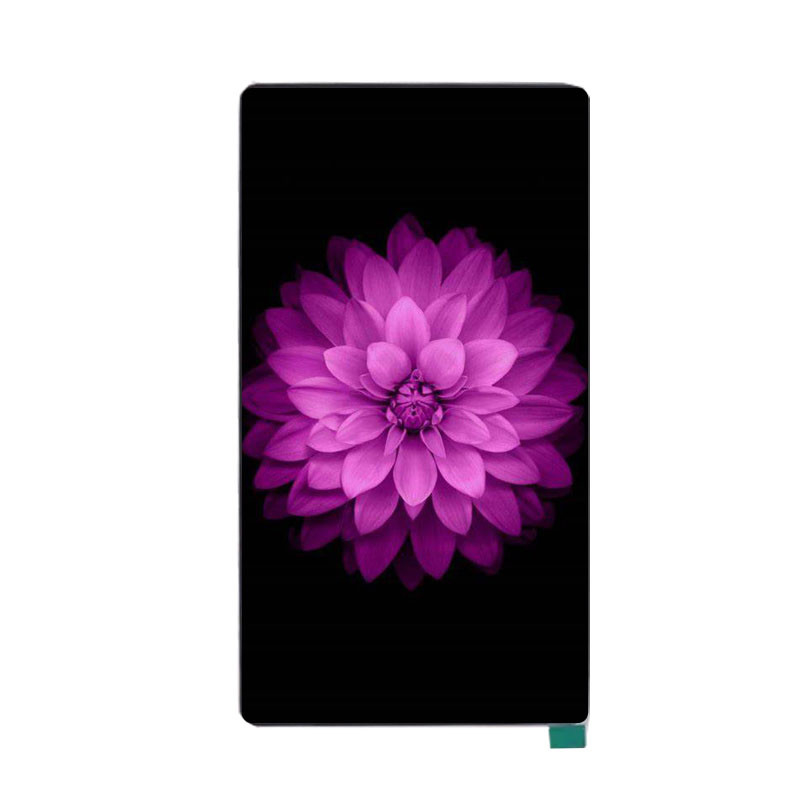

5.48 Inch 1080 x 1920 High Resolution AMOLED Display
Vibrant and True-to-Life AMOLED Technology
High Brightness up to 500 cd/m2 for Exceptional Outdoor Visibility
Exceptional Viewing Angles and Power Efficiency
Versatile and Customizable for Diverse Applications
Ideal for Smartphones, Tablets, Laptops, Wearables, Industrial, and Automotive Applications
Applications
Smartphones and Tablets: Captivate users with stunning visuals and exceptional outdoor readability.
Laptops and Notebooks: Elevate the multimedia experience with breathtaking image quality and power efficiency.
Wearable Devices: Provide a visually compelling and energy-efficient interface for smartwatches, fitness trackers, and more.
Industrial and Medical Displays: Deliver high-resolution, high-brightness, and energy-efficient visuals for specialized applications.
Automotive Infotainment and Instrumentation: Enhance the in-vehicle experience with vibrant, sunlight-readable displays.
