Product Details
Place of Origin: Shenzhen, China
Brand Name: ODM
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: AM60101
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
6.01 |
Resolution: |
1080*2160 |
Brightness(cd/m²): |
500 |
Active Area: |
69.26*136.51 |
Outline Dimension (W*H*T): |
70.07*142.30*0.75 |
Operating Temperature: |
-20 ~ 60 °C |
Storage Temperature: |
-30 ~ 70 °C |
Viewing Angle: |
IPS |
Contrast Ratio: |
100000：1 |
Interface: |
MIPI/I2C |
TP: |
Oncell |
Power Consumption(mW): |
1500 |
Size (inch): |
6.01 |
Resolution: |
1080*2160 |
Brightness(cd/m²): |
500 |
Active Area: |
69.26*136.51 |
Outline Dimension (W*H*T): |
70.07*142.30*0.75 |
Operating Temperature: |
-20 ~ 60 °C |
Storage Temperature: |
-30 ~ 70 °C |
Viewing Angle: |
IPS |
Contrast Ratio: |
100000：1 |
Interface: |
MIPI/I2C |
TP: |
Oncell |
Power Consumption(mW): |
1500 |
| GENERAL SPECIFICATIONS | ||||
| Item | Specification | Unit | Note | |
| Screen Size | 6.01 | |||
| Resolution | 1080*2160 | pixels | ||
| Pixel Arrangement | V-style4 | |||
| Pixel Density | 402 | ppi | ||
| Luminance | 500 | Cd/m2 | - | |
| Module Size | Horizontal (H) | 70.07 | mm | typ |
| Vertical (V) | 142.30 | |||
| Thickness (T) | 0.75 | |||
| Active Area | Horizontal | 68.26 | mm | |
| Vertical | 136.51 | |||
| TP | Oncell | |||
| TP IC | FT3519 | |||
| Interface Type | MIPI/I2C | |||
| Color Gamut | DCI-P3 Typ. 100% | |||
| Color depth | 8 bits | bits | ||
| Contrast Ratio | 100000:1 | |||
| Power Consumption(mW) | 1500 | mW | @430nit | |
| Refresh rate | 60 | HZ | ||
| Screen Type | Rigid Screen | |||
| Kind Tips: More details please contact us for products' specifications | ||||
Key Features

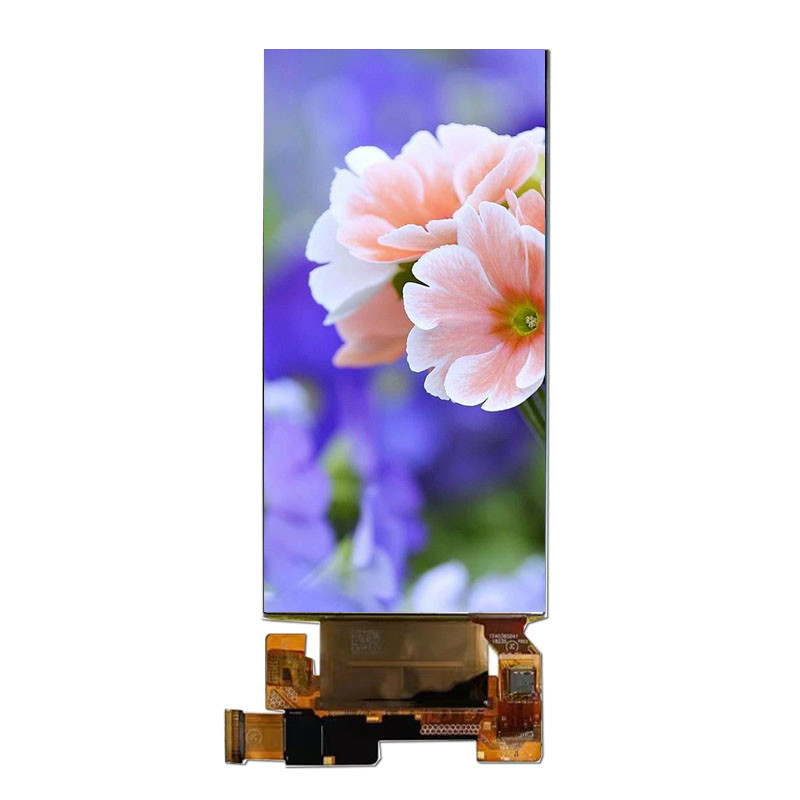

High Resolution: The 6.01-inch AMOLED touch display module boasts an impressive resolution of 1080*2160 pixels, ensuring ultra-sharp and clear visuals. This high resolution is perfect for displaying detailed images, videos, and text with exceptional clarity.
AMOLED Technology: Leveraging Active Matrix Organic Light Emitting Diode (AMOLED) technology, this display offers vibrant colors, deep blacks, and excellent contrast ratios. AMOLED screens are renowned for their superior image quality and energy efficiency.
Touch Capability: The integrated touch functionality allows for smooth and responsive touch interactions, making it ideal for devices that rely on touch input. The touch module ensures precise control and a seamless user experience.
Slim and Lightweight Design: The display module is slim and lightweight, making it suitable for sleek and portable devices without compromising on durability or performance.
Applications
Smartphones and Tablets: Captivate users with stunning visuals and responsive touch interactions.
Laptops and Notebooks: Elevate the multimedia experience with breathtaking image quality and touch capabilities.
AR/VR Headsets: Immerse users in captivating virtual environments with high-resolution visuals.
Wearable Devices: Provide a visually compelling and touch-enabled interface for smartwatches, fitness trackers, and more.
Industrial and Medical Displays: Deliver high-resolution, touch-responsive, and energy-efficient visuals for specialized applications.
