Product Details
Place of Origin: Shenzhen, China
Brand Name: ODM
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: MQ02301
Payment & Shipping Terms
Minimum Order Quantity: Flexible MOQ
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
0.23 |
Resolution: |
640*400 |
Brightness: |
300nit~5000nit |
Power Consumption: |
35mW~185mW |
Operating Temperature: |
-40℃~+65℃ |
Interface: |
I²C+MIPI (2/3/4 Lane) |
Size (inch): |
0.23 |
Resolution: |
640*400 |
Brightness: |
300nit~5000nit |
Power Consumption: |
35mW~185mW |
Operating Temperature: |
-40℃~+65℃ |
Interface: |
I²C+MIPI (2/3/4 Lane) |
| Technical Parameters | Details |
| Resolution | 640*400 |
| Color Pixel Arrangement | Vertical RGB strips |
| Display Size (inch) | 0.23 |
| Interface | I²C+MIPI(1/2 lane) |
| Refresh Rate | 25Hz~120Hz |
| Power Consumption | 35mW~185mW |
| Operating Temperature | -40℃~+65℃ |
| Brightness (cd/㎡) | 300nit~5000nit |

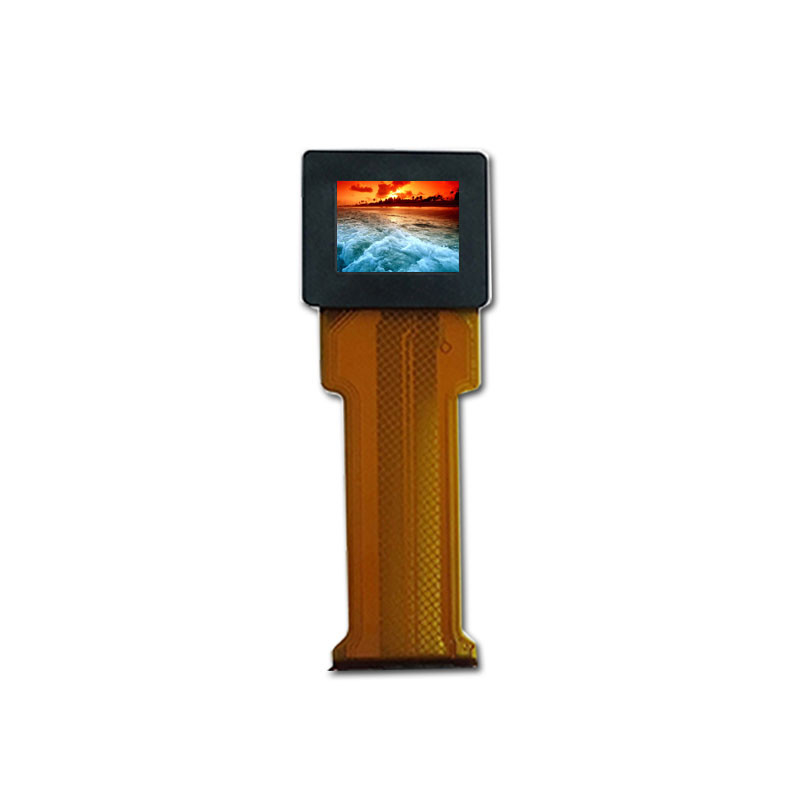

The series products have a resolution of 640*400, a display size of 0.23 inches, a pixel size of 10um*11.5um, and FPC display modules of different colors.
Based on the high brightness characteristics of the product, it can be applied to the AR field with the optical waveguide solution.
Product Features
• Refresh rate: 25Hz~120Hz
• Adjustable brightness
• Built-in Gamma correction function and brightness compensation function at full temperature
Application
1) Augmented Reality (AR) and Virtual Reality (VR) Devices
AR Glasses: Due to its small size and high resolution, the 0.23-inch micro OLED is ideal for AR glasses. It provides clear and detailed visuals needed for overlaying digital information onto the real world.
VR Headsets: The compact size and high pixel density of this OLED make it suitable for VR headsets, enhancing the immersive experience with sharp and vibrant displays.
2) Wearable Technology
Smartwatches: Perfect for high-resolution displays in smartwatches, offering clear visuals for notifications, fitness tracking, and more on a small screen.
Fitness Trackers: The small size and excellent display quality are suitable for fitness trackers, providing detailed information about health metrics and activities.
3) Medical Devices
Portable Diagnostic Tools: Ideal for handheld diagnostic tools that require high-resolution displays to show detailed medical data.
Wearable Medical Monitors: Used in wearable health monitors for displaying critical health information with clarity and precision.
4) Industrial Applications
Control Panels: Suitable for compact control panels in industrial equipment where space is limited but display quality cannot be compromised.
Portable Devices: Used in portable industrial devices that require high-resolution screens for displaying data and controls.
5) Consumer Electronics
Digital Cameras: Utilized in digital camera viewfinders for clear and detailed image previews.
Portable Media Players: Provides high-quality display for small, portable media players.
Smart Home Devices: Suitable for integration into smart home devices like smart thermostats and security systems where clear and compact displays are essential.
6)Automotive Displays
HUDs (Heads-Up Displays): Ideal for heads-up displays in vehicles, offering high-resolution and clear visibility of important driving information.
Instrument Clusters: Can be used in digital instrument clusters where space is limited but display clarity is crucial.
