Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

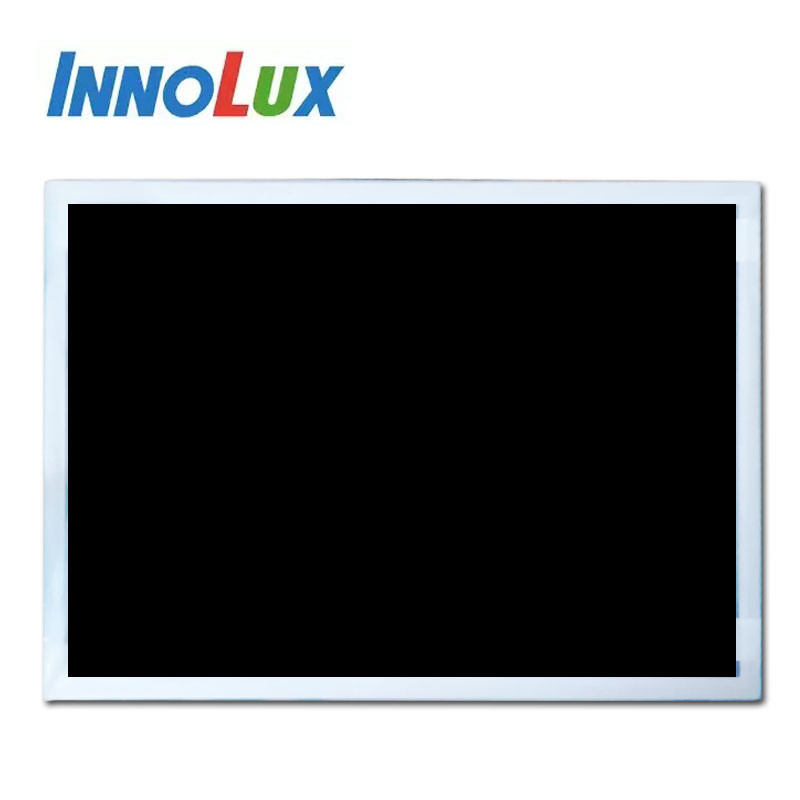

Model Number: G150XJE-E02
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
400 |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*6.5 |
Storage Temperature: |
-20℃～60℃ |
Operating Temperature: |
-0℃～60℃ |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Interface: |
EDP 30 |
LED Lifetime (hrs): |
70K |
Contrast Ratio: |
2500 |
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
400 |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*6.5 |
Storage Temperature: |
-20℃～60℃ |
Operating Temperature: |
-0℃～60℃ |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Interface: |
EDP 30 |
LED Lifetime (hrs): |
70K |
Contrast Ratio: |
2500 |
| Innolux G150XJE-E02 Mechanical Details | ||||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 6.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right, bezel | |||
| Other Spec : | Weight | 650/680g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Innolux G150XJE-E02 Optical Details | ||||
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 2500:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | NPVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 16/7 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct | ||||
The INNOLUX LCD Display has an Outline Dimension of 326.5*253.5*6.5, making it compact and easy to integrate into different designs. Its 15-inch size makes it a suitable option for applications that require a moderate display size. Additionally, the display has an IPS tft lcd display, which ensures that the images displayed are clear and of high quality, with accurate colors and great viewing angles.
The INNOLUX LCD Display has a wide Viewing angle(RLUD) of 88/88/88/88, which means that users can view the display from different angles without compromising the quality of the images displayed. Moreover, the display has a high Contrast Ratio of 2500, which ensures that the images displayed are sharp and vivid.
The G150XJE-E02 has a size of 15 inches and a luminance of 400 nits, making it perfect for a variety of industrial applications. It has a viewing angle of 88/88/88/88, which means that you can view the display from almost any angle. It also has a long LED lifetime of 70K hours, ensuring that you won't have to replace it anytime soon.
Our INNOLUX LCD Display product technical support and services include:
Product Packaging:
Shipping:
