Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G185BGE-L01
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
18.5 |
Resolution: |
1366*768 |
Luminance(nits): |
300 |
Active Area (W*H): |
409.8 * 230.4 |
Outline Dimension (W*H*T): |
430.37*254.6*16.6 |
Operating Temperature: |
-0℃～60℃ |
Storage Temperature: |
-20℃～60℃ |
Viewing Angle(RLUD): |
85/85/80/80 |
Viewing Direction: |
TN |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 30 |
Contrast Ratio: |
1000 |
Size (inch): |
18.5 |
Resolution: |
1366*768 |
Luminance(nits): |
300 |
Active Area (W*H): |
409.8 * 230.4 |
Outline Dimension (W*H*T): |
430.37*254.6*16.6 |
Operating Temperature: |
-0℃～60℃ |
Storage Temperature: |
-20℃～60℃ |
Viewing Angle(RLUD): |
85/85/80/80 |
Viewing Direction: |
TN |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 30 |
Contrast Ratio: |
1000 |

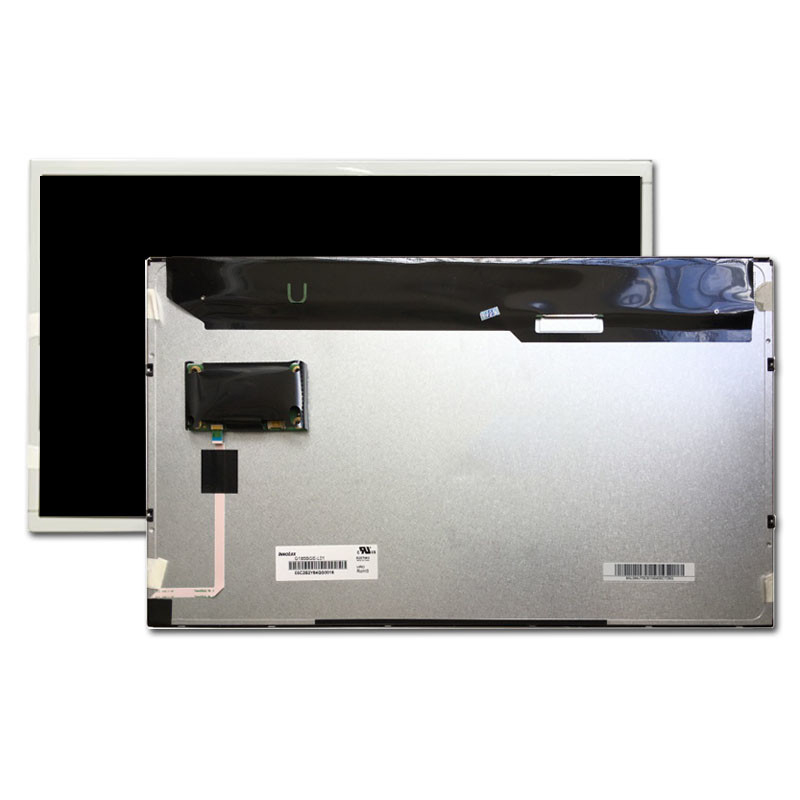

18.5 inch G185BGE-L01 Innolux CHIMEI LCD Panel with 1366*768 Resolution for Industrial Screen
| Brand | Chimei Innolux |
| Model P/N | G185BGE-L01 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline(mm) | 430.37(W)×254.6(H)×16.6(D) |
| Luminance | 300 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Good View at | - |
| Color Depth | 16.7M 72% NTSC |
| Mass | 1.58/1.65Kgs (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Backlight | WLED , 50K hours , With LED Driver |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
Product Name: LCD Display
The display interface uses LVDS 30, which ensures high-speed data transfer and reliable performance. This makes it the perfect choice for industrial applications that require a fast and stable interface.
The INNOLUX LCD Display boasts a luminance of 300 nits, which means it can provide bright and vivid images even in the brightest of environments. This makes it ideal for outdoor applications, as well as indoor environments where there is a lot of ambient light.
The viewing angle of this display is also impressive, with a viewing angle of 85/85/80/80 (RLUD). This means that users can view the display from almost any angle without experiencing any distortion or loss of image quality.
The viewing direction of the INNOLUX LCD Display is TN, which is ideal for applications where the display will be viewed head-on. This type of display is known for its high contrast and fast response time, making it perfect for applications where speed and clarity are essential.
In conclusion, the INNOLUX LCD Display is the perfect choice for industrial applications that require a high-quality display that can withstand tough environments. With its impressive operating temperature range, reliable interface, bright luminance, wide viewing angle, and TN viewing direction, this display is sure to meet the needs of any industrial touch screen monitor application.
The INNOLUX G185BGE-L01 LCD display is suitable for use in various industrial touch screen monitor applications. The product's high resolution of 1366*768 and a viewing direction of TN make it ideal for use in the medical, gaming, transportation, and industrial sectors. With a minimum order quantity of only one piece, you can quickly get the display you need at a competitive price.
This industrial LCD display is perfect for use in gaming machines and medical devices. Its long-lasting LED lifetime of 50K hours is suitable for long-term use. The active area of 409.8*230.4 provides a clear and crisp display for users to interact with. The display also has a customizable packaging detail, delivering your product securely and efficiently.
1. Technical assistance for installation, setup, and usage of INNOLUX LCD Display.
2. Troubleshooting assistance for any issues that may arise during usage.
3. Warranty support for defective or damaged INNOLUX LCD Display.
4. Software and firmware updates for improved performance and compatibility.
5. Repair and replacement services for any hardware issues.
6. Consultation services for custom solutions and projects utilizing INNOLUX LCD Display.
