Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G150XJE-E05
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
350 |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*6.5 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30 ~ 70 °C |
Viewing Angle(RLUD): |
88/88/88/88 |
Viewing Direction: |
IPS |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
2500 |
Interface: |
EDP 30 |
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
350 |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*6.5 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30 ~ 70 °C |
Viewing Angle(RLUD): |
88/88/88/88 |
Viewing Direction: |
IPS |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
2500 |
Interface: |
EDP 30 |

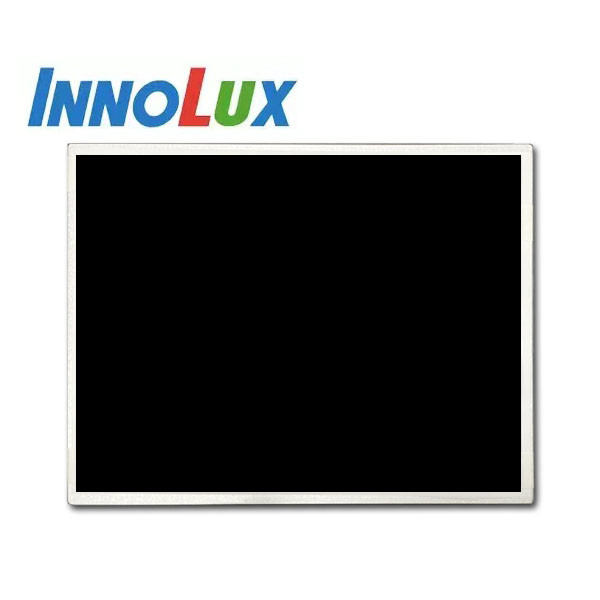

1024*768 Resolution 15 inch G150XJE-E05 INNOLUX LCD Display With 350 Nits Luminance and Wide Viewing Angle
| Innolux G150XJE-E05 Application Details | ||||
| Basic Info : | Panel Brand | INNOLUX | Panel Model | G150XJE-E05 |
| Diagonal Size | 15.0" | Application | Industrial,Gaming | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | WLED Backlight,Life≥50K hours,With LED Driver, 6/8bit ,Matte | |||
| Innolux G150XJE-E05 Mechanical Details | ||||
| Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch (W×H) | 0.099×0.297 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) |
| Bezel Opening | - | Outline Depth | 6.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Detail : | Mass | - | Surface | Antiglare, Hard coating (3H) |
| Innolux G150XJE-E05 Optical Details | ||||
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 2500 : 1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Optical Mode | NPVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 16/7 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
One of the standout features of this INNOLUX LCD Display is its size. With a 15-inch display, this product is large enough to provide a clear image while still being compact enough to fit into a range of spaces. This makes it perfect for use in a range of industrial and military applications where space is at a premium.
The INNOLUX LCD Display also features an EDP 30 interface, which makes it easy to connect to a range of devices. This interface is popular in a range of industrial and military applications, making it a versatile product that can be used in a range of settings.
Another key feature of this INNOLUX LCD Display is its LED lifetime of 50,000 hours. This means that it is a reliable and durable product that can be used for extended periods of time without needing to be replaced. This is especially important in industrial and military applications where downtime can be costly.
The G150XJE-E05 is a versatile product that can be used in a wide range of settings. One common application is in vehicle LCD displays, where the display's high luminance of 350 nits ensures that it is easily visible even in bright sunlight. The display's active area of 304.1*228.1 and resolution of 1024*768 make it ideal for displaying clear and detailed images, while its edp display interface ensures fast and reliable data transfer.
Other potential applications for the G150XJE-E05 include medical devices, industrial equipment, and consumer electronics. Its compact outline dimension of 326.5*253.5*6.5 mm makes it easy to integrate into a variety of devices, while its certifications ensure that it meets the safety and quality standards required for vehicle, medical device, or other application.
At INNOLUX, we offer comprehensive technical support and services for our LCD display products. Our team of expert engineers and technicians are available to assist with any technical issues or questions you may have.
We offer a range of services including:
Our goal is to ensure that our customers have the best possible experience using our products, and we are committed to providing top-notch technical support and services to achieve this.
