Product Details
Place of Origin: Shenzhen, China
Brand Name: Kyocera
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: TCG070WVLSJPPA-GD20
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7.0 |
Resolution: |
800×480 |
Brightness (cd/m²): |
500 |
Active Area (W*H): |
152.4(W)×91.44(H) Mm |
Outline Dimension (W*H*T): |
169.8 × 109.7 × 9.7 (H×V×D) |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-30 ~ 80 °C |
Viewing Direction: |
TN |
Viewing Angle(RLUD): |
85/85/85/85 |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
70K |
Contrast Ratio: |
650 |
Size (inch): |
7.0 |
Resolution: |
800×480 |
Brightness (cd/m²): |
500 |
Active Area (W*H): |
152.4(W)×91.44(H) Mm |
Outline Dimension (W*H*T): |
169.8 × 109.7 × 9.7 (H×V×D) |
Operating Temperature: |
-20 ~ 70 °C |
Storage Temperature: |
-30 ~ 80 °C |
Viewing Direction: |
TN |
Viewing Angle(RLUD): |
85/85/85/85 |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
70K |
Contrast Ratio: |
650 |

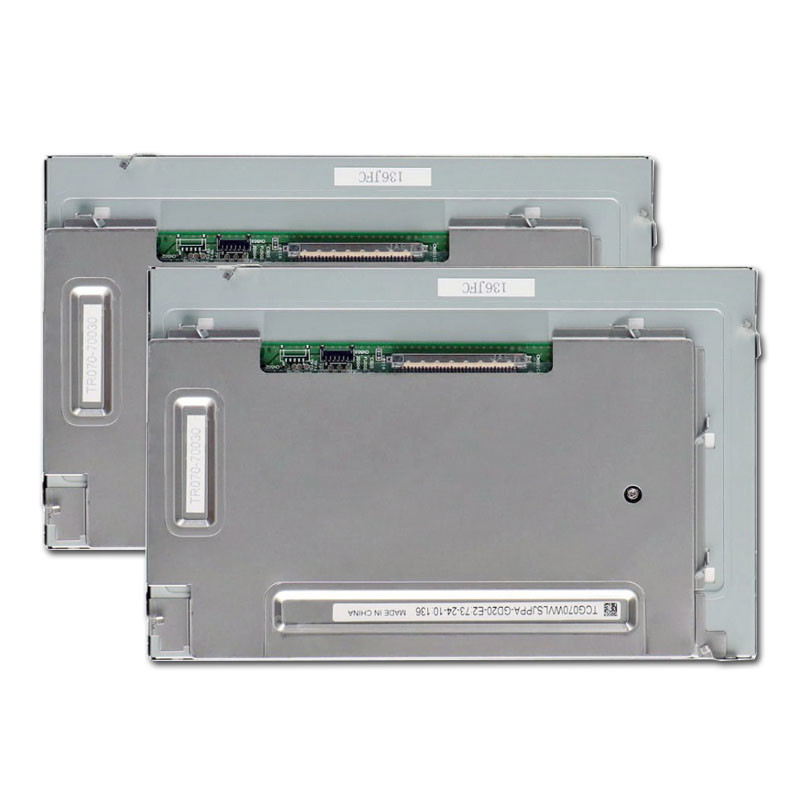

7 inch Kyocera TCG070WVLSJPPA-GD20 LCD Display with Long LED Lifetime Industrial Panel
| Brand | Kyocera |
| Model P/N | TCG070WVLSJPPA-GD20 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | - |
| Outline(mm) | 169.8 × 109.7 × 9.7 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 650 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 18/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AWV, Normally Black, Transmissive |
| Color Depth | 262K/16.2M 51% NTSC |
| Backlight | WLED , 70K hours , With LED Driver |
| Mass | 260g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch, I²C |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
This industrial TFT LCD display is built to withstand tough environments and is ideal for use in military applications. The display's operating temperature range of -20 ~ 70 °C and storage temperature range of -30 ~80 °C make it suitable for use in extreme temperatures. The display's LED lifetime of 70K hours ensures long-term reliability and minimal maintenance.
The Kyocera LCD Display is designed with TN (Twisted Nematic) technology, which provides excellent contrast and viewing angles. This makes it ideal for use in applications where clear and accurate image display is essential.
In summary, the Kyocera LCD Display is a reliable and durable industrial TFT LCD display that is suitable for use in military applications. With its high-performance attributes and TN technology, this display provides an exceptional viewing experience.
The Kyocera TCG070WVLSJPPA-GD20 is a popular choice for many different applications. The active area of the screen is 152.4(W)×91.44(H) mm, and it has a brightness of 500 cd/m².
The TCG070WVLSJPPA-GD20 is also designed to withstand a range of temperatures, with a storage temperature range of -30 ~80 °C and an operating temperature range of -20 ~ 70 °C. This makes it ideal for use in a variety of different environments and scenarios.
Whether you're looking to use the Kyocera TCG070WVLSJPPA-GD20 for medical equipment, industrial machinery, or consumer electronics, this LCD display screen is sure to meet your needs. And with customizable packaging and fast delivery times of 1-7 working days, you can get your hands on this product quickly and easily.
