Product Details
Place of Origin: Shenzhen, China
Brand Name: Kyocera
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: TCG104XGLPAPNN-AN40
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
10.4 |
Resolution: |
1024×768 |
Brightness (cd/m²): |
1300 |
Active Area (W*H): |
210.4 × 157.8 |
Outline Dimension (W*H*T): |
230 × 180.2×10.5 |
Operating Temperature: |
-30 ~80 °C |
Storage Temperature: |
-30 ~80 °C |
Viewing Angle(RLUD): |
85/85/85/85 |
Viewing Direction: |
IPS |
Interface: |
LVDS |
Contrast Ratio: |
700 |
LED Lifetime (hrs): |
70K |
Size (inch): |
10.4 |
Resolution: |
1024×768 |
Brightness (cd/m²): |
1300 |
Active Area (W*H): |
210.4 × 157.8 |
Outline Dimension (W*H*T): |
230 × 180.2×10.5 |
Operating Temperature: |
-30 ~80 °C |
Storage Temperature: |
-30 ~80 °C |
Viewing Angle(RLUD): |
85/85/85/85 |
Viewing Direction: |
IPS |
Interface: |
LVDS |
Contrast Ratio: |
700 |
LED Lifetime (hrs): |
70K |

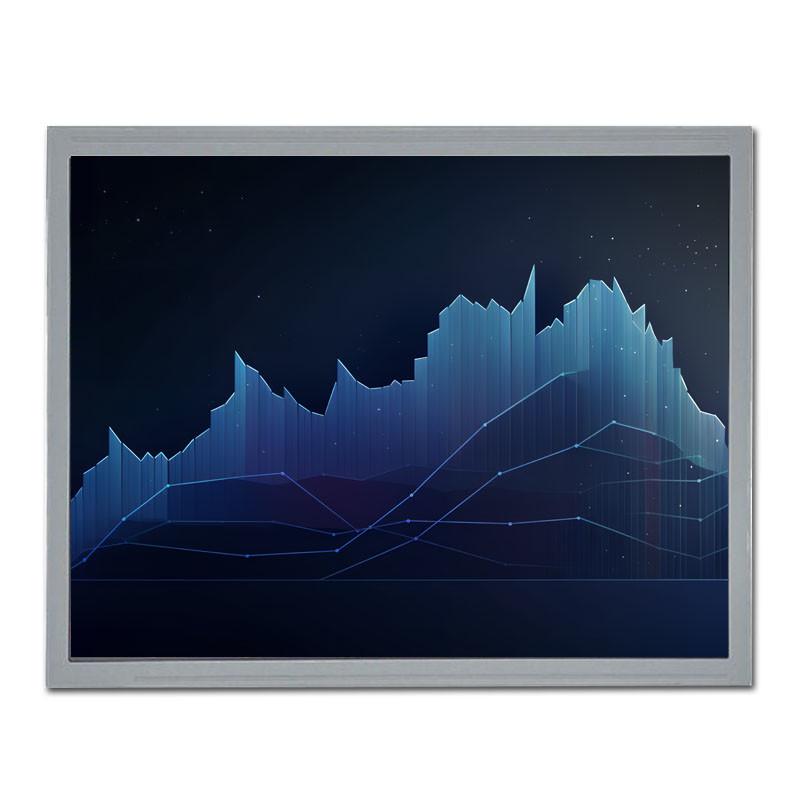

10.4 inch TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 IPS TFT with LVDS Interface
| Kyocera TCG104XGLPAPNN-AN40 Application Details | ||||
| Basic Information : | Brand | Kyocera | Type | a-Si TFT-LCD , LCM |
| Model | TCG104XGLPAPNN-AN40 | Used For | Indusrial, automotive display | |
| Screen Size | 10.4 inch | Alias | - | |
| Environment : | Storage Temp. | -30 ~ 80°C | Operating Temp. | -30 ~ 80 °C |
| RoHS | YES | Vibration | - | |
| Kyocera TCG104XGLPAPNN-AN40 Mechanical Details | ||||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.0685×0.2055 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2055×0.2055 (H×V) [123PPI] | |
| Mechanical Size : | Active Area(mm) | 210.4(H) × 157.8(V) | Bezel Area(mm) | 215.4(H) × 161.8(V) |
| Outline Dim.(mm) | 230(H) × 180.2(V) | Depth(mm) | 10.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 480g (Typ.) | Treatment | Antiglare |
| Kyocera TCG104XGLPAPNN-AN40 Optical Details | ||||
| Basic Information : | Luminance(cd/m²) | 1300 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AWV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 18/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | Wx:0.315; Wy:0.340 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6304K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
One of the key features of the Kyocera LCD Display is its impressive contrast ratio of 700, which ensures excellent image quality and clarity. This makes it an ideal choice for applications where high-quality visuals are essential, such as in military and industrial environments.
The display also boasts an outline dimension of 230(H) × 180.2(V)×10.5, making it compact and easy to integrate into a variety of systems. This makes it a great choice for applications where space is at a premium.
In addition to its impressive size and contrast ratio, the Kyocera LCD Display is also designed to withstand harsh environmental conditions. It has a storage temperature range of -30 ~80 °C, making it suitable for use in extreme temperatures.
The interface of the Kyocera LCD Display is LVDS, which is a high-speed, low-power digital interface that is commonly used in industrial applications. This makes it easy to integrate into a variety of systems and ensures reliable performance.
In summary, the Kyocera LCD Display is a top-of-the-line military and industrial TFT display that offers superior performance, reliability, and durability. With its 10.4-inch size, 700 contrast ratio, compact outline dimension, and LVDS interface, it is an ideal choice for a wide range of applications.
Kyocera offers technical support and services for their LCD display products, including:
For more information on Kyocera's LCD display technical support and services, please contact their customer service team.
