Product Details
Place of Origin: Shenzhen, China
Brand Name: Mitsubishi
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: AA070MC01
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7 |
Resolution: |
800×480 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
152.4(W)×91.44(H) Mm |
Outline Dimension (W*H*T): |
169.8(W)×109.7(H) ×9.4(D) Mm |
Operating Temperature: |
-30 ~ 80 °C |
Storage Temperature: |
-30 ~ 80 °C |
View Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
100K |
Interface: |
LVDS 20 |
Size (inch): |
7 |
Resolution: |
800×480 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
152.4(W)×91.44(H) Mm |
Outline Dimension (W*H*T): |
169.8(W)×109.7(H) ×9.4(D) Mm |
Operating Temperature: |
-30 ~ 80 °C |
Storage Temperature: |
-30 ~ 80 °C |
View Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
100K |
Interface: |
LVDS 20 |

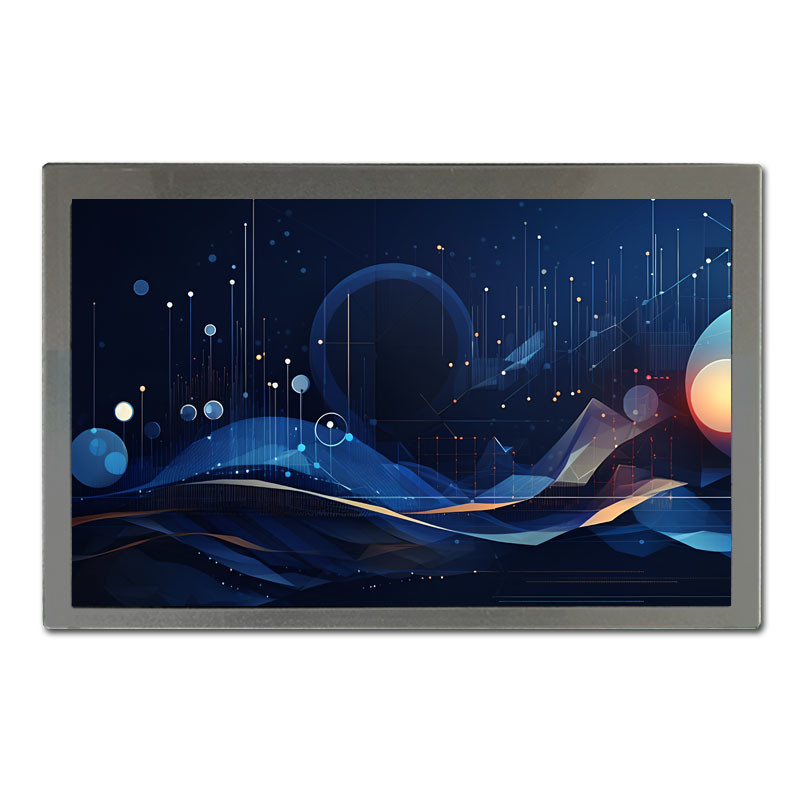

7 inch AA070MC01 Mitsubishi Industrial LCD Display 1000 nits High Brightness TFT 800x480 Resolution 100K LED Lifetime
| Brand | Mitsubishi |
| Model P/N | AA070MC01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 156.4(W)×95.5(H) mm |
| Outline Size | 169.8(W)×109.7(H) ×9.4(D) mm |
| Brightness | 1000 cd/m² (Typ.) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M 50% NTSC |
| Frequency | 60Hz |
| Weight | 200g (Typ.) |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | SWV, Normally Black, Transmissive |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 100K hours , With LED Driver |
| Touch Screen | Without |
| Application | Industrial, Outdoor brightness |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
The LED lifetime of this display is an impressive 100,000 hours, making it one of the most durable displays on the market today. Its active area measures 152.4(W)×91.44(H) mm, providing ample room for displaying important information. The brightness of this display is 1000 cd/m², ensuring that it will be visible even in the brightest environments.
This display is designed for use in extreme temperatures, with an operating temperature range of -30°C to 80°C. It is perfect for use in harsh outdoor environments and can withstand extreme cold and heat without losing its functionality. The display is also resistant to shock and vibration, making it an ideal choice for use in military applications and other harsh environments.
As one of the leading display panel manufacturers, Mitsubishi is committed to delivering high-quality products that exceed customer expectations. The Mitsubishi LCD Display is no exception, offering superior image quality, durability, and versatility. Whether you need a display for military applications or industrial settings, this display is the perfect solution.
AA070MC01 is a military-grade LCD display that can be used in various military applications such as tanks, aircraft, and naval vessels. Its rugged design and durability make it ideal for use in harsh environments, where it can withstand extreme temperatures, vibration, and shock. The display has an active area of 152.4(W)×91.44(H) Mm, and it has a brightness of 1000 cd/m² and a contrast ratio of 1000, which ensures clear and vivid images even in bright sunlight.
In addition to military applications, AA070MC01 is also suitable for use as an industrial LCD monitor in factories and other industrial environments. Its high-resolution display and excellent image quality make it ideal for monitoring production processes, controlling machinery, and displaying information. The display has an LVDS 20 interface, which allows it to be easily connected to various devices, and it operates in a wide temperature range of -30 ~ 80 °C.
If you need a reliable and high-quality military LCD display or an industrial LCD monitor, Mitsubishi AA070MC01 is an excellent choice. It has a supply ability of 500,0 pieces per day, and it can be purchased with various payment terms such as T/T, L/C, Credit card, and PayPal. Contact us today to learn more about this product or to place an order.
Mitsubishi LCD Display product technical support and services:
- Online technical support and troubleshooting resources
- Warranty information and support
- Repair and maintenance services
- Product manuals and documentation
- Software and driver downloads
- Product training and certification programs
