Product Details
Place of Origin: Shenzhen, China
Brand Name: Mitsubishi
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: AA121XL01
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
12.1 |
Resolution: |
1024×768 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
245.76×184.32 Mm |
Outline Dimension (W*H*T): |
260.5×203 ×9.7 Mm |
Operating Temperature: |
-30 ~ 80 °C |
Storage Temperature: |
-30 ~ 80 °C |
Viewing Angle(RLUD): |
80/80/60/80 |
View Direction: |
TN |
Contrast Ratio: |
600 |
Interface: |
LVDS 20 |
LED Lifetime (hrs): |
100K |
Size (inch): |
12.1 |
Resolution: |
1024×768 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
245.76×184.32 Mm |
Outline Dimension (W*H*T): |
260.5×203 ×9.7 Mm |
Operating Temperature: |
-30 ~ 80 °C |
Storage Temperature: |
-30 ~ 80 °C |
Viewing Angle(RLUD): |
80/80/60/80 |
View Direction: |
TN |
Contrast Ratio: |
600 |
Interface: |
LVDS 20 |
LED Lifetime (hrs): |
100K |

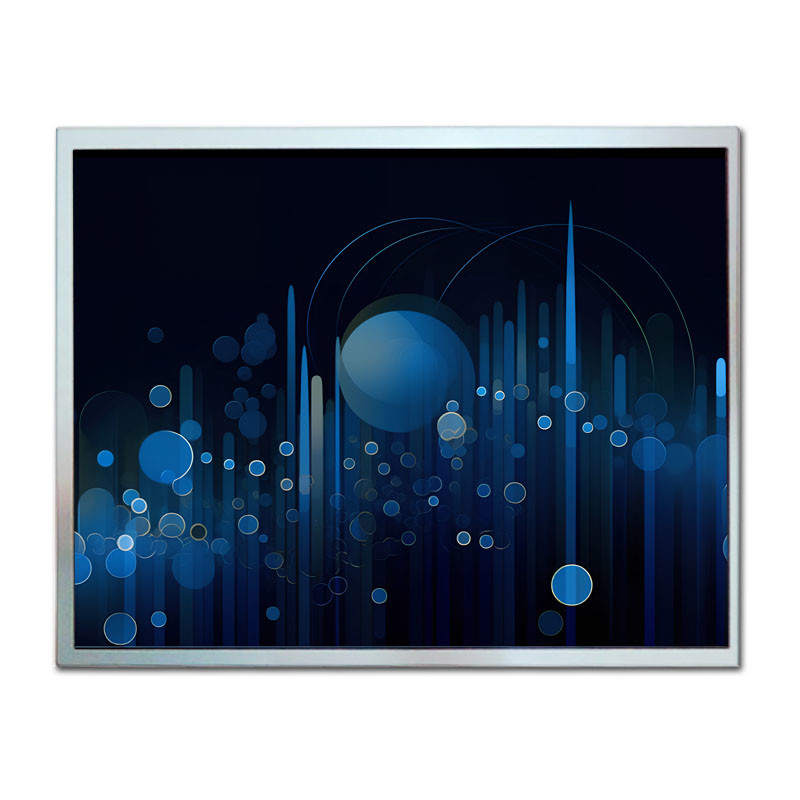

12.1 inch AA121XL01 Mitsubishi LVDS LCD Display with Long LED Lifetime for Industrial Screen
| Mitsubishi AA121XL01 Application Features | ||||
| Basic Information : | Brand | Model 1 Compatible | Type | Model Alias |
| Mitsubishi | AA121XL01 | a-Si TFT-LCD , LCM | T-55566D121J-LW-A-AAN | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| Yes | -30 ~ 80 °C | -30 ~ 80 °C | - | |
| Designed For : | Industrial, Outdoor brightness | |||
| Specific Features : | Wide Temperature, Ultra High Brightness, Wled Backlight, Life≥100k hours,180︒Reverse | |||
| Remarks : | NCM | |||
 Mitsubishi AA121XL01 Mechanical Features |
||||
| Panel Size : | 12.1 inch | |||
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.080×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 245.76×184.32 mm | 249.0×187.5 mm | 260.5×203 mm | 9.7 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (6-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 610g (Typ.) | Antiglare, Hard coating (3H) | ||
 Mitsubishi AA121XL01 Optical Features |
||||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio | |
| 1000 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | ||
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | ||
| 80/80/60/80 (Typ.)(CR≥10) | 6 o'clock | 6/19 (Typ.)(Tr/Td) (ms) | ||
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity | |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | ||
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage | |
| 39% | 55% | 41% | ||
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | ||
| 41% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | ||
| Luminance Variation : | 1.30 (Max.)(5 points) | |||
| Performance : | 3D Type | Outdoor Visibility | Reflectance | |
| - | Sunlight Readable | - | ||
Featuring TN viewing direction and a viewing angle of 80/80/60/80, this display provides clear and vivid images even in challenging lighting conditions. The outline dimension of 260.5×203 mm×9.7 mm and active area of 245.76×184.32 mm make it a compact and space-saving solution for various industrial and automotive applications.
With a storage temperature range of -30 ~ 80 °C, this display can withstand extreme temperatures, making it a reliable choice for use in harsh environments. Its rugged construction can withstand shocks, vibrations, and other physical stresses, ensuring reliable performance in even the toughest conditions.
Whether you need a rugged and durable display for industrial applications or a reliable vehicle LCD display for use in tough environments, the Mitsubishi LCD Display is an excellent choice. With its exceptional performance, durability, and reliability, this display is sure to meet your needs and exceed your expectations.
One of the main selling points of this display is its durability. It's designed to withstand tough environments, making it an ideal choice for military applications. The AA121XL01 is also an excellent choice for industrial applications, where ruggedness and reliability are essential.
Another key feature of the AA121XL01 is its LVDS display technology. This technology provides high-speed data transfer, making it ideal for applications that require fast data processing. The display also has a viewing angle of 80/80/60/80, which makes it easy to view from different angles.
The AA121XL01 has a resolution of 1024×768, which ensures that images and text are clear and easy to read. This makes it ideal for applications where visual clarity is important, such as medical devices and industrial machinery.
In summary, the AA121XL01 LCD display from Mitsubishi is an excellent choice for military and industrial applications. Its LVDS display technology, high resolution, and certifications make it a reliable and high-quality option for a wide range of scenarios.
Mitsubishi LCD Displays offer a range of technical support and services, including:
- Troubleshooting assistance for any issues with the display
- Firmware and software updates to improve functionality
- Repair and maintenance services to keep the display in optimal condition
- User manuals and documentation to help with installation and operation
- Technical training and certification programs for professionals
- Customized solutions and consultations for specific needs and applications
Product Name: Mitsubishi LCD Display
Product Description: High-quality LCD display with advanced features for clear and crisp image display.
