Product Details
Place of Origin: Shenzhen, China
Brand Name: Mitsubishi
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: AC150XA01
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1024×768 |
Brightness (cd/m²): |
450 |
Active Area: |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5 × 253.5 × 12.5 |
Operating Temperature: |
-20 ~ 65 °C |
Storage Temperature: |
0 ~ 65 °C |
Viewing Angle: |
80/80/70/70 |
View Direction: |
TN |
Contrast Ratio: |
700 |
Interface: |
LVDS 20 |
LED Lifetime (hrs): |
100K |
Size (inch): |
15 |
Resolution: |
1024×768 |
Brightness (cd/m²): |
450 |
Active Area: |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5 × 253.5 × 12.5 |
Operating Temperature: |
-20 ~ 65 °C |
Storage Temperature: |
0 ~ 65 °C |
Viewing Angle: |
80/80/70/70 |
View Direction: |
TN |
Contrast Ratio: |
700 |
Interface: |
LVDS 20 |
LED Lifetime (hrs): |
100K |

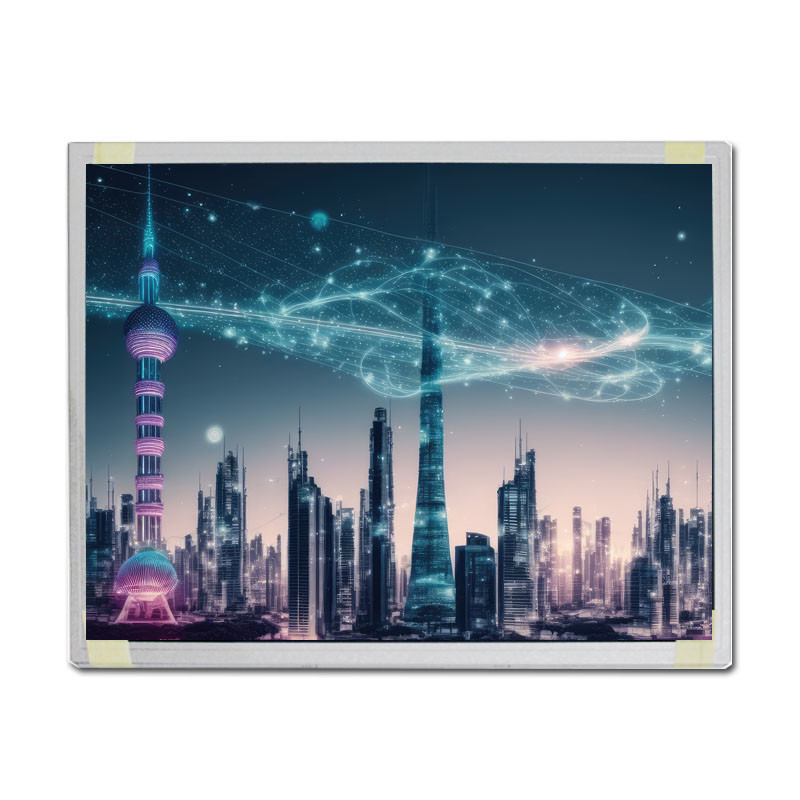

15 inch TFT LCD Display Mitsubishi AC150XA01 Screen with 1024×768 Resolution LVDS 20 Interface
| Brand | Mitsubishi |
| Model P/N | AC150XA01 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline(mm) | 326.5 × 253.5 × 12.5 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Response Time | 2/10 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 63% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 1.05Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 65 °C |
The active area of the display is 304.128×228.096, which provides ample space for displaying images, videos, and other content. The resolution of the display is 1024×768, which ensures that the images and videos are sharp and clear.
Mitsubishi LCD Display features an IPS panel TFT display that offers superior color accuracy and wider viewing angles. The IPS panel technology provides consistent and accurate color reproduction from all viewing angles, making it ideal for applications that require high color accuracy and clarity.
The LED lifetime of the display is 100K hours, which ensures that the display will last for a long time without any issues. The display also features an outline dimension of 326.5 × 253.5 × 12.5, making it compact and easy to install in any industrial or commercial setting.
In summary, the Mitsubishi LCD Display is an industrial LCD with IPS TFT screen technology that offers high-quality images with vibrant colors and a wide viewing angle. The display is ideal for applications that require high color accuracy and clarity, and its compact size makes it easy to install in any industrial or commercial setting.
| Product Attribute | Value |
| Product | Industrial TFT Display |
| Size (inch) | 15 |
| Resolution | 1024×768 |
| Brightness (cd/m²) | 450 |
| Contrast Ratio | 700 |
| Viewing Direction | TN |
| Active Area (W*H) | 304.128×228.096 |
| Interface | LVDS 20 |
| Operating Temperature | -20 ~ 65 °C |
| Storage Temperature | 0 ~ 65 °C |
| LED Lifetime (hrs) | 100K |
The AC150XA01 is a versatile product that can be used in a variety of scenarios and occasions. The minimum order quantity is only one piece, making it ideal for small projects, while the supply ability of 500,000 pieces per day ensures that it is suitable for larger projects as well.
The Mitsubishi LCD Display product is perfect for a range of applications. Its high resolution of 1024×768 makes it ideal for use in medical equipment, industrial control systems, and automotive applications. The display's LED lifetime of 100k hours ensures that it is long-lasting and reliable, while the brightness of 450 cd/m² makes it easy to read in any lighting conditions.
Whether you need a display for a medical device, industrial application, or automotive system, the Mitsubishi LCD Display product is an excellent choice. Its active area of 304.128×228.096 and storage temperature range of 0 ~ 65°C make it suitable for a range of environments.
- Product manuals and documentation
- Technical assistance and troubleshooting
- Repair and maintenance services
- Firmware and software updates
- Warranty support
Our experienced support team is dedicated to providing timely and effective solutions to any issues or concerns you may have with your Mitsubishi LCD display. Contact us for further assistance.
