Product Details
Place of Origin: Shenzhen, China
Brand Name: MQ
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 92.07007-001
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7.0 |
Resolution: |
1024x600 |
Active Area (W*H): |
154.21(W)x85.92(H) |
Outline Dimension (W*H*T): |
163.8(W)x96.8(H)X2.3(T) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-20℃~70℃ |
Size (inch): |
7.0 |
Resolution: |
1024x600 |
Active Area (W*H): |
154.21(W)x85.92(H) |
Outline Dimension (W*H*T): |
163.8(W)x96.8(H)X2.3(T) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-20℃~70℃ |
Product Technical Parameters
| Diagonal Size | 7” | Touch Panel Optional | Yes |
| Display Format | 1024x600 Pixels | Contrast Ratio(Typ) | 800 |
| Interface | HDMI | Viewing Direction | ALL |
| IC or Equivalent | Viewing Angle Range | Left:80 , Right:80 , Up:80 , Down:80 degree | |
| Connection | Plug-in FPC | Brightness(Typ) | 500cd/m2 |
| Outline Dimension | 163.8(W)x96.8(H)X2.3(T)mm | Operating Temperature | -20℃~70℃ |
| Active Area | 154.21(W)x85.92(H)mm | Storage Temperature | -30℃~80℃ |
Product description

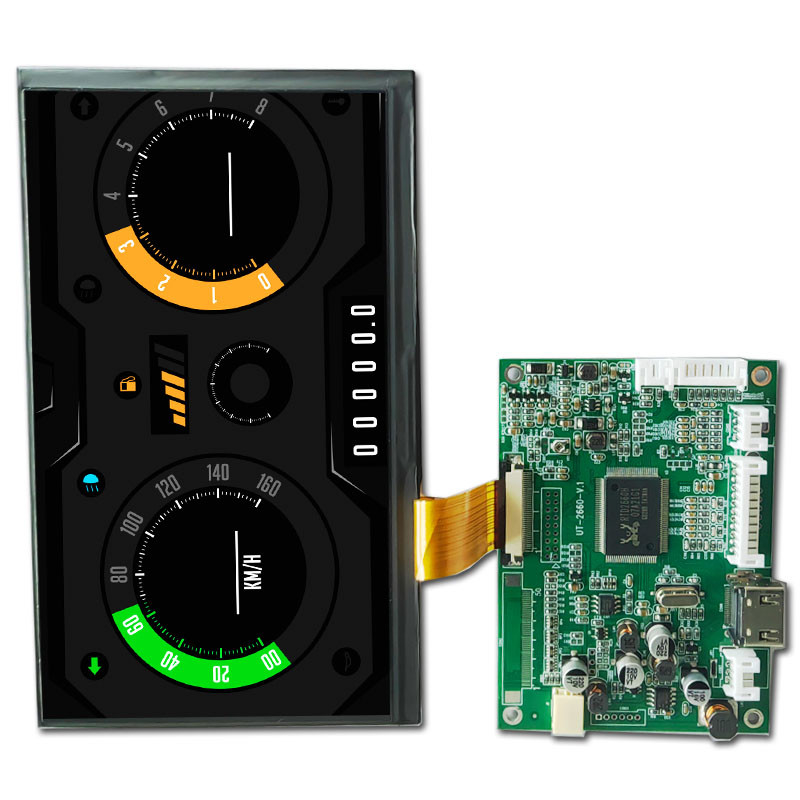

The 90-07007-001 is a 7" Industrial LCD Display of remarkable versatility, featuring a resolution of 1024x600 pixels and coming with a HDMI/VGA signal driver board. For enhanced functionality, it offers the choice of an optional touch panel, which includes a 4-wire resistive touch panel with a USB driver board and cable, or a capacitive touch panel with a USB controller board and cable.
Designed to provide superior image quality, this display offers full viewing angles, making it a perfect choice for a variety of applications such as embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high-quality video output is of great importance. Its compatibility with Raspberry Pi via HDMI increases its flexibility, supporting operating systems like Raspbian, Ubuntu, and Windows 10 IoT. Moreover, the display supports multi-touch and is driver-free, ensuring easy integration.
Beyond its application with Raspberry Pi, the 90-07007-001 can act as a computer display, being compatible with Windows 11, 10, 8, and 7. Its driver-free functionality and multi-touch capabilities make it a convenient display solution that is suitable for a broad range of applications.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
