Product Details
Place of Origin: Shenzhen, China
Brand Name: MQ
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 92-07027-IH1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7.0 |
Resolution: |
1024x600 |
Active Area (W*H): |
154.08(W)x85.92(H) |
Outline Dimension (W*H*T): |
164.9(W)x100(H)X5.7(T) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-35℃~85℃ |
Size (inch): |
7.0 |
Resolution: |
1024x600 |
Active Area (W*H): |
154.08(W)x85.92(H) |
Outline Dimension (W*H*T): |
164.9(W)x100(H)X5.7(T) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-35℃~85℃ |
Product Technical Parameters
| Diagonal Size | 7” | Touch Panel Optional | Yes |
| Display Format | 1024x600 Pixels | Contrast Ratio(Typ) | 800 |
| Interface | HDMI | Viewing Direction | 12 |
| IC or Equivalent | - | Viewing Angle Range | Left:70 , Right:70 , Up:70 , Down:60 degree |
| Connection | Plug-in FPC | Brightness(Typ) | 500 cd/m2 |
| Outline Dimension | 164.9(W)x100(H)X5.7(T)mm | Operating Temperature | -35℃~85℃ |
| Active Area | 154.08(W)x85.92(H)mm | Storage Temperature | -40℃~90℃ |
Product description

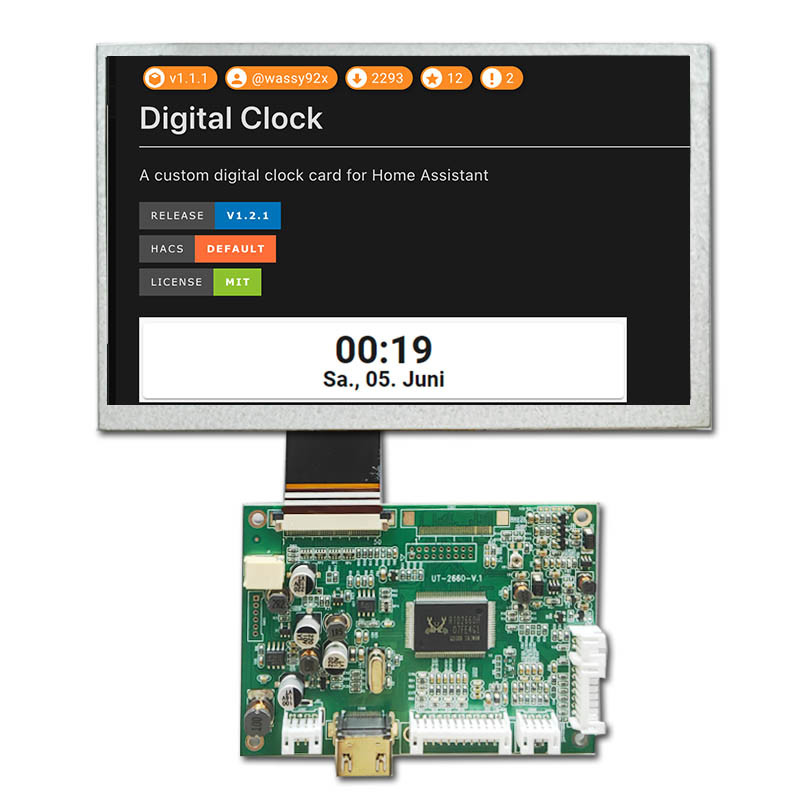

The 90-07027-IH1 is a highly versatile 7" HDMI LCD Panel.
1. Display Specifications
2. Touch Panel Options
3. Image Quality and Applications
4. Compatibility with Raspberry Pi
5. Compatibility as a Computer Display
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
