Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX CHIMEI
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G070ACE-L01
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7 |
Resolution: |
800*480 |
Luminance(nits): |
500 |
Operating Temperature: |
-30℃～85℃ |
Storage Temperature: |
-40 ~ 90 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Active Area (W*H): |
152.4*91.44 |
Outline Dimension (W*H*T): |
168*107.7*6.0 |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
800 |
Size (inch): |
7 |
Resolution: |
800*480 |
Luminance(nits): |
500 |
Operating Temperature: |
-30℃～85℃ |
Storage Temperature: |
-40 ~ 90 °C |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Active Area (W*H): |
152.4*91.44 |
Outline Dimension (W*H*T): |
168*107.7*6.0 |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
800 |

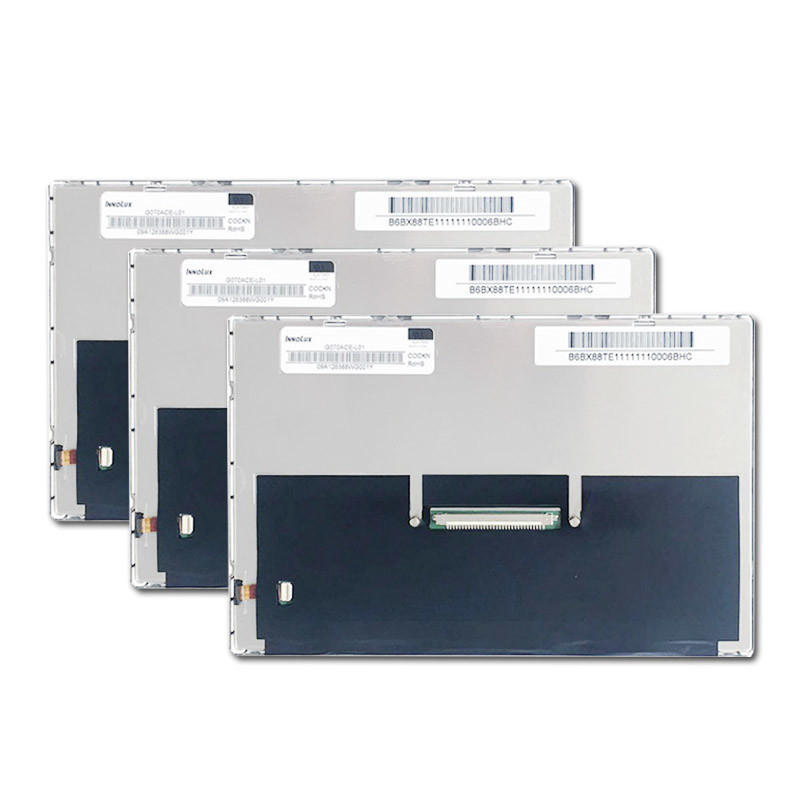

7 inch 800*480 Resolution CHIMEI G070ACE-L01 Display with 500 nits Luminance TFT LCD
| Chimei G070ACE-L01 Optical Details | ||||
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)((CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.315 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6611K | White Variation | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Chimei G070ACE-L01 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0635*0.1905 mm (H*V) | Pixel Pitch (W*H) | 0.1905*0.1905 mm (H*V) [133PPI] | |
| Physical Size : | Active Viewing(mm) | 152.4*91.44 mm (H*V) | Bezel Area (mm) | 154.4*93.44 mm (H*V) |
| Outline Dim.(mm) | 170*110 mm (H*V) | Depth(mm) | 6.0/8.85 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 183±9g | Surface | Antiglare, Hard coating (3H) |
The INNOLUX LCD Display has a long LED lifetime of 50,000 hours, making it a highly durable product that can withstand continuous usage. the display has an operating temperature range of -30℃ to 85℃, which means that it can function seamlessly in harsh environments without any performance issues.
The display also has a storage temperature range of -40 to 90 °C, which ensures that its performance is not affected even when it is stored in extreme temperatures.
The INNOLUX LCD Display has an interface of LVDS 30, which makes it compatible with a wide range of devices. This makes it an ideal choice for a variety of applications, including industrial automation, medical equipment, and transportation systems. Additionally, the display has a high resolution, which ensures that the images displayed are of the highest quality.
With a minimum order quantity of just one piece, this display panel is perfect for both small and large-scale projects. Please contact us for the latest price, as it is subject to change depending on the current market conditions.
The INNOLUX G070ACE-L01 display panel features an LVDS 30 interface, making it compatible with a wide range of devices and systems. With a luminance of 500 nits, this display panel is bright and clear, even in challenging lighting conditions. The LED lifetime of 50,000 hours ensures that it will last for years without any issues.
The storage temperature range of -40 to 90 °C makes it suitable for use in a wide range of environments. The 7-inch size is perfect for applications where space is limited, and the display panel itself is easy to install and use.
In summary, if you are looking for a reliable and high-quality industrial TFT LCD panel, the INNOLUX G070ACE-L01 display panel is an excellent choice. Its certifications, high supply ability, and compatibility with a wide range of systems make it a top choice for industrial applications. Contact us today to learn more about this display panel and how it can benefit your project.
Our INNOLUX LCD Display product comes with comprehensive technical support and services to ensure the best performance and experience for our customers. Our team of experts provides assistance with installation, troubleshooting, and maintenance of the product. We also offer customized solutions to meet specific requirements. In addition, we provide regular software updates and firmware upgrades to improve the functionality and compatibility of the product with the latest technologies. Our technical support and services aim to minimize downtime and ensure the smooth operation of the INNOLUX LCD Display product.
Product Packaging:
Shipping:
| Chimei Innolux G070ACE-L01 Carton Details | |||
| Package Box : | Amount | Weight | Size (L*W*H) |
| 38 pcs / box | 8.30 Kgs | 455*370*275 mm | |
