Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G101ICE-LH1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
10.1 |
Resolution: |
1280*800 |
Luminance(nits): |
500 |
Storage Temperature: |
-40 ~ 85 °C |
Operating Temperature: |
-30℃～80℃ |
Active Area (W*H): |
216.96 * 135.6 |
Outline Dimension (W*H*T): |
230.7*152.55*6.5 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Contrast Ratio: |
800 |
LED Lifetime (hrs): |
50K |
Size (inch): |
10.1 |
Resolution: |
1280*800 |
Luminance(nits): |
500 |
Storage Temperature: |
-40 ~ 85 °C |
Operating Temperature: |
-30℃～80℃ |
Active Area (W*H): |
216.96 * 135.6 |
Outline Dimension (W*H*T): |
230.7*152.55*6.5 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Contrast Ratio: |
800 |
LED Lifetime (hrs): |
50K |

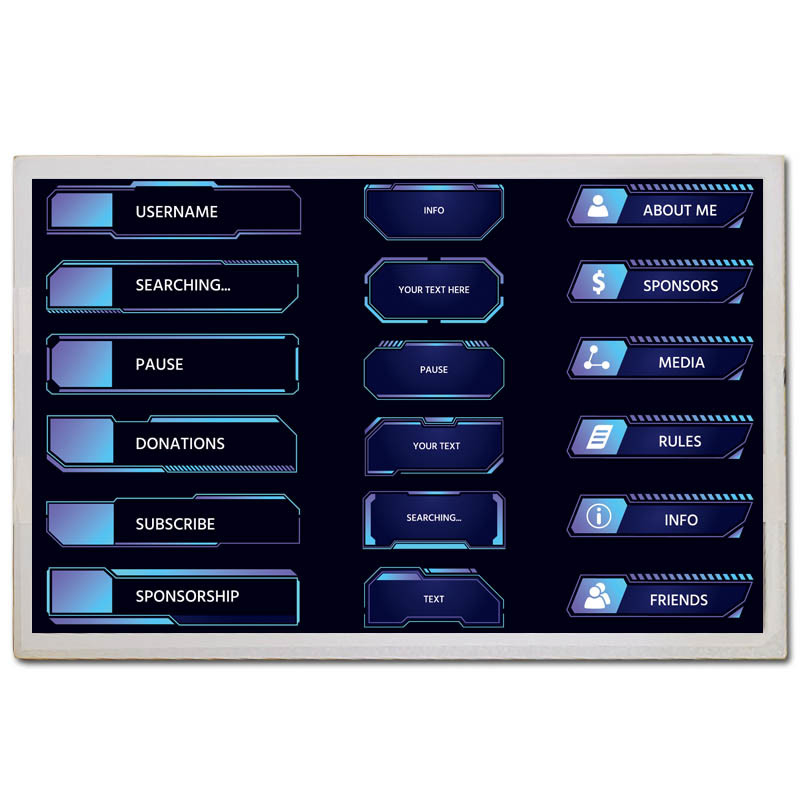

G101ICE-LH1 IPS LCD Display with Wide Temperature Range High Brightness Innolux Panel
| Innolux G101ICE-LH1 Mechanical Details | ||||
| Pixel Features : | Resolution | 1280(RGB)×800 [WXGA] | Dot Pitch(mm) | 0.0565×0.1695 mm |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Active Area(mm) | 216.96(W)×135.6(H) mm | Overall Dim. | 230.7(W)×152.55(H) mm |
| Bezel Opening | 218.96(W)×137.6(H) mm | Depth(mm) | 6.5±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 300/315g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Innolux G101ICE-LH1 Optical Details | ||||
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
The INNOLUX LCD Display is made by a reputable LCD display manufacturer, and you can rest assured that you're getting a quality product. This display is designed for use in industrial display panels, making it perfect for use in a variety of settings. Whether you're using it in a factory, warehouse, or any other industrial setting, this display is sure to meet your needs.
This display also features an edp display interface, which allows for high-speed data transfer between the display and other devices. This is perfect for those who need a display that can keep up with their demands. With this display, you'll be able to get the job done quickly and efficiently.
The INNOLUX G101ICE-LH1 has a size of 10.1 inches and a viewing angle of 88/88/88/88 (RLUD). The contrast ratio of this display is 800, and it has a long LED lifetime of 50,000 hours. The outline dimension of this display panel is 230.7 x 152.55 x 6.5 mm.
The G101ICE-LH1 is an ideal medical TFT display panel because it has been certified to meet various medical standards. It is perfect for use in medical instruments where a high-quality display module is necessary.
If you are looking for a reliable INNOLUX display panel, the G101ICE-LH1 is a great choice. It is a high-quality TFT LCD module that is perfect for a range of applications, including medical instruments.
Our INNOLUX LCD Display product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with any inquiries related to the product's installation, operation, and troubleshooting. In addition, we offer firmware updates and software customization services to meet the unique needs of our customers.
Our services also include quality control and testing, as well as product certification to ensure compliance with industry standards and regulations. We provide reliable logistics and shipping services to ensure prompt delivery of our products to our customers worldwide. Our customer service team is available to assist with any inquiries related to order placement, delivery, and after-sales support.
Product Packaging:
The INNOLUX LCD Display product is packaged in a sturdy cardboard box with foam inserts to protect the display during shipping. The box is labeled with the product name and specifications for easy identification.
Shipping:
The INNOLUX LCD Display product is shipped using a reputable courier service such as FedEx or DHL. The product is insured during shipping to protect against any damage that may occur. Customers will receive a tracking number upon shipment so they can track the delivery status of their order.
Innolux G101ICE-LH1 Carton Details |
|||
| Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
| 28 | 435×350×275 | 12.02 | |
