Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G101ICE-LM1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Resolution: |
1280*800 |
Size (inch): |
10.1 |
Luminance(nits): |
350 |
Active Area (W*H): |
216.96 * 135.6 |
Outline Dimension (W*H*T): |
227.42*147.69*4.35 |
Operating Temperature: |
-10℃~60 ℃ |
Storage Temperature: |
-20 ~ 70 °C |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Interface: |
LVDS 30 |
Contrast Ratio: |
800 |
Resolution: |
1280*800 |
Size (inch): |
10.1 |
Luminance(nits): |
350 |
Active Area (W*H): |
216.96 * 135.6 |
Outline Dimension (W*H*T): |
227.42*147.69*4.35 |
Operating Temperature: |
-10℃~60 ℃ |
Storage Temperature: |
-20 ~ 70 °C |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Interface: |
LVDS 30 |
Contrast Ratio: |
800 |

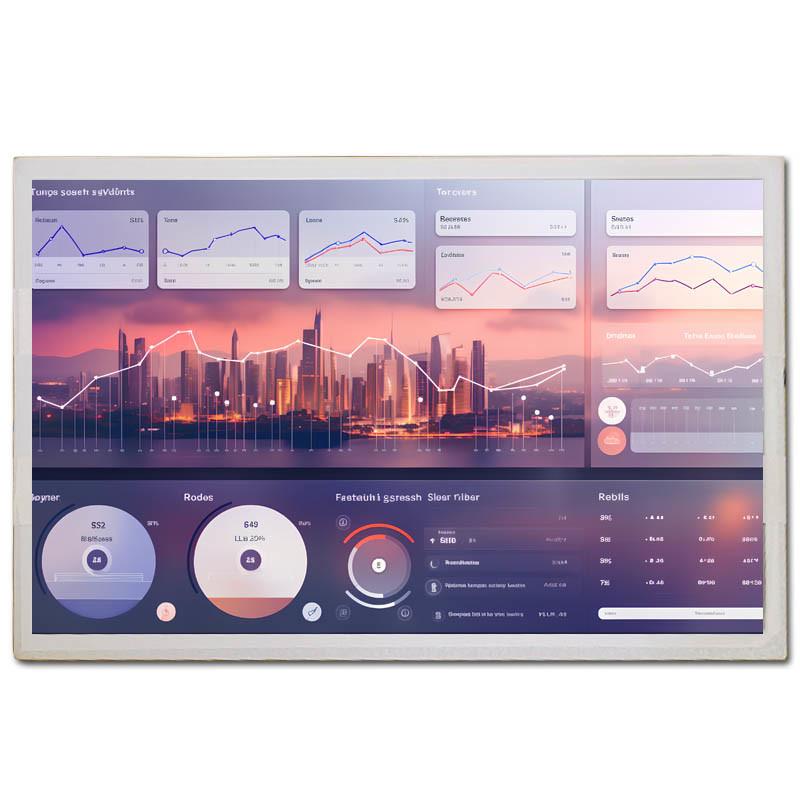

10.1 inch Automotive Display G101ICE-LM1 Innolux LCD with 1280*800 High Resolution
| Innolux G101ICE-LM1 Mechanical Details | ||||
| Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 (H×V) [149PPI] | |
| Mechanical Size : | Active Area(mm) | 216.96(H) × 135.6(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 227.42(H) × 147.69(V) | Depth(mm) | 2.55/2.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec: | Weight | 183/190g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Innolux G101ICE-LM1 Optical Details | ||||
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 66% | sRGB | 91% coverage |
| Adobe RGB | 69% coverage | DCI-P3 | 69% coverage | |
| Rec.2020 | 50% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
The INNOLUX LCD Display features an LCD backlight that provides a bright and even display. With a luminance of 350 nits, it is capable of producing clear and vivid images, making it an ideal choice for industrial applications that require high-quality visuals.
In terms of design, the INNOLUX LCD Display has an outline dimension of 227.42*147.69*4.35, making it a compact and space-saving display solution. Its slim profile also makes it easy to integrate into various industrial applications without taking up too much space.
The INNOLUX LCD Display also boasts an impressive viewing angle of 88/88/88/88 RLUD, ensuring that users can view the display from virtually any angle without any loss in visual quality. This makes it perfect for industrial applications where users need to view the display from different angles.
The INNOLUX LCD Display is also designed to operate in a wide range of temperature conditions. It has an operating temperature range of -10℃ to 60 ℃, making it suitable for use in various industrial environments.
The INNOLUX G101ICE-LM1 LCD Display Panel can be used in various medical TFT display applications. With its high luminance of 350 nits and IPS viewing direction, the display panel provides clear and accurate image and video quality, making it ideal for medical imaging, patient monitoring, and other medical applications. Additionally, the product is certified with ANSI/AAMI ES60601-1-2, which ensures that the product meets the medical safety standards.
The INNOLUX G101ICE-LM1 LCD Display Panel can also be used in various industrial LCD applications. With its rugged design and operating temperature range of -10℃~60℃, the display panel can be used in harsh industrial environments. The product's active area of 216.96 * 135.6, contrast ratio of 800, and high luminance of 350 nits make it ideal for outdoor displays, transportation displays, and other industrial applications.
INNOLUX provides technical support and services for their LCD Display products. This includes:
INNOLUX strives to provide high-quality technical support and services to ensure customer satisfaction and product success.
Innolux G101ICE-LM1 Packing Details |
|||
| Package Box : | Quantity | Weight | Box Size |
| 28 pcs / box | 12.0 Kgs | 435×350×275 mm (L×W×H) | |
