Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G104XCE-LH1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
10.4 |
Resolution: |
1024*768 |
Brightness (cd/m²): |
1000 |
Operating Temperature: |
-30℃～85℃ |
Storage Temperature: |
-30℃～85℃ |
Active Area (W*H): |
210.4*157.8 |
Outline Dimension (W*H*T): |
225.5*176.3*8.7 |
Viewing Angle(RLUD): |
88/88/88/88 |
View Direction: |
IPS |
Interface: |
LVDS 30 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50k |
Size (inch): |
10.4 |
Resolution: |
1024*768 |
Brightness (cd/m²): |
1000 |
Operating Temperature: |
-30℃～85℃ |
Storage Temperature: |
-30℃～85℃ |
Active Area (W*H): |
210.4*157.8 |
Outline Dimension (W*H*T): |
225.5*176.3*8.7 |
Viewing Angle(RLUD): |
88/88/88/88 |
View Direction: |
IPS |
Interface: |
LVDS 30 |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50k |

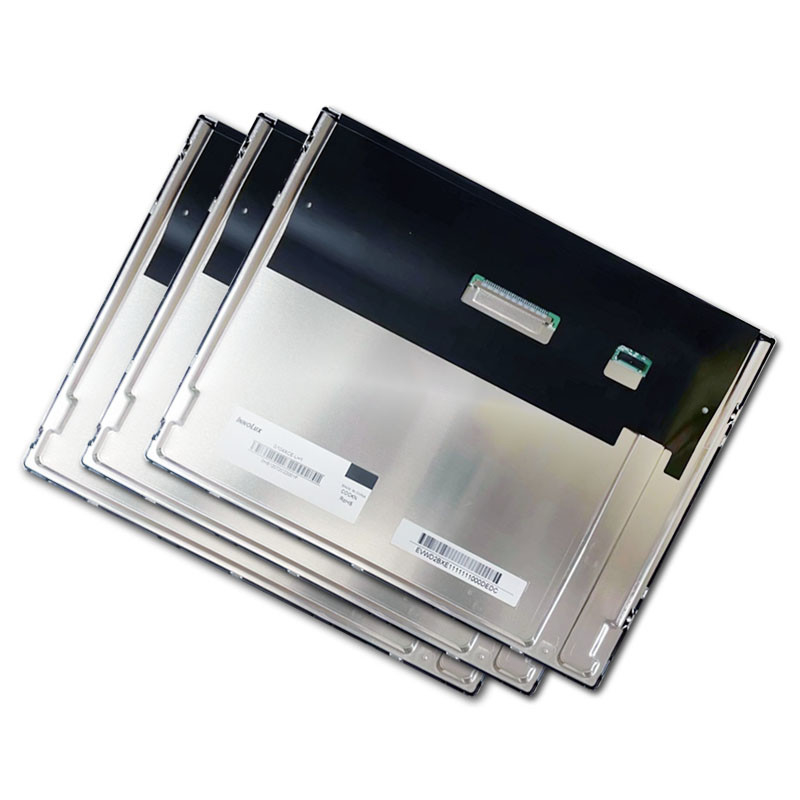

INNOLUX G104XCE-LH1 High Brightness LCD Display with 30 pin LVDS Interface TFT Display Module
| Innolux G104XCE-LH1 Mechanical Details | ||||
| Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] | |
| Mechanical Size : | Display Area | 210.4×157.8 mm (H×V) | Bezzel Dim. | 215.4×161.8 mm (H×V) |
| Outline Dim. | 225.5×176.3 mm (H×V) | Outline Depth | 8.0/9.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 320/335g (Typ./Max.) | Surface | Antiglare |
| Innolux G104XCE-LH1 Optical Details | ||||
| Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.39 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
But that's not all. The INNOLUX LCD Display product is also designed to withstand extreme temperatures, with an operating range of -30℃～85℃.
it an ideal choice for use in a wide range of applications, from industrial machinery to outdoor signage.
So if you're looking for a high brightness LCD display that delivers outstanding performance in all conditions, look no further than the INNOLUX LCD Display product. With its superior image quality, wide viewing angle, and rugged design, it's the perfect choice for any project that demands the very best.
Our INNOLUX LCD Display products come with a comprehensive technical support and services package to ensure that our customers get the most out of their displays. Our team of experts are available to provide guidance on installation, troubleshooting, and maintenance of the products. We also offer customization services to tailor the display to meet specific requirements. In addition, we provide firmware updates and product documentation to ensure that our customers are always up-to-date. Our goal is to provide reliable and efficient support to help our customers achieve their business objectives.
Product Packaging:
Shipping:
| Innolux G104XCE-LH1 Carton Details | |||
| Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
| 24 | 490×350×320 | 13.1 | |
