Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G150XNE-L01
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
500 |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*9.6 |
Operating Temperature: |
-30℃～80℃ |
Storage Temperature: |
-40 ~ 85 °C |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Contrast Ratio: |
2500 |
Interface: |
LVDS 20 |
LED Lifetime (hrs): |
70K |
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
500 |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*9.6 |
Operating Temperature: |
-30℃～80℃ |
Storage Temperature: |
-40 ~ 85 °C |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
Contrast Ratio: |
2500 |
Interface: |
LVDS 20 |
LED Lifetime (hrs): |
70K |

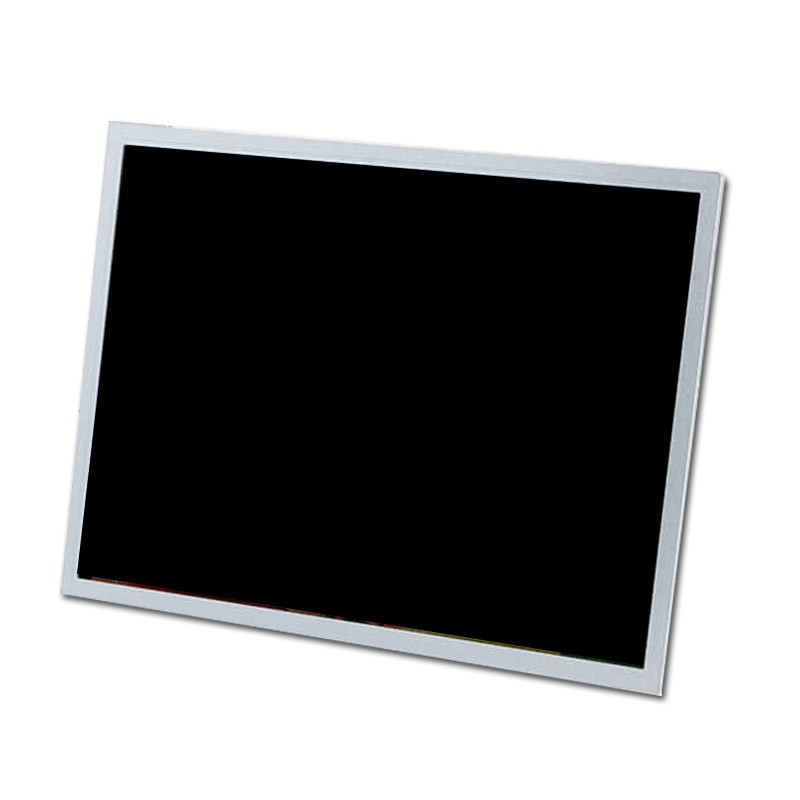

1024*768 Resolution 15 inch G150XNE-L01 INNOLUX IPS LCD Display with 500 nits Luminance
| Brand | Innolux |
| Model P/N | G150XNE-L01 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Dim. | 326.5(H)×253.5(V) ×9.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 72% NTSC |
| Weight | 0.97/1.00Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 2500:1 (Typ.) (TM) |
| Response Time | 13/5 (Typ.)(Tr/Td) |
| Operating Mode | NPVA, Normally Black, Transmissive |
| Light Source | WLED , 70K hours , With LED Driver |
| Touch Panel | Without |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
This particular LCD display boasts a luminance of 500 nits, which makes it ideal for use in environments with high ambient light, such as outdoor settings or brightly lit rooms. With an outline dimension of 326.5mm x 253.5mm x 9.1mm, it is compact and lightweight, making it easy to integrate into a variety of systems and devices.
The viewing direction of this display is IPS, which stands for In-Plane Switching. This technology allows for a wider viewing angle and better color accuracy compared to traditional TN (Twisted Nematic) displays, making it perfect for applications that require precise color reproduction and viewing from different angles.
In summary, the INNOLUX LCD Display is a high-quality display panel that offers a bright, clear image, precise color reproduction, and a wide viewing angle. Its compact size and lightweight design make it easy to integrate into various systems and devices, while its high performance and durability make it ideal for use in military LCD displays and other demanding applications.
The G150XNE-L01 is suitable for a wide range of product application occasions and scenarios. Its high brightness LCD makes it perfect for outdoor use, such as in ATMs, kiosks, and outdoor advertising displays. It is also ideal for indoor use, such as in medical equipment, industrial automation, and gaming machines. This LCD display is versatile and can be used in many different industries and applications.
The G150XNE-L01 LCD display has an operating temperature range of -30℃～80℃ and can be stored in temperatures ranging from -40 ~ 85 °C. This makes it suitable for use in harsh environments and ensures that it can withstand extreme temperatures.
INNOLUX provides technical support and services for their LCD Display products to ensure optimal performance and customer satisfaction. Some of the services offered include:
- Product selection and customization
- Design and engineering support
- On-site technical support and troubleshooting
- Product training and education
- Warranty and repair services
- Continuous product improvement and development
