Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G150XNE-L03
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
300 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～70℃ |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*9.1 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
LED Lifetime (hrs): |
70K |
Interface: |
LVDS 20 |
Contrast Ratio: |
2000 |
Size (inch): |
15 |
Resolution: |
1024*768 |
Luminance(nits): |
300 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～70℃ |
Active Area (W*H): |
304.1*228.1 |
Outline Dimension (W*H*T): |
326.5*253.5*9.1 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
88/88/88/88 |
LED Lifetime (hrs): |
70K |
Interface: |
LVDS 20 |
Contrast Ratio: |
2000 |

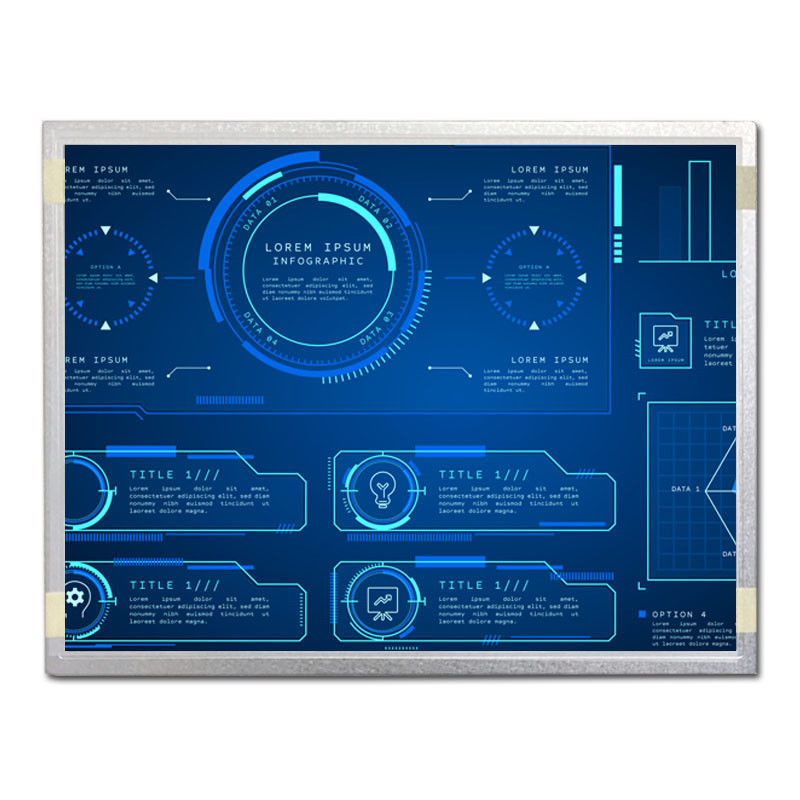

15 inch G150XNE-L03 Innolux Panel Military Displays with 70K LED Lifetime Resolution 1024*768
| Chimei Innolux G150XNE-L03 Application Details | ||||
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G150XNE-L03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15” | Designed For | Industrial,Game | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,Life>=70K hours,With LED Driver,Upside I/F,180°;Reverse,6/8bit,Matte | |||
| Chimei Innolux G150XNE-L03 Optical Details | ||||
| Basic Information : | Luminance | 300 cd/m²(Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/5 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | NPVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Chimei Innolux G150XNE-L03 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 mm (H*V) | Pixel Pitch | 0.297*0.297 mm (H*V) [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128*228.096 mm (H*V) | Bezel Area | 307.4*231.3 mm (H*V) |
| Outline Dim. | 326.5*253.5 mm (H*V) | Depth(mm) | 9.1+0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 0.96/1.00Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
The INNOLUX LCD display has a resolution of 1024*768, which provides clear and visible images. The contrast ratio of 2000 ensures that the colors and details in the images are sharp and vivid. This makes it an ideal choice for applications that require high-quality visuals, such as medical displays, military LCDs, and more.
This industrial TFT display can be used in various scenarios, including military LCD applications, where it can withstand harsh environments. It is also suitable for use in industrial touch screen monitor applications, where it can provide reliable and accurate touch input. The INNOLUX G150XNE-L03 LCD Display can be used in manufacturing facilities, where it can display critical information, such as inventory levels and production metrics.
The INNOLUX G150XNE-L03 LCD Display is a high-quality industrial TFT display that can be used in various applications. Its certifications, active area, and viewing angle make it suitable for use in military LCD applications, industrial touch screen monitor applications.
INNOLUX provides comprehensive technical support and services for their LCD display products. This includes:
INNOLUX also offers a variety of value-added services, such as:
| Chimei Innolux G150XNE-L03 Carton Details | |||
| Package Box : | Amount | Weight | Size (L*W*H) |
| 16pcs / box | 18 Kgs | 511*420*360 mm | |
Product Packaging:
Shipping:
