Product Details
Place of Origin: Shenzhen, China
Brand Name: INNOLUX
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G156BGE-L03
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15.6 |
Resolution: |
1366*768 |
Brightness (cd/m²): |
500 |
Active Area (W*H): |
344.2 * 193.5 |
Outline Dimension (W*H*T): |
363.8*215.9*9.3 |
Operating Temperature: |
-0℃～60℃ |
Storage Temperature: |
-20℃～60℃ |
Viewing Angle(RLUD): |
80/80/80/80 |
View Direction: |
TN |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
600 |
Size (inch): |
15.6 |
Resolution: |
1366*768 |
Brightness (cd/m²): |
500 |
Active Area (W*H): |
344.2 * 193.5 |
Outline Dimension (W*H*T): |
363.8*215.9*9.3 |
Operating Temperature: |
-0℃～60℃ |
Storage Temperature: |
-20℃～60℃ |
Viewing Angle(RLUD): |
80/80/80/80 |
View Direction: |
TN |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
600 |

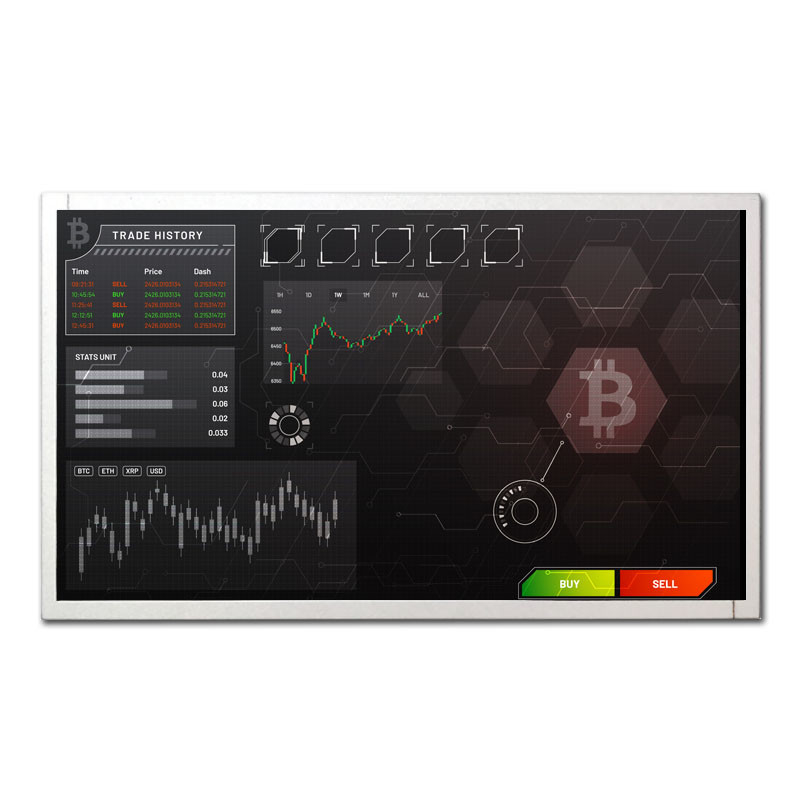

15.6 inch G156BGE-L03 INNOLUX 1366 x 768 Resolution LCD Display with 500 nits High Brightness
| Chimei Innolux G156BGE-L03 Application Details | ||||
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G156BGE-L03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15.6” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s² ) | |
| Features : | WLED Backlight, Life>=50K hours,With LED Driver,Upside I/F,Matte | |||
| Chimei Innolux G156BGE-L03 Optical Details | ||||
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3/8 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 88% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 66% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Chimei Innolux G156BGE-L03 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1366(RGB)*768, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.084*0.252 mm | Pixel Pitch (W×H) | 0.252*0.252 mm [100PPI] | |
| Physical Size : | Active Viewing(mm) | 344.232(W)*193.536(H) mm | Bezel Area (mm) | 347.53(W)*196.84(H) mm |
| Outline Dim.(mm) | 363.8(W)*215.92(H) mm | Depth(mm) | 9.3±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes, Rear mounting holes | |||
| Other Spec : | Weight | 720/755g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
With a size of 15.6 inches, this display is large enough to provide clear and detailed images, yet compact enough to fit into a wide range of applications. Boasting a luminance of 500 nits, the INNOLUX LCD Display delivers bright, vibrant colors that are sure to catch the eye of anyone who sees it. And with an LED lifetime of 50,000 hours, you can be sure that this display will last for years to come.
And with its LVDS 30 interface, it is compatible with a wide range of devices, making it a versatile choice for any business or organization.
Whether you're looking for a display for your factory floor, warehouse, or military operation, the INNOLUX LCD Display is the perfect choice. With its rugged construction, advanced features, and exceptional durability, it is sure to provide you with years of reliable service.
INNOLUX G156BGE-L03 is suitable for various product application occasions and scenarios. This high brightness LCD display can be used in outdoor kiosks, digital signage, and other outdoor applications where the display needs to be visible even in bright sunlight. It is also suitable for indoor applications such as gaming machines, medical equipment, and industrial control systems.
This IPS TFT LCD display has a wide operating temperature range from -0℃ to 60℃ and a storage temperature range from -20℃ to 60℃, making it suitable for use in various environments.
Our INNOLUX LCD Display product comes with the following technical support and services:
- On-site technical support
- Online technical support
- Repair services
- Replacement services
- Warranty services
- Product training and education
- Product customization and design services
- Product testing and certification services
| Chimei Innolux G156BGE-L03 Carton Details | |||
| Package Box : | Amount | Weight | Size (L*W*H) |
| 13pcs / box | 12.0Kgs | 465*362*314 mm | |
