Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: A080XTN01.5
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
8.0 |
Resolution: |
1024(RGB)×768 |
Active Area (W*H): |
162.048(W)×121.536(H) |
Outline Dimension (W*H*T): |
183(W)×141(H) ×3.9(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-10℃-60℃ |
Size (inch): |
8.0 |
Resolution: |
1024(RGB)×768 |
Active Area (W*H): |
162.048(W)×121.536(H) |
Outline Dimension (W*H*T): |
183(W)×141(H) ×3.9(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-10℃-60℃ |

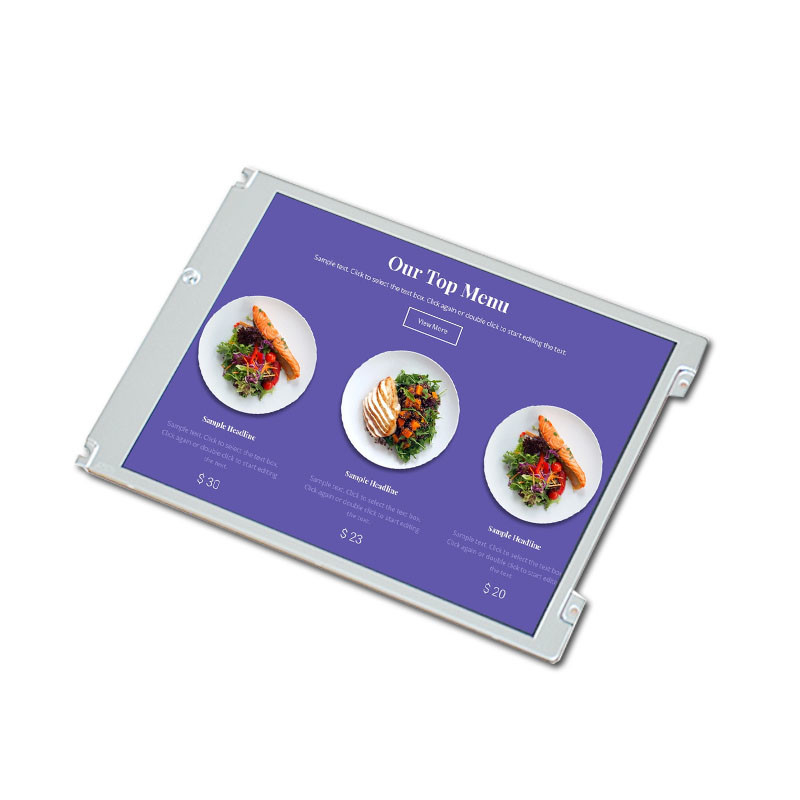

AU Optronics A080XTN01.5 TFT Screen 8 inch 1024*768
| Product parameter | |
| LCD size(inch) | 8 (Diagonal) |
| Number Of Pixels | 1024(RGB)×768 |
| Active Area (W*H) | 162.048(W)×121.536(H) |
| Outline Dimension (W*H*T) | 183(W)×141(H) ×3.9(D) |
| Viewing angle(RLUD) | 70/70/65/65 |
| View Direction | TN |
| Interface | LVDS 40pin |
| Brightness(cd/m²) | 300 |
| LED Lifetime | 15k |
| Contrast Ratio | 700 |
| Operating Temperature | -10℃-60℃ |
| Storage Temperature | -20℃-70℃ |
Product description
The AU Optronics A080XTN01.5 stands as a premium TFT LCD, meticulously crafted to accommodate a wide gamut of applications. It exhibits a resolution of 1024 x 768 pixels, thereby presenting visuals that are both sharp and rich in detail. Embodying a TN (Twisted Nematic) viewing angle, this display is fine-tuned to excel in scenarios where a balance between cost-efficiency and performance is of utmost significance.
Boasting a brightness level of 300 nits, the A080XTN01.5 effortlessly secures favorable visibility across a diverse range of lighting conditions, rendering it apt for utilization both indoors and outdoors. It functions with remarkable proficiency within an operating temperature spectrum spanning from -10 to 60 °C, thereby assuring dependable performance in various environmental settings.
This display harnesses an LVDS interface, which streamlines its seamless incorporation into an extensive assortment of systems and augments its adaptability across multiple applications. Engineered with durability as a core tenet, it flaunts an approximate lifespan of 15,000 hours, thereby vouchsafing long-term reliability and top-notch performance.
As an A-grade product, the A080XTN01.5 pledges exceptional quality and a consistent supply, establishing itself as an outstanding option for industrial applications, consumer electronics, and numerous other sectors. Whether integrated into control panels, medical apparatuses, or other electronic architectures, the AU Optronics A080XTN01.5 serves as a reliable display solution that aligns impeccably with the requisites of modern technology.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
