Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: C084XAN01.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
8.4 |
Resolution: |
1024(RGB)×768 |
Active Area (W*H): |
170.496(W)×127.872(H) |
Outline Dimension (W*H*T): |
199.4(H)×149.4(V) ×10.5(D) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-30℃-80℃ |
Size (inch): |
8.4 |
Resolution: |
1024(RGB)×768 |
Active Area (W*H): |
170.496(W)×127.872(H) |
Outline Dimension (W*H*T): |
199.4(H)×149.4(V) ×10.5(D) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-30℃-80℃ |

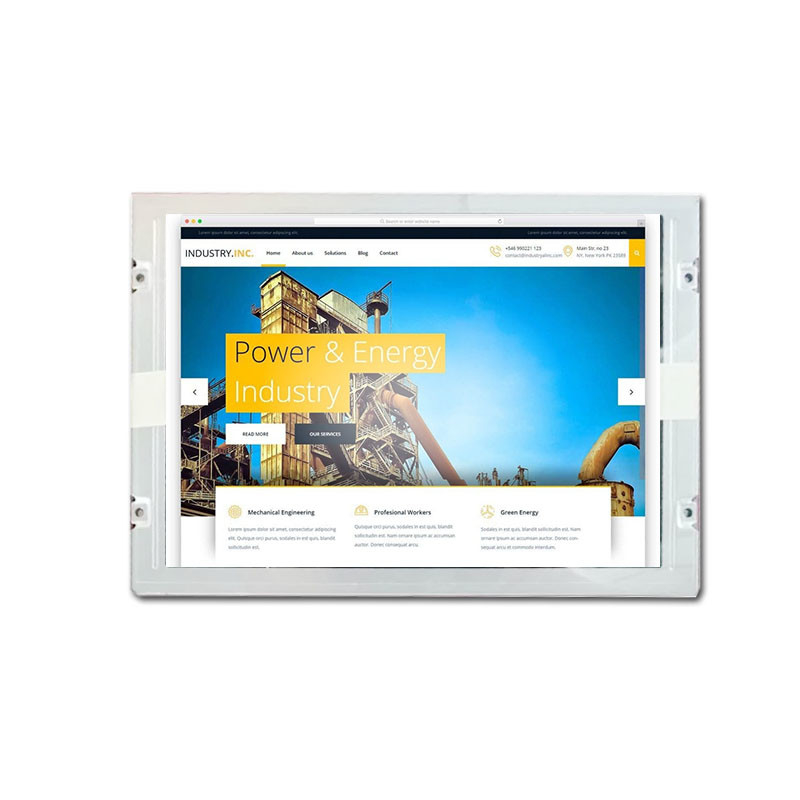

8.4 inch AU Optronics C084XAN01.0 TFT Display 1024*768
| Product parameter | |
| LCD size(inch) | 8.4 (Diagonal) |
| Number Of Pixels | 1024(RGB)×768 |
| Active Area (W*H) | 170.496(W)×127.872(H) |
| Outline Dimension (W*H*T) | 199.4(H)×149.4(V) ×10.5(D) |
| Viewing angle(RLUD) | 89/89/89/89 |
| View Direction | IPS |
| Interface | LVDS 20 Pins |
| Brightness(cd/m²) | 1200 |
| LED Lifetime | 100k |
| Contrast Ratio | 800 |
| Operating Temperature | -30℃-80℃ |
| Storage Temperature | -40℃-90℃ |
Product description
The AU Optronics C084XAN01.0 TFT panel emerges as a top-tier, high-performance display alternative, meticulously engineered to address a plethora of exacting applications. Flaunting a resolution of 1024 x 768 pixels, this panel unfolds visuals that are not only razor-sharp but also teeming with vividness, rendering it eminently suitable for both industrial and commercial pursuits.
Endowed with an astonishing brightness level of 1200 nits, the C084XAN01.0 effortlessly secures outstanding visibility even within brilliantly illuminated surroundings, thereby making it the quintessential choice for outdoor deployments or locales with pronounced ambient light. This display operates with consummate efficiency across an expansive temperature gamut spanning from -30 to 80 °C, guaranteeing unfaltering performance even under the most extreme circumstances.
Leveraging IPS (In-Plane Switching) technology, the C084XAN01.0 proffers expansive viewing angles, ensuring unwavering color fidelity and clarity from a multiplicity of vantage points. The panel is furnished with an LVDS interface, streamlining its seamless assimilation into diverse systems and augmenting its adaptability for an array of different applications.
Built with durability as a cornerstone, it flaunts an extraordinary lifespan of approximately 100,000 hours, thereby vouchsafing long-term dependability and peak performance. As an A-grade product, the C084XAN01.0 pledges superlative quality and a stable supply, positioning itself as an outstanding option for industrial automation, medical devices, digital signage, and a host of other domains. The AU Optronics C084XAN01.0 stands as a reliable display solution that impeccably satisfies the stringent demands of modern technology.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
