Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G080UAN01.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
8.0 |
Resolution: |
1200(RGB)×1920 |
Active Area (W*H): |
107.64(W)×172.224(H) |
Outline Dimension (W*H*T): |
114.6(W)×184.13(H)×3.95(D) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-10℃-60℃ |
Size (inch): |
8.0 |
Resolution: |
1200(RGB)×1920 |
Active Area (W*H): |
107.64(W)×172.224(H) |
Outline Dimension (W*H*T): |
114.6(W)×184.13(H)×3.95(D) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-10℃-60℃ |

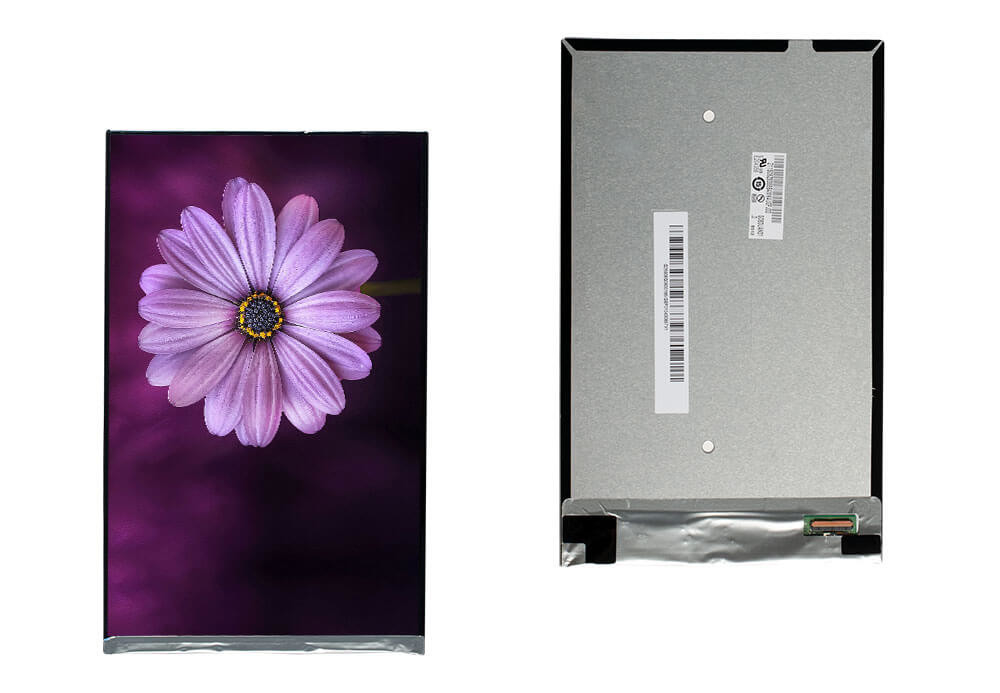

AU Optronics G080UAN01.0 TFT LCD Display 8 inch 1200*1920
| Product parameter | |
| LCD size(inch) | 8 (Diagonal) |
| Number Of Pixels | 1200(RGB)×1920 |
| Active Area (W*H) | 107.64(W)×172.224(H) |
| Outline Dimension (W*H*T) | 114.6(W)×184.13(H)×3.95(D) |
| Viewing angle(RLUD) | 89/89/89/89 |
| View Direction | IPS |
| Interface | MIPI 45 pins |
| Brightness(cd/m²) | 500 |
| LED Lifetime | 20k |
| Contrast Ratio | 1000 |
| Operating Temperature | -10℃-60℃ |
| Storage Temperature | -20℃-70℃ |
Product description
The AU Optronics G080UAN01.0 represents a sophisticated IPS panel, artfully fashioned to fulfill a rich tapestry of applications. Flaunting an astonishing resolution of 1200 x 1920 pixels, it presents visuals with peerless image clarity and a riot of vibrant colors. Through the employment of state-of-the-art IPS (In-Plane Switching) technology, this display bestows wide viewing angles, assuring unwavering visual consistency from a multiplicity of viewpoints.
Possessing a remarkable brightness quotient of 500 nits, the G080UAN01.0 effortlessly affords excellent visibility across a spectrum of lighting conditions, thereby deeming it apt for both indoor and outdoor environs. It functions with consummate efficiency within a temperature bracket spanning from -10 to 60 °C, vouchsafing reliable performance even when confronted with challenging scenarios.
The panel is endowed with a MIPI interface, which smoothes the path for seamless assimilation into a diverse array of systems, augmenting its adaptability for sundry applications. Engineered with an eye towards durability, the G080UAN01.0 parades an impressive lifespan of around 20,000 hours, underpinning long-term reliability and top-notch performance.
As a premium A-grade offering, this panel pledges uncompromising quality and a stable supply stream, rendering it a prime candidate for industrial applications, consumer electronics, and a host of other sectors. Be it deployed in digital signage, handheld gizmos, or other electronic architectures, the AU Optronics G080UAN01.0 stands as a steadfast solution that dovetails neatly with the exigencies of modern technology.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
