Product Details
Place of Origin: Shenzhen, China
Brand Name: Original Brand Module Agent
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G133HAN01.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
13.3 |
Resolution: |
1920*1080 |
Luminance(nits): |
400 |
Viewing Angle(RLUD): |
85/85/85/85 |
Net Weight: |
500g |
Outline Dimension (W*H*T): |
309.7*184.1*10.1 |
Viewing Direction: |
IPS |
Storage Temperature: |
-20℃ To 70℃ |
Size (inch): |
13.3 |
Resolution: |
1920*1080 |
Luminance(nits): |
400 |
Viewing Angle(RLUD): |
85/85/85/85 |
Net Weight: |
500g |
Outline Dimension (W*H*T): |
309.7*184.1*10.1 |
Viewing Direction: |
IPS |
Storage Temperature: |
-20℃ To 70℃ |

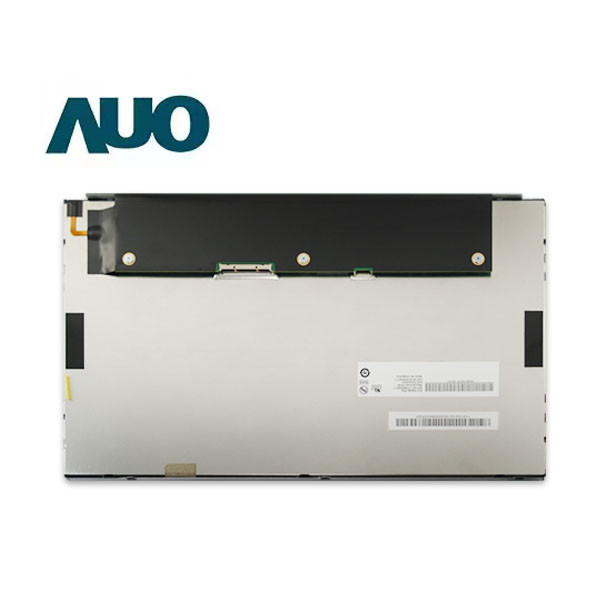

AUO G133HAN01.1 13.3 inch Industrial TFT Display 1920*1080 High Resolution Display Panel
| AUO G133HAN01.1 Application Details | ||||
| Basic Info : | Panel Brand | AUO | Panel Model | G133HAN01.1 |
| Diagonal Size | 13.3 inch | Application | Industrial,Medical Imaging,Gaming | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | Wide Color Gamut,DCI-P3,Srgb, WLED Backlight,Life>=50K hours,With LED Driver, Matte | |||
| AUO G133HAN01.1 Mechanical Details | ||||
| Pixel Features : | Pixel Format | 1920(RGB)*1080, FHD | Dot Pitch | 0.05095*0.15285 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.15285*0.15285 (H*V) [166PPI] | |
| Mechanical Size : | Display Area (mm) | 293.472(H) *165.078(V) | Outline Dim (mm). | 295.07(H) *166.68(V) |
| Outline Dim. (mm) | 309.7(H) *184.1(V) | Outline Depth (mm) | 10.1 (Max.) | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 500g (Max.) | Surface | Antiglare |
| AUO G133HAN01.1 Optical Details | ||||
| Brightness | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 800:1(Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 90% | sRGB | 100% coverage |
| Adobe RGB | 82% coverage | DCI-P3 | 90% coverage | |
| Rec.2020 | 67% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
At just 500g, this TFT LCD monitor for car is incredibly lightweight and easy to install, making it perfect for use in a variety of different locations. Its active area measures 293.472mm by 165.078mm, and its outline dimensions are 309.7mm by 184.1mm by 10.1mm, making it compact enough to fit into even the tightest of spaces.
In terms of resolution, this car TFT display is nothing short of impressive. With a resolution of 1920 by 1080 pixels, it delivers stunningly sharp and clear images that are sure to impress even the most discerning of users. Whether you're using it for entertainment or for industrial purposes, this display is sure to provide you with the high-quality performance you need.
With a resolution of 1920x1080 and a viewing direction of IPS, this AUO product offers excellent image quality and visibility from a wide range of angles. The 16.7M color depth ensures that images are vibrant and true-to-life, while the 800:1 contrast ratio provides sharp, clear contrast between light and dark areas of the screen.
Our G133HAN01.1 model is certified to meet a range of international standards, including ISO 9241, IEC62341, JEITA CP-3451, ANSI/AAMI ES60601-1-2, and IEC 60068. This ensures that our customers can trust in the quality and reliability of our products, even in the most challenging environments.
Whether you are looking for a car LCD panel or an industrial display solution, our AUO product is the perfect choice. With an operating temperature range of -20℃ to 70℃, it can withstand even the harshest conditions, while providing reliable performance day after day.
Our Product Technical Support and Services offer comprehensive assistance for AUO products, including:
Our team of experienced professionals is dedicated to providing prompt and effective solutions to ensure the optimal performance and reliability of your AUO product. Contact us for any technical support or service needs.
Package
| AUO G133HAN01.1 Carton Details | |||
| Package Box : | Amount | Size (L*W*H) | Weight |
| 20 pcs / box | 480*275*450 mm | 10.5 Kgs | |
