Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G101EVN03.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
10.1 |
Resolution: |
1280×800 |
Active Area (W*H): |
216.96×135.6 |
Outline Dimension (W*H*T): |
227.69×148.31×7.75 |
Viewing Angle(RLUD): |
85/85/85/85 |
View Direction: |
ALL |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS |
Brightness (cd/m²): |
1000 |
Contrast Ratio: |
1300:1 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～70℃ |
Size (inch): |
10.1 |
Resolution: |
1280×800 |
Active Area (W*H): |
216.96×135.6 |
Outline Dimension (W*H*T): |
227.69×148.31×7.75 |
Viewing Angle(RLUD): |
85/85/85/85 |
View Direction: |
ALL |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS |
Brightness (cd/m²): |
1000 |
Contrast Ratio: |
1300:1 |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-30℃～70℃ |

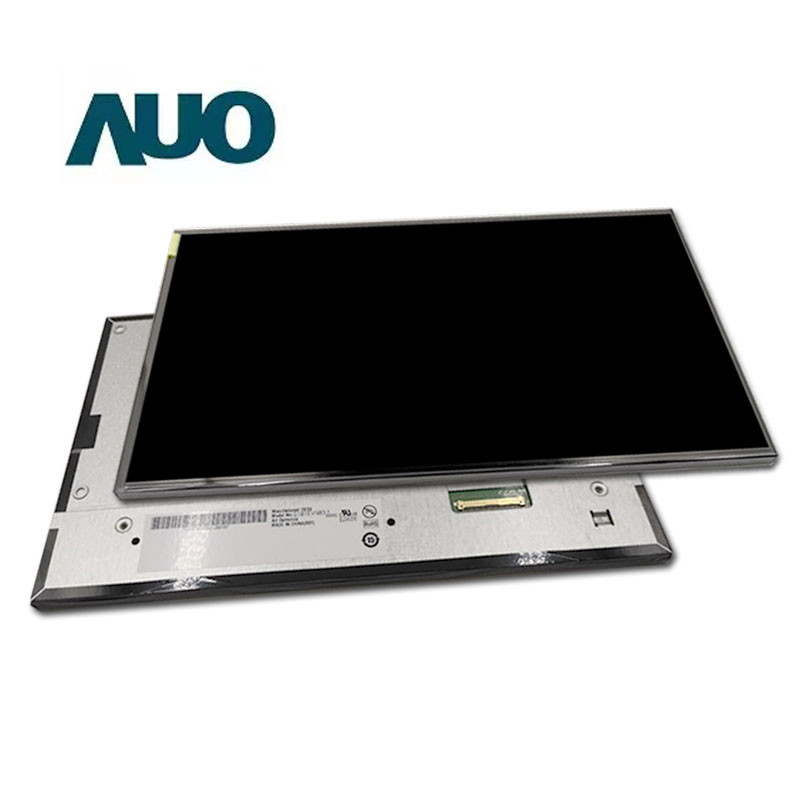

10.1 inch G101EVN03.1 TFT LCD Panel 1280×800 Pixels AUO Displays
Enjoy stunning visual clarity and accuracy with the G101EVN03.1 AUO LCD Panel, featuring a pixel
arrangement of R.G.B. vertical stripe that delivers impeccable image quality. With a wide viewing angle
of 85/85/85/85, this display panel ensures that every image is crystal clear, no matter where you're looking at it from.
The panel LVDS is designed to withstand extreme temperatures, with a storage range of -30℃ to 70℃,
making it ideal for use in a wide range of environments. Whether you're operating in a cold warehouse or
a hot manufacturing plant, you can trust the AUO Display Panel to deliver reliable performance every time.
With a luminance of 1000 nits, this LVDS display panel delivers outstanding brightness and clarity,
making it perfect for a wide range of applications. Whether you're using it for digital signage, gaming,
or industrial automation, the AUO Display Panel is the ideal choice for anyone who demands the best in
performance and reliability.
| AUO G101EVN03.1 Application Details | ||||
| Basic Detail : | Manufacturer | AUO | Model Name | G101EVN03.1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 10.1inch | Designed For | Idustrial,Outdoor High Brightness | |
| Maximum Ratings : | OP Temperature | -20~ 60°C | ST Temperature | -30 ~70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Ultra High Brightness,WLED Backlight,Life>=50K hours,6/8 bit,Reverse I/F,Glossy | |||
| AUO G101EVN03.1 Optical Details | ||||
| Basic Information : | Luminance | 1000cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| AUO G101EVN03.1 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0565×0.1695 mm (H×V) | Pixel Pitch(W×H) | 0.1695×0.1695 mm (H×V) [149PPI] | |
| Physical Size : | Active Viewing(mm) | 216.96×135.6 mm (H×V) | Outline Dim.(mm) | 249.56(W)×168.2(H) mm |
| Bezel Opening(mm) | - | Overall Depth(mm) | 5.6/7.75 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10(H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Detail : | Weight | 350g (Max.) | Surface | Glare (Haze 0%) |
| AUO G101EVN03.1 Electronics Details | ||||
| Refresh Rate : | 60Hz | |||
| Reverse Scan : | No | |||
| AUO G101EVN03.1 Interface Detail | ||||
| Signal Electrical : | Input Current | 192/270mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.63/0.89W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins |
| JAE | HD1S040HA1 | 0.5mm | 40pins | |
The AUO G101EVN03.1 display panel is ideal for a wide range of product application occasions and scenarios, including:
