Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G133HAN02.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size(inch): |
13.3 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
400 |
Active Area (W*H): |
293.472×165.078 |
Outline Dimension (W*H*T): |
306.3×195.29×3.2 |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
Contrast Ratio: |
800:1 |
Interface: |
EDP 30 |
LED Lifetime (hrs): |
30K |
Size(inch): |
13.3 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
400 |
Active Area (W*H): |
293.472×165.078 |
Outline Dimension (W*H*T): |
306.3×195.29×3.2 |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
Contrast Ratio: |
800:1 |
Interface: |
EDP 30 |
LED Lifetime (hrs): |
30K |

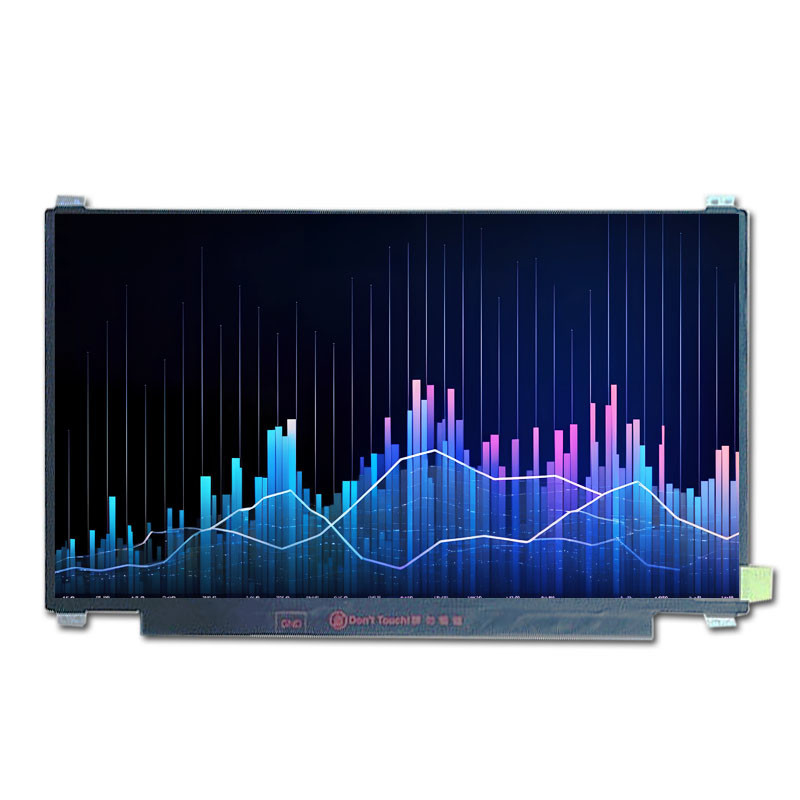

13.3 inch TFT LCD Display Module 1920×1080 pixels G133HAN02.0 AUO LCD with EDP Interface
The G133HAN02.0 AUO Color Display Panel has an high resolution 1920*1080 pixels and a size of 13.3 inches,with its high contrast ratio, this display panel delivers stunningly clear images and videos with deep blacks and bright whites. Its IPS viewing direction provides a wide viewing angle, making it easy to view the panel from different positions without any loss of image quality. Whether you're watching a movie or working on a project, the AUO Color Display Panel provides an immersive viewing experience.
The LED Lifetime of 30K hours ensures that the panel will last for years to come, providing reliable performance and exceptional image quality throughout its lifespan. This feature makes the AUO Color Display Panel an excellent investment for anyone looking for a display panel that will stand the test of time.
| AUO G133HAN02.0 Optical Details | ||||
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 27 (Typ.)(Tr+Td) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| AUO G133HAN02.0 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.05095×0.15285 (H×V) | Pixel Pitch(W×H) | 0.15285×0.15285 (H×V) [166PPI] | |
| Physical Size : | Active Viewing(mm) | 293.472(H) × 165.078(V) | Outline Dim.(mm) | 306.3(H) × 195.29(V) |
| Bezel Area(mm) | - | Depth(mm) | 3.2 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Spec : | Weight | 280g (Max.) | Treatment | Antiglare |
Idustrial,Medical Imaging,Gaming
Our technical support and services for AUO Display Panel products include:
We are committed to providing excellent support and service to ensure the best possible performance and lifespan of your AUO Display Panel product.
Product Packaging:
The AUO Display Panel product will be packed in a sturdy cardboard box with bubble wrap to ensure that it remains safe and undamaged during transport. The box will be labeled with the product name and specifications for easy identification.
Shipping:
The AUO Display Panel product will be shipped via a reputable courier service. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer once the order has been processed and shipped.
