Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G150XTN03.5
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1024×768 |
Luminance(nits): |
350 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5×253.5×10 |
Viewing Angle(RLUD): |
80/80/70/80 |
Viewing Direction: |
TN |
Operating Temperature: |
-0℃～65℃ |
Storage Temperature: |
-20℃～65℃ |
LED Lifetime (hrs): |
70K |
Contrast Ratio: |
800:1 |
Size (inch): |
15 |
Resolution: |
1024×768 |
Luminance(nits): |
350 |
Active Area (W*H): |
304.128×228.096 |
Outline Dimension (W*H*T): |
326.5×253.5×10 |
Viewing Angle(RLUD): |
80/80/70/80 |
Viewing Direction: |
TN |
Operating Temperature: |
-0℃～65℃ |
Storage Temperature: |
-20℃～65℃ |
LED Lifetime (hrs): |
70K |
Contrast Ratio: |
800:1 |

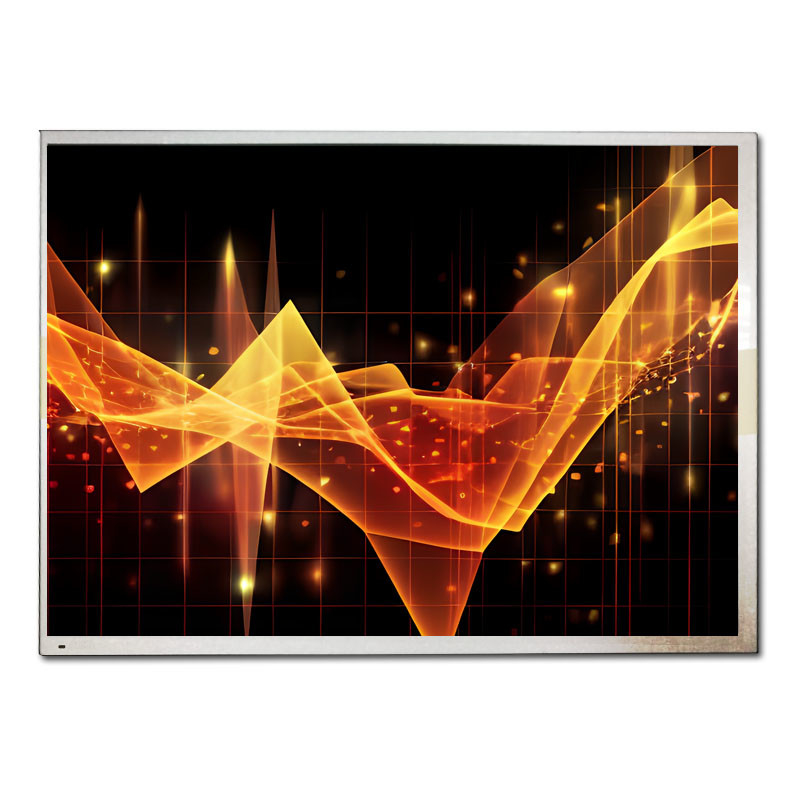

15 inch G150XTN03.5 Industrial Screens 1024x768 AUO Display Panel with 70K Lifetime
G150XTN03.5 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a
driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x
768(V)) screen and 262K / 16.2M (RGB 6/8-bits) coloars. All input signals are LVDS interface
compatible.
G150XTN03.5 is designed for industrial display applications.
| AUO G150XTN03.5 Optical Details | ||||
| Basic Information : | Luminance | 350cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| AUO G150XTN03.5 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128(W)×228.096(H) mm | Outline Dim.(mm) | 326.5(W)×253.5(H) mm |
| Bezel Area(mm) | 313.55(W)×237.25(H) mm | Depth(mm) | 10.0 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.20Kgs (Max.) | Treatment | Antiglare, Hard coating (3H) |
Designed for a wide range of applications, the AUO G150XTN03.5 flat panel display is perfect for use in various industry displays, including medical equipment, gaming machines, industrial automation, and point-of-sale systems.
Product Technical Support:
- Technical consultation and troubleshooting service
- Repair and replacement service for defective products
- Firmware and software updates
- Warranty service
Product Services:
- Customized design and development service
- Product testing and verification service
- Product training and education service
- Logistics and supply chain management service
Product Packaging:
Shipping:
| AUO G150XTN03.5 Packing Details | |||
| Package Box : | Quantity | Weight | Box Size |
| 14 pcs / box | 16.5 Kgs | 430×370×350 mm (L×W×H) | |
