Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G156HAB01.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Luminance(nits): |
300 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
361×227×4.9 |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
LED Lifetime (hrs): |
50K |
Interface: |
EDP 40 |
Contrast Ratio: |
800 |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Luminance(nits): |
300 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
361×227×4.9 |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
LED Lifetime (hrs): |
50K |
Interface: |
EDP 40 |
Contrast Ratio: |
800 |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |

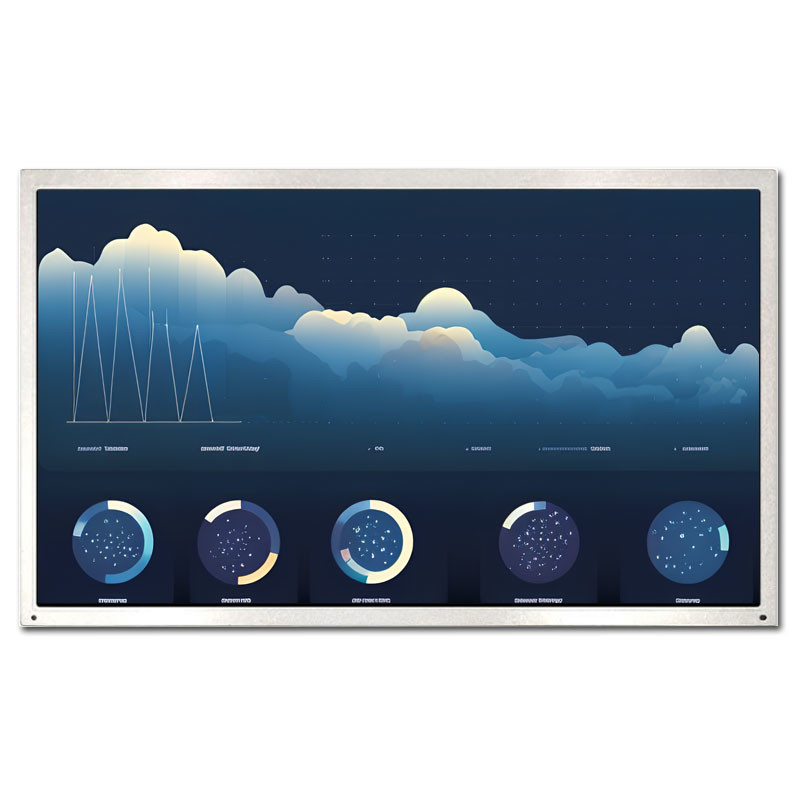

G156HAB01.0 15.6 inch AUO Display Panel 1920x1080 Pixels High Resolution LCD Display
G156HAB01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a
driver circuit, and a LED backlight system. The screen format is intended to support 16:9 FHD
(1920(H) x 1080(V)) screen and 16.2M colors (RGB 6-bits+FRC) with LED backlight driving
circuit. All input signals are eDP (Embedded DisplayPort) interface compatible.
G156HAB01.0 is designed for a display unit of notebook style personal computer and industrial
machine.
AUO Color Display Panel is a product of a leading display making company that provides the following features:
These lcd devices are perfect for various applications.
| AUO G156HAB01.0 Optical Details | ||||
| Basic Information : | Luminance | 300cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(5points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| AUO G156HAB01.0 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.05975*0.17925 mm (H*V) | Pixel Pitch(W*H) | 0.17925*0.17925 mm (H*V) [141PPI] | |
| Physical Size : | Active Viewing(mm) | 344.16*193.59 mm (H*V) | Outline Dim.(mm) | 361*227 mm (H*V) |
| Bezel Area | - | Outline Depth | 4.9 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Touch Screen : | Touch Points | 10 points | TP Signal | USB (Support Win7, Win8, Win10) |
| TP Controller | With touch controller | Touchscreen | On-Cell Touch | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 620g (Max.) | Surface | Hard coating (7H) |
| Panel Cover | With Cover Lens | |||
The AUO display panel is suitable for various industries such as medical, industrial, gaming, and automotive. It is a versatile product that is perfect for different occasions and scenarios.
The AUO LCD display panel is perfect for medical applications such as patient monitoring and diagnostic equipment.
The panel is also suitable for industrial automation applications that require a reliable and high-quality display. The AUO display panel is known for its durability and long lifespan, making it perfect for use in harsh industrial environments.
For gaming enthusiasts, the AUO LCD display panel delivers a high-quality and immersive gaming experience. Its fast response time and high contrast ratio of 800:1 make it perfect for gaming applications.
The AUO display panel is also ideal for use in automotive applications such as infotainment systems and dashboard displays. Its high resolution of 1920×1080 and wide viewing angle of 89/89/89/89 make it perfect for displaying information and graphics in a car.
The AUO display panel features LVDS panel technology, which provides a high-speed and reliable data transfer. Its active area of 344.16×193.59 and LED lifetime of 50,000 hours ensure that it delivers high-quality performance for a long time.
