Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G156HAN02.302
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Luminance(nits): |
500 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
363.8×215.9×9.3 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
Storage Temperature: |
-20℃～70℃ |
Operating Temperature: |
-20℃～70℃ |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Luminance(nits): |
500 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
363.8×215.9×9.3 |
Viewing Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
Storage Temperature: |
-20℃～70℃ |
Operating Temperature: |
-20℃～70℃ |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |

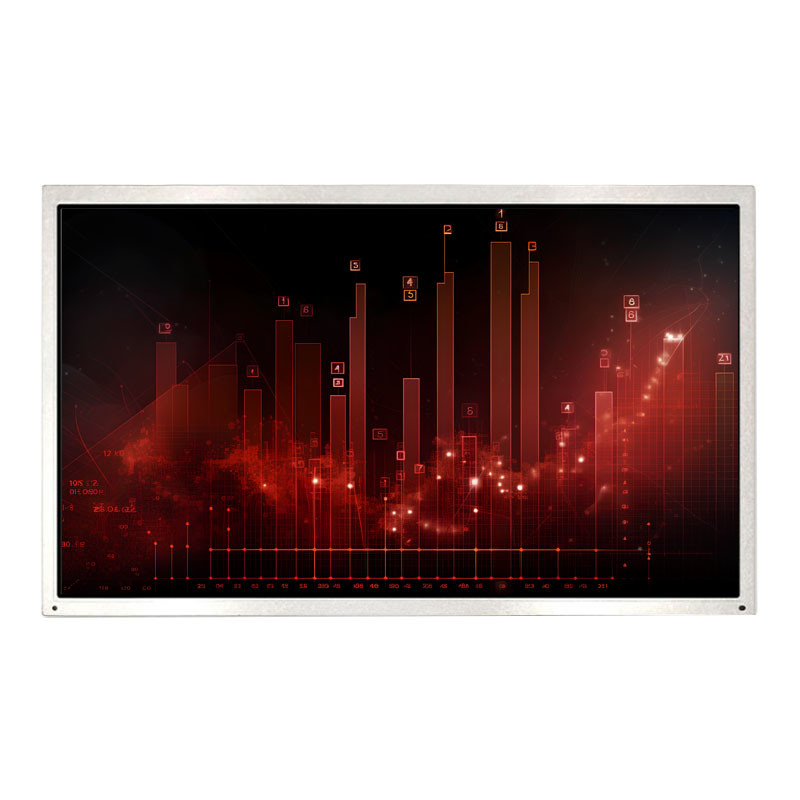

15.6 inch IPS AUO Display Panel G156HAN02.302 TFT Display Screen with 1920×1080 High Resolution
The AUO Display Panel features an LVDS 30 interface, which is a widely used standard for high-speed data transfer. This interface provides a reliable and efficient connection between the display panel and other components, ensuring smooth operation and fast data transfer.
The viewing direction of the AUO Display Panel is IPS, this technology provides excellent color accuracy and wide viewing angles, making it perfect for applications that require precise color reproduction and viewing from different angles.
The AUO Display Panel boasts a contrast ratio of 1000, which means that it can display deep blacks and bright whites, resulting in a vivid and crisp image. This makes it ideal for applications that require high-quality images, such as medical imaging, industrial automation, and gaming.
Overall, the AUO Display Panel is a top-of-the-line LVDS display panel that provides excellent performance and reliability. Its wide operating temperature range, IPS viewing direction, high contrast ratio, and LVDS 30 interface make it an ideal choice for a wide range of applications, including industrial automation, medical imaging, gaming, and more.
| AUO G156HAN02.302 Mechanical Details | ||||
| Pixel Features : | Pixel Format | 1920(RGB)*1080, FHD | Dot Pitch | 0.05975*0.17925 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925*0.17925 (H*V) [141PPI] | |
| Mechanical Size : | Display Area (mm) | 344.16(H) *193.59(V) | Outline Dim (mm). | 363.8(W)*215.9(H) mm |
| Outline Dim. (mm) | 347.06(W)*196.49(H) mm | Outline Depth (mm) | 4.1/6.5 (Typ./Max.) | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 600/660g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| AUO G156HAN02.302 Optical Details | ||||
| Brightness | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25(Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 99% coverage |
| Adobe RGB | 76% | DCI-P3 | 77% coverage | |
| coverage | ||||
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Our AUO display panels are perfect for a variety of applications, from medical equipment to gaming systems. The IPS viewing direction ensures a clear and consistent image, and the LED backlight provides a lifetime of up to 50,000 hours. As a distributor of LCD panels, we are proud to offer a supply ability of up to 500,000 pieces per day.
So if you're searching for a reliable and high-quality LCD display panel for your business needs, look no further than AUO Industrial Liquid Crystal Display Panels. Contact us today to learn more.
Our AUO Display Panel product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our services include:
Our team of experienced professionals is dedicated to providing timely and effective solutions to any technical issues you may encounter with our AUO Display Panel product. We strive to ensure that our customers receive the highest level of support and services at all times.
Product Packaging:
This AUO Display Panel product is packaged carefully to ensure it arrives in excellent condition. The product is first wrapped in a layer of protective foam and then placed in a sturdy cardboard box. The box is labeled with the product information and includes handling instructions to prevent any damage during shipping.
Shipping:
Our shipping partners are experienced in handling delicate electronic products. We offer standard and expedited shipping options to our customers. The shipping cost is calculated based on the destination and weight of the product. Once the product is shipped, we provide a tracking number to allow customers to track the status of their shipment.
