Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G156HAN04.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
363.8×215.9×11.02 |
Operating Temperature: |
-30℃～85℃ |
Storage Temperature: |
-30℃～85℃ |
Interface: |
LVDS 30 |
View Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
1000 |
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
363.8×215.9×11.02 |
Operating Temperature: |
-30℃～85℃ |
Storage Temperature: |
-30℃～85℃ |
Interface: |
LVDS 30 |
View Direction: |
IPS |
Viewing Angle(RLUD): |
89/89/89/89 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
1000 |

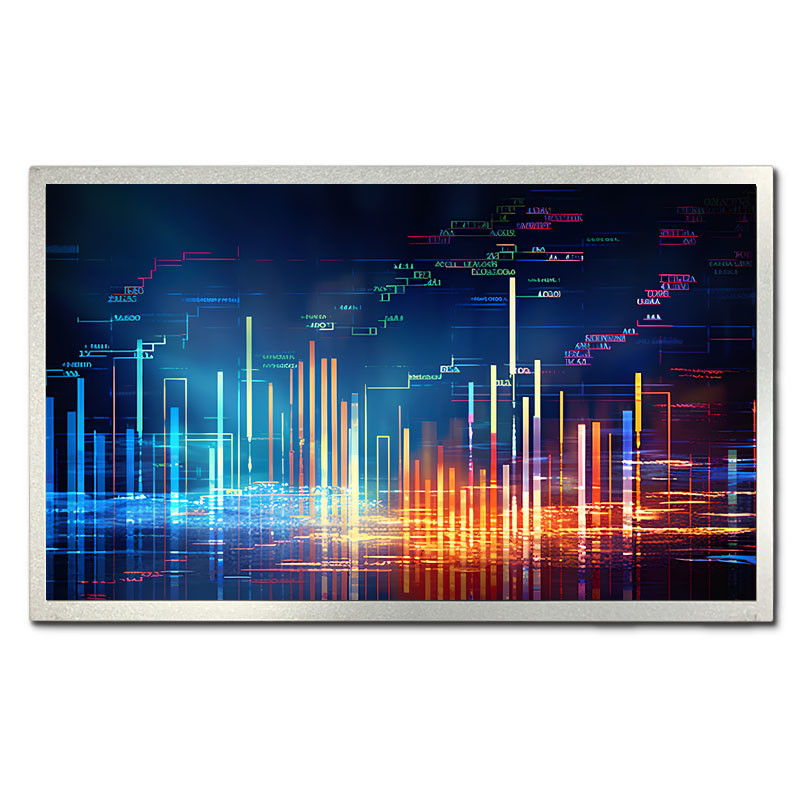

G156HAN04.0 15.6 Inch AUO Display Panel Wide Temperature Display with 50K LED Lifetime
One of the standout features of this panel is its impressive storage temperature range. With the ability to operate in temperatures between -30℃ and 85℃, this panel is ideal for use in a variety of environments, including industrial and outdoor settings.
The panel also boasts an impressive luminance rating of 1000 nits, ensuring that images and graphics are displayed with stunning brightness and clarity. This makes it an ideal choice for applications such as digital signage, where visibility is key.
At 363.8×215.9×11.02 in size, the panel's outline dimensions are compact and versatile, making it easy to integrate into a wide range of devices and systems. Its viewing angle is equally impressive, with a range of 89 degrees in all directions (RLUD), ensuring that images remain clear and easy to view from any angle.
| AUO G156HAN04.0 Optical Details | ||||
| Basic Information : | Luminance | 1000cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| AUO G156HAN04.0 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.05975×0.17925 mm (H×V) | Pixel Pitch(W×H) | 0.17925×0.17925 mm (H×V) [141PPI] | |
| Physical Size : | Active Viewing(mm) | 344.16×193.59 mm (H×V) | Outline Dim.(mm) | 363.8×215.9 mm (H×V) |
| Bezel Area | - | Outline Depth | 10.32±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 880/975W (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
This AUO G156HAN04.0 LCD Monitor Display Panel is suitable for a range of product application occasions and scenarios, making it a versatile choice for your business needs. Whether you need a display panel for medical equipment, industrial control systems, or gaming monitors, the AUO G156HAN04.0 is a great choice. Its LED lifetime of 50K hours ensures longevity, while its storage temperature range of -30℃～85℃ allows it to be used in a variety of environments.
Our AUO Display Panel product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with any product-related technical issues, including troubleshooting, diagnostics, and repairs.
We also offer advanced services such as customization, design consultation, and product training to help you get the most out of your AUO Display Panel. Our technical support and services are designed to minimize downtime and maximize productivity, so you can focus on your business and achieve your goals.
