Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G156HAN05.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Luminance(nits): |
500 |
Interface: |
EDP 30 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
351.84×208.88×6.5 |
Operating Temperature: |
-10℃～60℃ |
Storage Temperature: |
-20℃～70℃ |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50k |
Size (inch): |
15.6 |
Resolution: |
1920×1080 |
Luminance(nits): |
500 |
Interface: |
EDP 30 |
Active Area (W*H): |
344.16×193.59 |
Outline Dimension (W*H*T): |
351.84×208.88×6.5 |
Operating Temperature: |
-10℃～60℃ |
Storage Temperature: |
-20℃～70℃ |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50k |

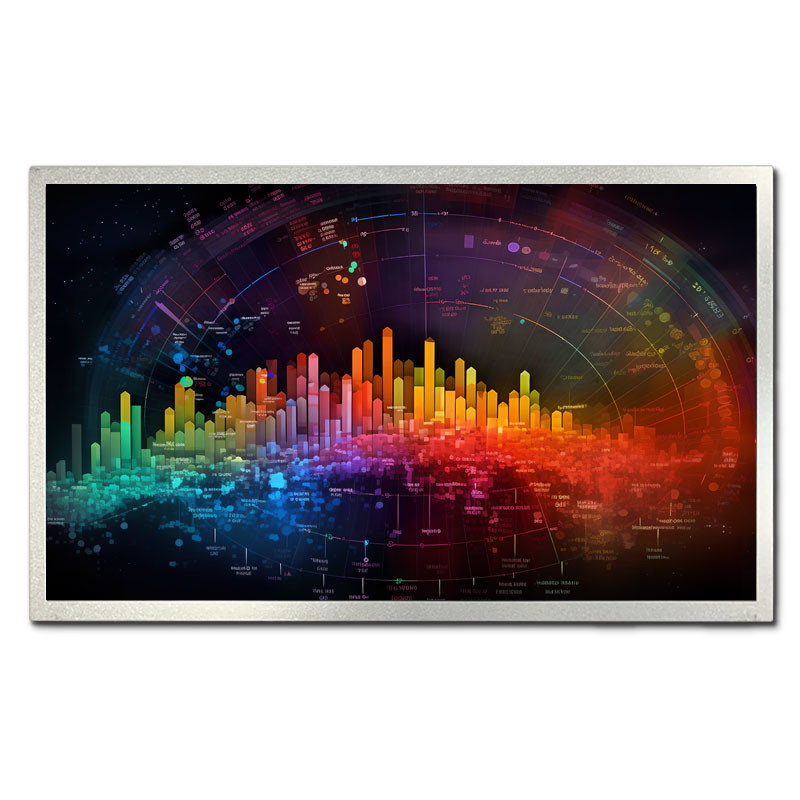

G156HAN05.0 15.6 inch AUO Display Panel 1920x1080 Resolution TFT IPS Display with 500 nits Luminance
The active area of this display panel measures at 344.16×193.59, providing ample space for your content to be displayed. In addition, the viewing direction is IPS, ensuring that your content is viewable from various angles without compromising its quality.
The outline dimension of this display panel is 351.84×208.88×6.5, making it a conveniently sized product that's easy to work with. It's slim design allows it to fit into a variety of products without taking up too much space.
With a LED lifetime of 50K hours, this display panel is built to last. You can rely on its longevity and durability for long-term use without having to worry about frequent replacements or malfunctions.
Another great feature of this display panel is its luminance, which measures at a bright 500 nits. This ensures that your content is visible even in bright environments, making it perfect for outdoor use or areas with a lot of natural light.
.
AUO LCD Panel, lcd display panel, AUO Liquid Crystal Display Panel
| AUO G133ZAN01.1 Mechanical Details | ||||
| Pixel Features : | Pixel Format | 1920(RGB)*1080, FHD | Dot Pitch | 0.05975*0.17925 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925*0.17925 (H*V) [141PPI] | |
| Mechanical Size : | Display Area (mm) | 344.16(H) *193.59(V) | Outline Dim (mm). | - |
| Outline Dim. (mm) | 351.84(H) *208.88(V) | Outline Depth (mm) | 4.1/6.5 (Typ./Max.) | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 580g (Max.) | Treatment | Hard coating (3H) |
| AUO G133ZAN01.1 Optical Details | ||||
| Brightness | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25(Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 78% | sRGB | 100% coverage |
| Adobe RGB | 78% | DCI-P3 | 80% coverage | |
| coverage | ||||
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
This lvds display is an lcd device with an IPS panel.
The AUO Display Panel is designed for a wide range of product application occasions and scenarios. Its IPS panel technology ensures superior color reproduction and wide viewing angles, making it ideal for use in a variety of settings. Whether you need a new LCD panel for your office, retail store, or home entertainment system, the AUO Display Panel is the perfect choice.
Our AUO Display Panel product technical support and services include:
Our team of experienced technicians is dedicated to providing the highest level of support and service for our AUO Display Panel product. Contact us for any technical assistance or inquiries.
Product Packaging:
Shipping:
| AUO G156HAN05.0 Packing Details | ||||
| Package Box : | Quantity | Weight | Box Size | |
| 18 pcs / box | 10.0 Kgs | 485*375*340 mm (L*W*H) | ||
