Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G173HW01 V0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
17.3 |
Resolution: |
1920×1080 |
Luminance(nits): |
400 |
Operating Temperature: |
-0℃～70℃ |
Storage Temperature: |
-20℃～70℃ |
Active Area (W*H): |
381.888×214.812 |
Outline Dimension (W*H*T): |
403×240×13 |
Viewing Angle(RLUD): |
80/80/60/80 |
Viewing Direction: |
TN |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Size (inch): |
17.3 |
Resolution: |
1920×1080 |
Luminance(nits): |
400 |
Operating Temperature: |
-0℃～70℃ |
Storage Temperature: |
-20℃～70℃ |
Active Area (W*H): |
381.888×214.812 |
Outline Dimension (W*H*T): |
403×240×13 |
Viewing Angle(RLUD): |
80/80/60/80 |
Viewing Direction: |
TN |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |

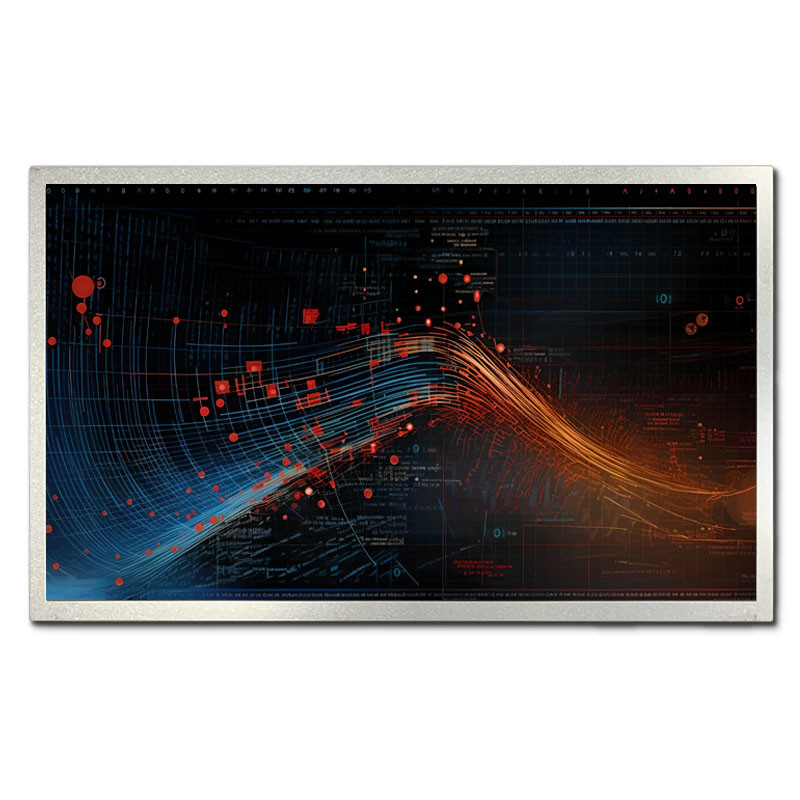

17.3 inch G173HW01 V0 AUO LCD Panel 1920x1080 High Resolution Display with LVDS 30 Interface.
One of our most popular products is the AUO Display Panel, which boasts impressive specifications and features that make it a favorite among customers.
The outline of the AUO display panel is 403×240×13 mm, making it a compact and space-saving option for various applications. Its LVDS 30 interface ensures smooth and efficient data transmission, while its impressive viewing angles of 80/80/60/80 (RLUD) guarantee clear and vivid images from any direction.
Whether you're using the panel indoors or outdoors, it can withstand a wide range of temperatures, with an operating temperature range of -0℃ to 70℃. This makes it a versatile option for various industries that require displays that can perform in different environments.
In addition, the AUO Display Panel boasts a high contrast ratio of 600, which means that it can display deep blacks and bright whites with great accuracy. This makes it an excellent choice for applications that require a high level of detail and color accuracy, such as medical imaging, gaming, and graphic design.
| AUO G173HW01 V0 Optical Details | ||||
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 37/3 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.310 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 7525K | White Variation | 1.25/1.33 (Typ./Max.)(13points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Other Spec : | Weight | 860g (Typ.) | Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| AUO G173HW01 V0 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)×1920 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0663×0.1989 mm | Pixel Pitch(W×H) | 0.1989×0.1989 mm [127PPI] | |
| Physical Size : | Active Viewing(mm) | 381.888(W)×214.812(H) mm | Outline Dim.(mm) | 403(W)×240(H) mm |
| Bezel Area | 385.09(W)×218.01(H) mm | Outline Depth | 12.5±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.08Kgs (Typ.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
With a minimum order quantity of just one piece, this AUO LCD Monitor Display Panel is perfect for a wide range of applications. Its LVDS 30 interface and TN viewing direction make it ideal for use in medical equipment, industrial automation, gaming machines, and more.
The AUO Flat Panel Display offers a contrast ratio of 600, ensuring that images and text are sharp and clear.
The AUO Flat Panel Display is a versatile and reliable choice for a wide range of applications. Whether you need a panel lvds for your medical equipment or an AUO LCD Monitor Display Panel for your industrial automation needs, this product is sure to meet your requirements. Contact us today for the latest pricing and to place your order.
Our Product Technical Support and Services for AUO Display Panel include:
We are committed to providing the highest level of support and service to our customers. Please feel free to contact us for any questions or assistance.
Product Packaging:
The AUO Display Panel product will be securely packed in a cardboard box with foam padding to protect it from any damage during transit. The box will also include the necessary accessories such as cables and installation guide.
Shipping:
The product will be shipped via a reputable courier service to ensure timely and safe delivery. Customers will be provided with a tracking number to track their shipment. Shipping times may vary depending on the destination, however, we strive to deliver products within the estimated delivery time frame.
| AUO G173HW01 V0 Packing Details | ||||
| Package Box : | Quantity | Weight | Box Size | |
| 10 pcs / box | - | 524×321×360 mm (L×W×H) | ||
