Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G185HAN01.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
18.5 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
500 |
Active Area (W*H): |
408.96×230.04 |
Outline Dimension (W*H*T): |
430.4×254.6×12.5 |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-25℃～70℃ |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |
Size (inch): |
18.5 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
500 |
Active Area (W*H): |
408.96×230.04 |
Outline Dimension (W*H*T): |
430.4×254.6×12.5 |
Viewing Angle(RLUD): |
89/89/89/89 |
Viewing Direction: |
IPS |
Operating Temperature: |
-20℃～70℃ |
Storage Temperature: |
-25℃～70℃ |
Contrast Ratio: |
1000 |
LED Lifetime (hrs): |
50K |

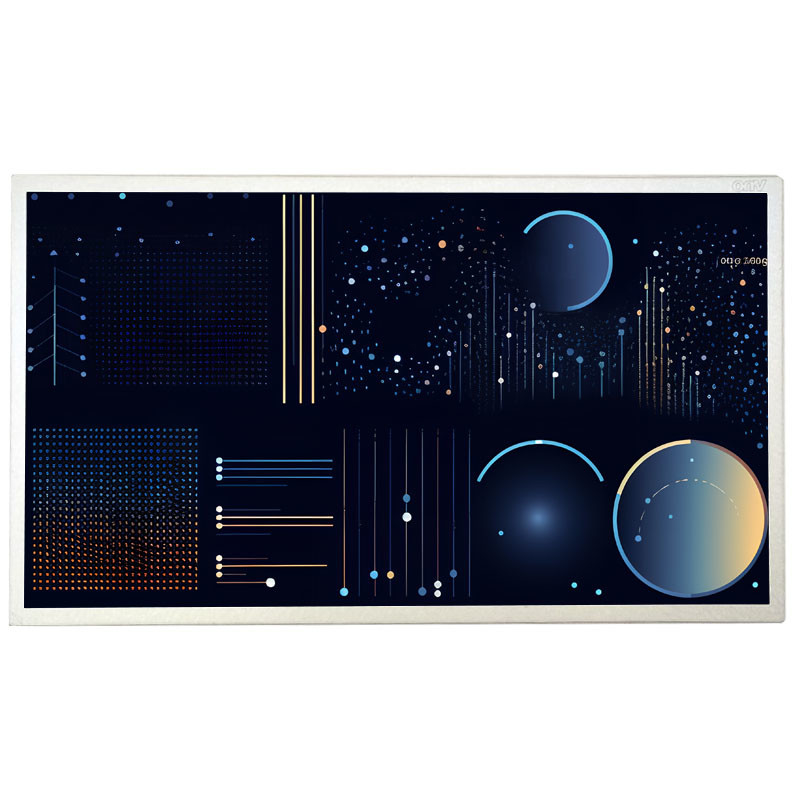

18.5 inch AUO G185HAN01.1 Screen 1920x1080 IPS Display Panel with High Brightness
One of the standout features of the AUO Display Panel is its impressive outline dimension. With dimensions of 430.4×254.6×12.5, this display panel is both compact and easy to install in a variety of settings. Additionally, the panel boasts an active area of 408.96×230.04, ensuring that your content is displayed clearly and with great detail.
Another key feature of the AUO Display Panel is its excellent contrast ratio. With a ratio of 1000, the panel offers deep blacks and bright whites, making it an ideal choice for displaying everything from text to high-definition video content.
The viewing angle of the AUO Display Panel is also worth noting. With a viewing angle of 89/89/89/89 (RLUD), the panel provides excellent visibility from a variety of angles. This makes it an ideal choice for use in settings where multiple people will be viewing the display at once.
Finally, the AUO Display Panel features an IPS viewing direction. This ensures that your content is displayed with accurate colors and sharp contrast, making it an ideal choice for use in a wide range of applications.
In conclusion, if you are in the market for a high-quality TFT-LCD Panel, the AUO Display Panel is an excellent choice. Whether you are a distributor of LCD products or you are simply looking to upgrade your existing display, this panel offers a range of features that are sure to meet your needs.
| Luminance(nits): | 500 |
| Contrast Ratio: | 1000 |
| Storage Temperature: | -25℃～70℃ |
| Operating Temperature: | -20℃～70℃ |
| LED Lifetime (hrs): | 50K |
| Outline Dimension (W*H*T): | 430.4×254.6×12.5 |
| Interface: | LVDS 30 |
| Resolution: | 1920×1080 |
| Viewing Direction: | IPS |
| Viewing angle(RLUD): | 89/89/89/89 |
The AUO color display panel boasts a luminance of 500 nits, ensuring a bright and clear visual experience for end-users. The outline dimension of 430.4×254.6×12.5 makes it easy to fit into various device designs, the display panel's size of 18.5 inches and resolution of 1920×1080 make it suitable for use in medical, industrial, and gaming equipment.
The G185HAN01.1's storage temperature of -25℃～70℃ makes it ideal for use in extreme environments.
Our Product Technical Support and Services for AUO Display Panel include:
Product Packaging:
The AUO Display Panel product will be securely packaged in a cardboard box with protective foam padding to prevent any damage during transportation. The package will also include any necessary cables or accessories.
Shipping:
We offer worldwide shipping for the AUO Display Panel product. Shipping costs will depend on the destination and shipping method selected at checkout. Please allow 1-2 business days for processing before the product is shipped out. Delivery times will vary depending on the destination and selected shipping method.
