Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G215HVN01.3
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
21.5 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
476.64×268.11 |
Outline Dimension (W*H*T): |
495.6×292.2×24.05 |
Operating Temperature: |
-20℃～80℃ |
Storage Temperature: |
-20℃～80℃ |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 30 |
Contrast Ratio: |
5000 |
Size (inch): |
21.5 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
1000 |
Active Area (W*H): |
476.64×268.11 |
Outline Dimension (W*H*T): |
495.6×292.2×24.05 |
Operating Temperature: |
-20℃～80℃ |
Storage Temperature: |
-20℃～80℃ |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
LED Lifetime (hrs): |
50K |
Interface: |
LVDS 30 |
Contrast Ratio: |
5000 |

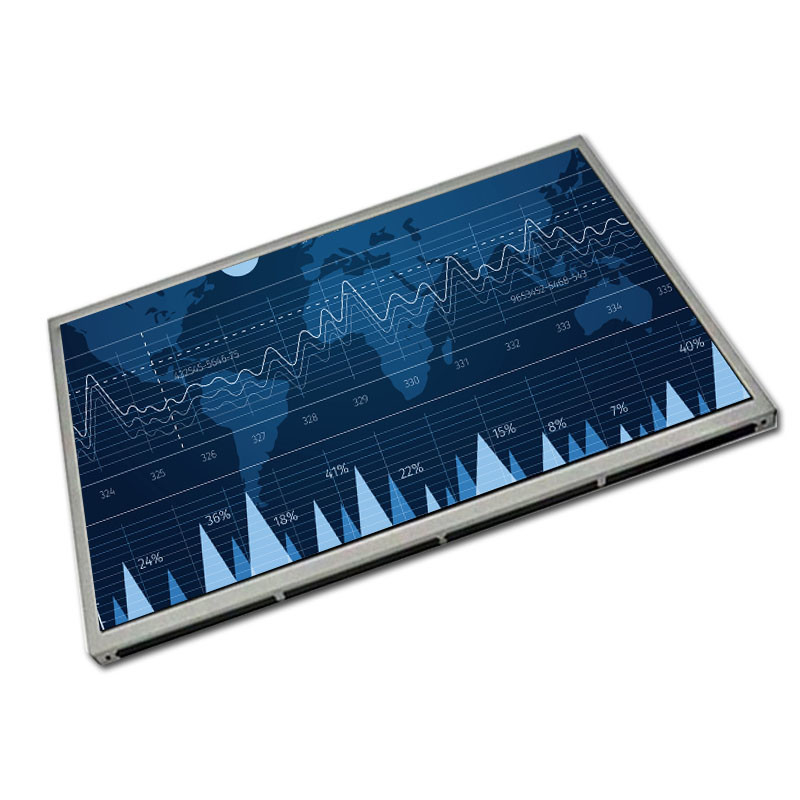

21.5 inch G215HVN01.3 AUO Display Panel High Brightness LCD Display with Resolution 1920×1080
One of the standout features of this display panel is its contrast ratio of 5000, which ensures that you get crystal clear images with vibrant colors and deep blacks.
The display panel also boasts an LVDS 30 interface, which ensures that it is compatible with a wide range of devices. This means that you can easily integrate it into your existing setup and start enjoying its benefits right away.
Another key feature of the display panel is its viewing direction - IPS. This ensures that you get consistent and accurate colors no matter what angle you view it from. This makes it perfect for use in public spaces, where multiple people may be viewing the display at the same time.
This AUO LCD Monitor Display Panel has a RLCD display, and is available through distributors of LCD panels.
| AUO G215HVN01.3 Mechanical Details | ||||
| Pixel Features : | Resolution | 1920(RGB)*1080, FHD | Dot Pitch(mm) | 0.08275*0.24825 (H*V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24825*0.24825 (H*V) [102PPI] | |
| R | ||||
| Mechanical Size : | Active Viewing (mm) | 476.64(H)*268.11(V) | Bezel Area(mm) | 479.84(H) *271.31(V) |
| Outline Dim.(mm) | 495.6(H) *292.2(V) | Depth(mm) | 8.36/24.05 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.63±0.16Kgs | Treatment | Antiglare, Hard coating (3H) |
| AUO G215HVN01.3 Optical Details | ||||
| Basic Information : | Luminance(cd/m² ) | 1000 (Typ.) | Contrast Ratio | 5000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | VA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 3/7 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
With a luminance of 1000 nits and a size of 21.5 inches, the AUO display panel is perfect for a wide range of applications, including gaming, multimedia, and professional use,from digital signage to medical imaging.
Whether you're looking for a display panel for a new project or to replace an existing one, the AUO G215HVN01.3 is the perfect choice. Order now and experience the quality and reliability of AUO LCD display devices!
Our Product Technical Support and Services for AUO Display Panel include:
Product Packaging:
The AUO Display Panel will be packed securely in a cardboard box with foam padding to prevent any damage during transportation.
Shipping:
The product will be shipped via a reputable courier service and the delivery time will depend on the destination. Shipping fees will be calculated based on the weight and destination of the package.
| AUO G215HVN01.3 Packing Details | ||||
| Package Box : | Quantity | Weight | Box Size (L*W*H) | |
| 7pcs / box | 30.9 Kgs (Max.) | 602*372*367 mm | ||
