Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G215HAN01.3
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
21.5 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
250 |
Active Area (W*H): |
476.064×267.786 |
Outline Dimension (W*H*T): |
497.6×292.2×11 |
Operating Temperature: |
-0℃～60℃ |
Storage Temperature: |
-20℃～60℃ |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
1000 |
Size (inch): |
21.5 |
Resolution: |
1920×1080 |
Brightness (cd/m²): |
250 |
Active Area (W*H): |
476.064×267.786 |
Outline Dimension (W*H*T): |
497.6×292.2×11 |
Operating Temperature: |
-0℃～60℃ |
Storage Temperature: |
-20℃～60℃ |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
50K |
Contrast Ratio: |
1000 |

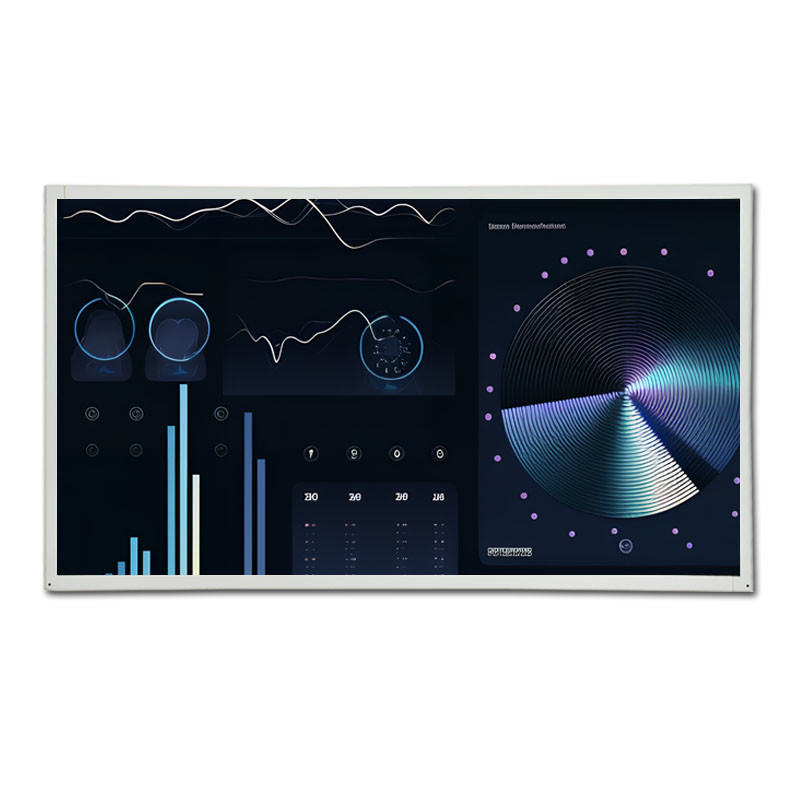

21.5 inch G215HAN01.3 AUO 1920x1080 LVDS Display Panel for Industrial Display Monitors
The AUO Flat Panel Display is a top-of-the-line product that delivers exceptional performance and features. Its IPS display panel offers stunning visuals in full HD resolution, and its high luminance of 250 nits ensures that your content is visible even in bright environments. With an outline dimension of 497.6×292.2×11, this display panel is perfect for applications that require an immersive visual experience. Additionally, its ability to withstand extreme temperatures makes it ideal for use in harsh environments.
| AUO G215HAN01.3 Optical Details | ||||
| Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 12/10(Typ.)(Tr/Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 97% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| AUO G215HAN01.3 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.08265*0.24795 mm (H*V) | Pixel Pitch(mm) | 0.24795*0.24795 mm (H*V) [102PPI] | |
| Physical Size : | Active Viewing(mm) | 476.064*267.786 mm (H*V) | Outline Dim.(mm) | 497.6*292.2 mm (H*V) |
| Bezel Area (mm) | 479.8*271.3 mm (H*V) | Outline Depth | 11.0 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.74Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
This new LCD panel is perfect for applications that require stunning visuals, such as digital signage, gaming, and medical imaging.
Whether you need a display panel for medical equipment, industrial control systems, or gaming monitors, the G215HAN01.3 model is a versatile choice. With a wide viewing angle of 89/89/89/89 and a large active area of 476.064×267.786, this panel delivers vivid and clear images.
The G215HAN01.3 model is also designed for durability and ease of use. It can operate in a range of temperatures, from -20℃ to 60℃ for storage and -0℃ to 60℃ for operation. With a luminance of 250 nits, it is suitable for use in a variety of lighting conditions.
Our AUO Display Panel products come with comprehensive technical support and services to ensure that you have a seamless experience. Our product technical support includes:
In addition to technical support, we also offer a range of services to help you get the most out of your product, including:
Our goal is to provide you with the best possible experience with our AUO Display Panel products, and our technical support and services are designed to do just that.
Product Packaging:
Shipping:
| AUO G215HVN01.3 Packing Details | ||||
| Package Box : | Quantity | Weight | Box Size (L*W*H) | |
| 7pcs / box | 30.9 Kgs (Max.) | 602*372*367 mm | ||
