Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G230HAN01.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
23 |
Resolution: |
1920×1080 |
Luminance(nits): |
300 |
Active Area (W*H): |
509.184×286.416 |
Outline Dimension (W*H*T): |
533.2×312×11 |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
Contrast Ratio: |
1000 |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
30K |
Size (inch): |
23 |
Resolution: |
1920×1080 |
Luminance(nits): |
300 |
Active Area (W*H): |
509.184×286.416 |
Outline Dimension (W*H*T): |
533.2×312×11 |
Operating Temperature: |
-0℃～50℃ |
Storage Temperature: |
-20℃～60℃ |
Contrast Ratio: |
1000 |
Viewing Angle(RLUD): |
89/89/89/89 |
View Direction: |
IPS |
Interface: |
LVDS 30 |
LED Lifetime (hrs): |
30K |

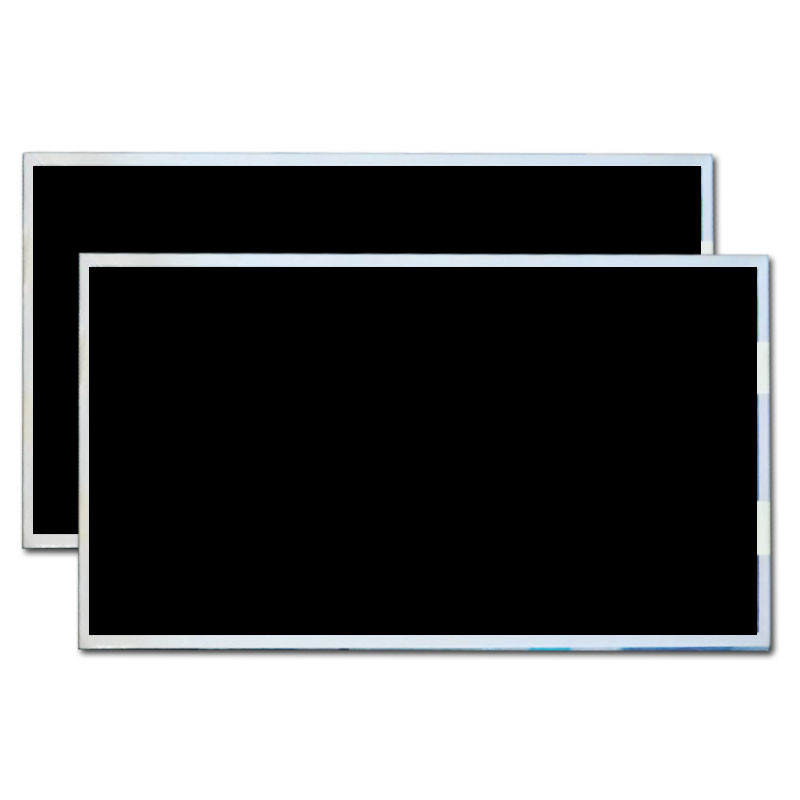

23 inch G230HAN01.1 AUO Industrial Display Panel 1920x1080 Resolution Outdoor displays
This AUO display panel operates within a temperature range of -0℃～50℃, making it ideal for using in different environments. Whether you need a display panel for indoor or outdoor use, this AUO LCD display can handle it all. It is perfect for applications that require reliable performance in various temperature conditions.
The AUO Industrial Liquid Crystal Display Panel has a luminance of 300 nits, which means it can display bright and vivid images even in well-lit environments. This makes it ideal for outdoor displays, digital signage, and other applications that require high brightness levels.
This display panel uses a panel LVDS interface, which is a high-speed digital interface that enables fast and efficient data transfer. This ensures that the display panel can keep up with the demands of high-performance industrial applications. It also has a long lifespan, ensuring that it will last for years to come.
In summary, the AUO Industrial Liquid Crystal Display Panel is a reliable and high-quality display panel that offers exceptional performance in various industrial applications. Its IPS technology, wide viewing angle, high brightness level, and LVDS interface make it a perfect choice for applications that require a large and clear display. With its long lifespan and excellent performance, this AUO LCD display panel is a great investment that will meet your industrial display needs for years to come.
This TFT Display Panel is an AUO LCD display, which is a type of liquid crystal display.
| AUO G230HAN01.1 Optical Details | ||||
| Basic Information : | Luminance | 300cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| AUO G230HAN01.1 Mechanical Details | ||||
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0884*0.2652 (H×V) | Pixel Pitch(mm) | 0.2652*0.2652 (H*V) [95PPI] | |
| Physical Size : | Active Viewing(mm) | 509.184(H) *286.416(V) | Outline Dim.(mm) | 533.2(H) *312(V) |
| Bezel Area (mm) | 513.784(H) *291.016(V) | Outline Depth(mm) | 10.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.50±0.15Kgs | Surface | Antiglare |
This is a square LCD display with high brightness and IPS display panel.
With a contrast ratio of 1000 and an LVDS 30 interface, this display panel is perfect for a variety of applications. It can be used in medical equipment thanks to its certification with ANSI/AAMI ES60601-1-2, making it a reliable option for sensitive situations. It can also be used in industrial equipment thanks to its certification with IEC 60068. With an operating temperature range of -0℃～50℃, this panel can handle a variety of environments.
Whether you need a display panel for a point-of-sale system, a gaming display, or any other situation where a clear display is needed, the G230HAN01.1 is a great option. With a luminance of 300 nits and a LED lifetime of 30K hours, this display panel is sure to provide clear images for years to come.
The AUO Display Panel product comes with comprehensive technical support and services to ensure proper installation, functioning, and maintenance. Our team of experienced technicians is available to provide assistance with any technical issues that may arise during the installation or operation of the display panel. Additionally, we offer regular software updates and firmware upgrades to ensure the product maintains optimal performance and compatibility with the latest technologies. Our support services also include on-site training and troubleshooting, as well as a dedicated customer service team to answer any questions or concerns you may have.
Product Packaging:
The AUO Display Panel is carefully packaged to ensure that it arrives at its destination intact. It is securely wrapped in protective materials such as foam and bubble wrap and placed in a sturdy cardboard box. The box is labeled with the product name, model number, and other important information.
Shipping:
The AUO Display Panel is shipped using a reliable and efficient courier service. The shipping cost and delivery time may vary depending on the destination. The customer will receive a tracking number and updates on the shipping status of the product. It is recommended that the customer inspect the product upon arrival and report any damages to the courier immediately.
| AUO G230HAN01.1 Packing Details | ||||
| Package Box : | Quantity | Weight | Box Size | |
| 8pcs / box | 15.5 Kgs | 620*220*415 mm (L*W*H) | ||
