Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: A104SN03 V1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
10.4 |
Resolution: |
800×600 |
Active Area (W*H): |
211.2(W)×158.4(H) |
Outline Dimension (W*H*T): |
228.4(W)×175.4(H)×6.5(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-10 ~ 60 °C |
Size (inch): |
10.4 |
Resolution: |
800×600 |
Active Area (W*H): |
211.2(W)×158.4(H) |
Outline Dimension (W*H*T): |
228.4(W)×175.4(H)×6.5(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-10 ~ 60 °C |

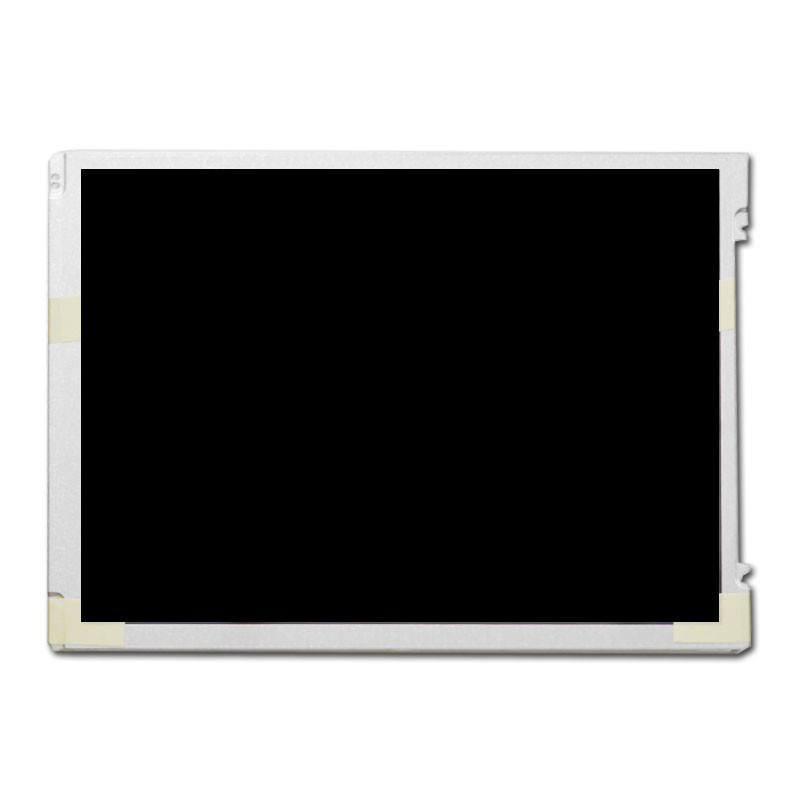

AUO LCD Display 10.4 inch 800×600 pixels A104SN03 V1 Screen
| General Characteristic | |||
| Brand | AUO | Model P/N | A104SN03 V1 |
| Diagonal Size | 10.4'' | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI | Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm | Bezel Opening | 213.2(W)×160.4(H) mm |
| Outline Size | 228.4(W)×175.4(H)×6.5(D) mm | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/50/60 | Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock | Work Mode | TN, Normally White, Transmissive |
| Mass | 400±20g | Backlight | 3S12P WLED , 10K hours , No Driver |
| Refresh Rate | 60Hz | Used for | Industrial |
| Signal Type | TTL (1 ch, 6/8-bit) + SPI , 60 pins FPC | ||
| Voltage Supply | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) | ||
| Environment | Operating Temp.: -10 ~ 60 °C Storage Temp.: -20 ~ 70 °C | ||
| *More details please contact us | |||
Features
10.4-inch SVGA TFT-LCD Display Module
The A104SN03 V1 is a 10.4-inch SVGA TFT-LCD display module from AUO, designed for industrial applications.
This module features a high-quality a-Si TFT-LCD panel with a resolution of 800x600 pixels, providing a clear and
detailed visual experience.
The display module has an active area of 211.2mm x 158.4mm, with a bezel opening of 213.2mm x 160.4mm and
an overall outline size of 228.4mm x 175.4mm x 6.5mm. The module is treated with an antiglare and hard coating (3H)
to reduce reflections and improve durability.
With a luminance of 350 cd/m² and a contrast ratio of 500:1, this display module provides excellent image quality.
The viewing angle is 75/75/50/60, ensuring that the display remains clear and visible from a wide range of angles.
The module operates in TN mode, with a normally white, transmissive work mode. The backlight is a 3S12P WLED
with a lifespan of 10,000 hours, and does not require a driver.
The module has a refresh rate of 60Hz and supports TTL (1 ch, 6/8-bit) + SPI signal types, with a 60-pin FPC
connector. The voltage supply is 3.3/11/15/-7V (Typ.).
Application
The A104SN03 V1 display module is designed for use in industrial applications, including:
Industrial control systems and automation
Medical devices and equipment
Aerospace and defense systems
Marine and naval systems
Test and measurement equipment
Navigation and GPS systems
Public information displays and kiosks
Gaming and simulation systems
Medical imaging and diagnostic equipment
