Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G101UAN01.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
10.1 |
Resolution: |
1920(RGB)×1200 |
Active Area (W*H): |
216.81(W)×135.5(H) |
Outline Dimension (W*H*T): |
227.72(W)×147.8(H) ×5.35(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-10 ~ 60 °C |
Size (inch): |
10.1 |
Resolution: |
1920(RGB)×1200 |
Active Area (W*H): |
216.81(W)×135.5(H) |
Outline Dimension (W*H*T): |
227.72(W)×147.8(H) ×5.35(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-10 ~ 60 °C |

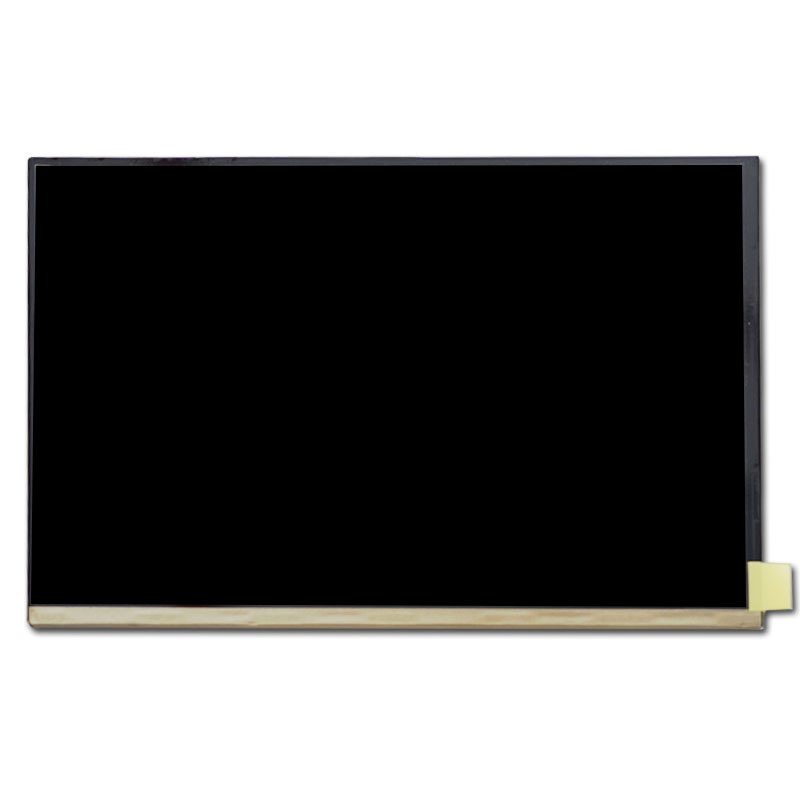

10.1 inch WUXGA TFT LCD Display 178° Wide Viewing Angle LCD Panel
| General Characteristic | |||
| Brand | AUO | Model P/N | G101UAN01.0 |
| Diagonal Size | 10.1'' | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 224PPI | Pixel Format | RGB Vertical Stripe |
| Active Area | 216.81(W)×135.5(H) mm | Bezel Opening | |
| Outline Size | 227.72(W)×147.8(H) ×5.35(D) mm | Treatment | Hard coating |
| Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 | Response | 25 (Typ.)(Tr/Td) |
| Good View at | Symmetry | Work Mode | TN, Normally White, Transmissive |
| Mass | 140g (Typ.) | Backlight | AHVA, Normally Black, Transmissive |
| Refresh Rate | 60Hz | Used for | Industrial |
| Signal Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector | ||
| Voltage Supply | 3.3V (Typ.) | ||
| Environment | Operating Temp.: -10 ~ 60 °C Storage Temp.: -20 ~ 60 °C | ||
| *More details please contact us | |||
Product description
AUO G101UAN01.0: A High-Performance 10.1" a-Si TFT-LCD Display Panel for Industrial Applications
The AUO G101UAN01.0 is a high-quality 10.1-inch diagonal a-Si TFT-LCD display panel designed for industrial applications. This advanced display features an integral WLED backlight system with an onboard LED driver, ensuring bright and clear visuals. With no touch screen, this display is optimized for efficient performance.
Key Features:
Operating temperature range: -10°C to 60°C
Storage temperature range: -20°C to 60°C
Maximal vibration level: 1.5G (14.7 m/s²)
WLED backlight for high-brightness display
Integrated LED driver for easy integration
Reverse I/F for flexible connectivity
eDP1.2 interface for high-speed data transmission
Recommended Applications:
The AUO G101UAN01.0 is ideal for industrial applications that require high-performance display capabilities. Its rugged design and advanced features make it an excellent choice for a wide range of industrial uses, including factory automation, process control, and more.
Availability:
The AUO G101UAN01.0 has been in mass production since Q1, 2018, and is currently available for integration into your industrial applications.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
