Product Details
Place of Origin: Shenzhen, China
Brand Name: AUO
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: G070VTT01.0
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7.0 |
Resolution: |
800(RGB)×480 |
Active Area (W*H): |
152.4(W)×91.44(H) |
Outline Dimension (W*H*T): |
165(W)×105.8(H)×4.81(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-20℃-70℃ |
Size (inch): |
7.0 |
Resolution: |
800(RGB)×480 |
Active Area (W*H): |
152.4(W)×91.44(H) |
Outline Dimension (W*H*T): |
165(W)×105.8(H)×4.81(D) |
Viewing Angle(RLUD): |
TN |
Operating Temperature: |
-20℃-70℃ |

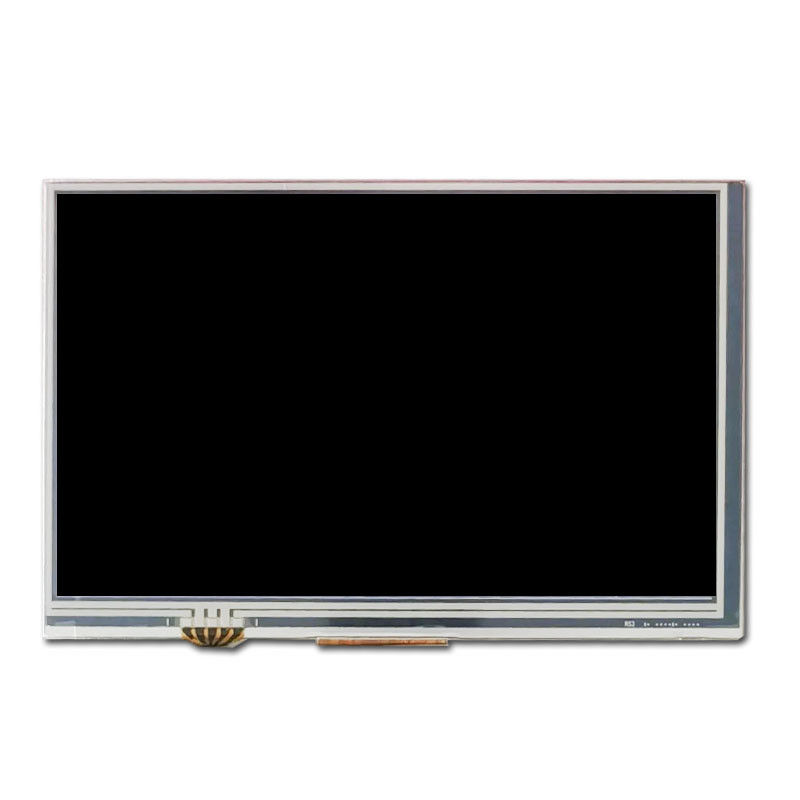

7 inch G070VTT01.0 AU Optronics LCD Display Arduino Touch 800*480
| Product Technical Parameters | |
| Parameter | Specification |
| LCD size(inch) | 7 (Diagonal) |
| Number Of Pixels | 800(RGB)×480 |
| Active Area (W*H) | 152.4(W)×91.44(H) |
| Outline Dimension (W*H*T) | 165(W)×105.8(H)×4.81(D) |
| Viewing angle(RLUD) | 65/65/50/60 |
| View Direction | TN |
| Interface | RGB 40pin |
| Brightness(cd/m²) | 380 |
| LED Lifetime | 10k |
| Contrast Ratio | 500 |
| Operating Temperature | -20℃-70℃ |
| Storage Temperature | -30℃-80℃ |
Product description
The 7-Inch G070VTT01.0 AU Optronics LCD truly stands out as a highly adaptable display, especially crafted for interactive applications.
It flaunts a resolution of 800 x 480 pixels, which guarantees visuals that are not only sharp but also rich in color and vibrancy. This resolution makes it a great choice for presenting detailed images and text, enhancing the overall user experience.
The TN (Twisted Nematic) viewing angle technology incorporated in this panel ensures reliable performance across a range of environments. While it may not offer the widest viewing angles like some other technologies, it still manages to provide a satisfactory visual experience in various settings, be it in a small office space or a more confined area where direct viewing is predominant.
What makes it even more special is its 4-line resistive touch interface. This feature allows for seamless and intuitive user interaction. Users can easily tap, swipe, and perform other touch gestures, making it a perfect fit for applications that demand touch functionality. Whether it's for navigating through menus, inputting data, or interacting with multimedia content, the touch interface enhances usability.
The RGB interface of the display simplifies connectivity and integration with a diverse array of systems. This means that it can be effortlessly paired with different devices and platforms, further expanding its potential applications.
With a brightness level of 380 nits, it offers excellent visibility in indoor lighting conditions. Whether it's under the soft glow of ambient light or in a well-lit room, the display's brightness ensures that the content is clearly visible and legible.
Designed to function within a working temperature range of -20°C to 70°C, this LCD exhibits remarkable robustness. It can withstand temperature fluctuations and operate smoothly in different thermal environments, making it suitable for a wide variety of applications.
Even though it has a lifespan of 10,000 hours, being classified as an A-grade product gives it an edge. It assures users of top-notch quality and a stable supply chain. This makes it a reliable option for use in consumer electronics, where it can enhance the functionality of handheld devices and smart appliances. In industrial controls, it can provide an effective interface for monitoring and operating machinery. And in portable devices, it offers a convenient and high-quality display solution, allowing users to access information and interact with their gadgets on the go.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
