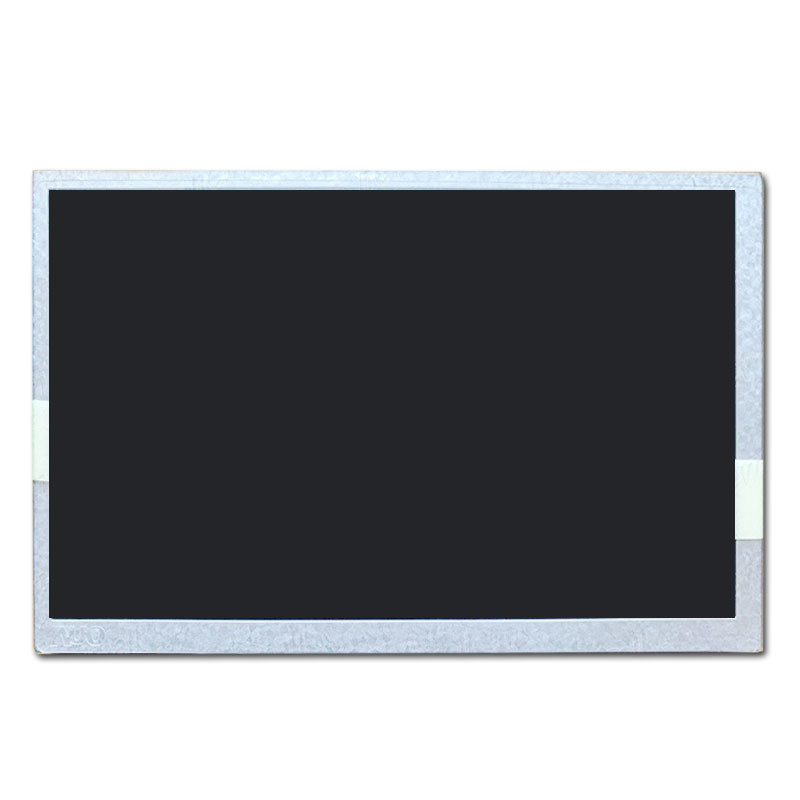

G070VVN01.2 AU Optronics TFT LCD Display 7 inch 800*480

Product Details

Place of Origin: Shenzhen, China

Brand Name: AUO

Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Model Number: G070VVN01.2

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Please contact us for latest price

Packaging Details: Customized

Delivery Time: 1~7 working days

Payment Terms: T/T, L/C, Credit card, PayPal

Supply Ability: 500,0 pieces per day

Get Best Price
Contact Now
Specifications
Highlight:

TFT LCD Display 7 inch

,

G070VVN01.2 TFT LCD Display

Size (inch):
7.0
Resolution:
800(RGB)×480
Active Area (W*H):
152.4(W)×91.44(H)
Outline Dimension (W*H*T):
164.55(W)×104.71(H)×8.5(D)
Viewing Angle(RLUD):
IPS
Operating Temperature:
-20℃-70℃
Size (inch):
7.0
Resolution:
800(RGB)×480
Active Area (W*H):
152.4(W)×91.44(H)
Outline Dimension (W*H*T):
164.55(W)×104.71(H)×8.5(D)
Viewing Angle(RLUD):
IPS
Operating Temperature:
-20℃-70℃
Description
G070VVN01.2 AU Optronics TFT LCD Display 7 inch 800*480

G070VVN01.2 AU Optronics Display TFT LCD 7 inch 800*480

Product Technical Parameters
Parameter Specification
LCD size(inch) 7 (Diagonal)
Number Of Pixels 800(RGB)×480
Active Area (W*H) 152.4(W)×91.44(H)
Outline Dimension (W*H*T) 164.55(W)×104.71(H)×8.5(D)
Viewing angle(RLUD) 80/80/80/80
View Direction IPS
Interface RGB 50pin
Brightness(cd/m²) 600
LED Lifetime 30k
Contrast Ratio 1500
Operating Temperature -20-70
Storage Temperature -20-70

Product description



The AU Optronics G070VVN01.2 TFT Screen is an absolute marvel in the world of high-quality displays.
It showcases a resolution of 800 x 480 pixels, which serves as the foundation for presenting visuals that are not only razor-sharp but also burst with vivid colors. This remarkable resolution makes it a prime candidate for a vast spectrum of applications, be it for streaming engaging multimedia content, displaying crucial data in a clear and legible manner, or enhancing the visual experience of any interactive interface.
The incorporation of IPS (In-Plane Switching) technology is a game-changer. It bestows upon this screen the gift of wide viewing angles, meaning that no matter where you position yourself in relation to the display, you are guaranteed a consistent and captivating color palette, along with unwavering brightness levels. Whether you're viewing it from a side angle during a group presentation or directly in front while indulging in a solo viewing session, the visual integrity remains intact.
A brightness level of 600 nits is nothing short of impressive. This empowers the G070VVN01.2 to shine brightly and with clarity, even when pitted against the harshest and brightest of environments. It's like a beacon of visual excellence, making it a top pick for outdoor applications where sunlight and other bright light sources are the norm. Whether it's for a digital signage installation on a bustling street corner or an outdoor kiosk in a sunny plaza, this screen will never falter in delivering its message with utmost visibility.
The RGB interface is a key feature that unlocks a world of seamless integration possibilities. It allows this TFT screen to effortlessly pair with a diverse range of systems and devices, be it a cutting-edge consumer electronics gadget, a sophisticated industrial control unit, or a life-saving medical device. This versatility ensures that it can adapt and enhance the functionality of any technological ecosystem it becomes a part of.
Designed to operate with remarkable efficiency within a temperature range spanning from -20°C to 70°C, this screen is a paragon of reliability and durability. It shrugs off the challenges posed by extreme cold and sweltering heat, remaining steadfast and performing optimally in a variety of climatic conditions. This makes it a reliable workhorse, ready to serve in any environment where temperature fluctuations are a concern.
With a lifespan of 30,000 hours, and being classified as an A-grade product, it offers the trifecta of quality, longevity, and a stable supply. It's not just a display; it's a long-term investment that promises to consistently deliver high-caliber performance. Whether you're a manufacturer looking to enhance the quality of your consumer electronics lineup, an industrial engineer seeking a reliable visual interface for your control systems, or a medical professional in need of a dependable display for critical equipment, the AU Optronics G070VVN01.2 TFT Screen is an outstanding choice that will exceed your expectations and elevate your technological endeavors.



FAQ:

Do you have HDMI Board?

Yes, we have HDMI board, and drive board to support android system.



Do you have Touch screen?

Yes, Capacitive touch screen and Resistive touch screen can be customized



Do you support small batch orders?

Yes, we accept small batch trial orders.



How about your after-sale service?

The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
