Product Details
Place of Origin: Shenzhen, China
Brand Name: TFT Driver Board
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: JZ-V53 V1.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Function: |
Support Startup Screen; Support Infrared Remote Control Signal Control; Support Flip Function; Audio Input Functions; Optional FM Output |
Interface Signal: |
1 VGA, 2 CVBS Inputs, 1 CVBS Output, 1 USB, 1 YpBpR And 1 HDMI/DVI Interface |
Output: |
Supports LVDS (6-bit, 8 Bits) Output |
Chip Solution: |
Mstar |
Maximum Resolution Supported: |
1920x1080 |
Dimension: |
132.13 X 82.13 X 15 Mm |
Storage Temperature: |
-20~60 °C |
Operating Temperature: |
-20~60 °C |
Function: |
Support Startup Screen; Support Infrared Remote Control Signal Control; Support Flip Function; Audio Input Functions; Optional FM Output |
Interface Signal: |
1 VGA, 2 CVBS Inputs, 1 CVBS Output, 1 USB, 1 YpBpR And 1 HDMI/DVI Interface |
Output: |
Supports LVDS (6-bit, 8 Bits) Output |
Chip Solution: |
Mstar |
Maximum Resolution Supported: |
1920x1080 |
Dimension: |
132.13 X 82.13 X 15 Mm |
Storage Temperature: |
-20~60 °C |
Operating Temperature: |
-20~60 °C |

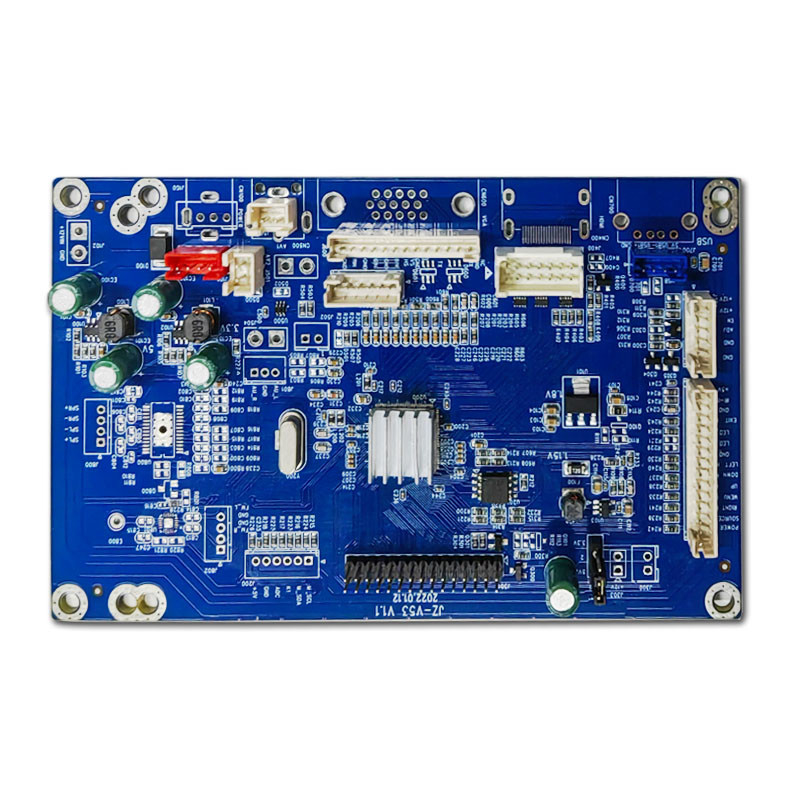

JZ-V53 V1.1 LCD Controller Board Supports Maximum Resolution to 1920x1080 with 1 VGA / 1 HDMI/2 CVBS(I)/1CVBS(O)
Description
This driver board is mainly used to support TFT LCD screen. The driver board has 1 VGA, 2 CVBS inputs, 1 CVBS output, 1 USB, 1 YpBpR and 1 HDMI/DVI interface. It supports LVDS (6-bit, 8 bits) output. The motherboard uses Mstar signal processing chip, which has powerful processing functions and can support standard and non-standard signals of various specifications. Use high-standard devices with good working performance.
*Operating temperature range -20 to 60℃
* Supports maximum resolution up to 1920x1080
*Can receive remote control function
product features
● 2 CVBS signal inputs, 1 CVBS output, 1 VGA, 1 HDMI/DVI, 1 YPBPR, 1 USB
●Format support: NTSC M, NTSC-J, NTSC 4.43, PAL(B,D,G,H,M,N,I,Nc), 3D image filtering
● OSD display and control
● Support startup screen
●Support infrared remote control signal control
● Support flip function
●Audio input function
● Optional FM output
