Product Details
Place of Origin: Shenzhen, China
Brand Name: TFT Driver Board
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: JZ-VDH68 V1.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Function: |
Optional To Add Automatic Photosensitivity Control; Can Receive Remote Control Function |
Interface Signal: |
1 VGA, 1 DVI And 1 HDMI |
Output: |
Support LVDS Output Interface And EDP Output Interface |
Chip Solution: |
MTK |
Maximum Resolution Supported: |
1920x1200 |
Dimension: |
139.0 X 66.0 X 15 Mm |
Storage Temperature: |
-20~65 °C |
Operating Temperature: |
-20~65 °C |
Function: |
Optional To Add Automatic Photosensitivity Control; Can Receive Remote Control Function |
Interface Signal: |
1 VGA, 1 DVI And 1 HDMI |
Output: |
Support LVDS Output Interface And EDP Output Interface |
Chip Solution: |
MTK |
Maximum Resolution Supported: |
1920x1200 |
Dimension: |
139.0 X 66.0 X 15 Mm |
Storage Temperature: |
-20~65 °C |
Operating Temperature: |
-20~65 °C |

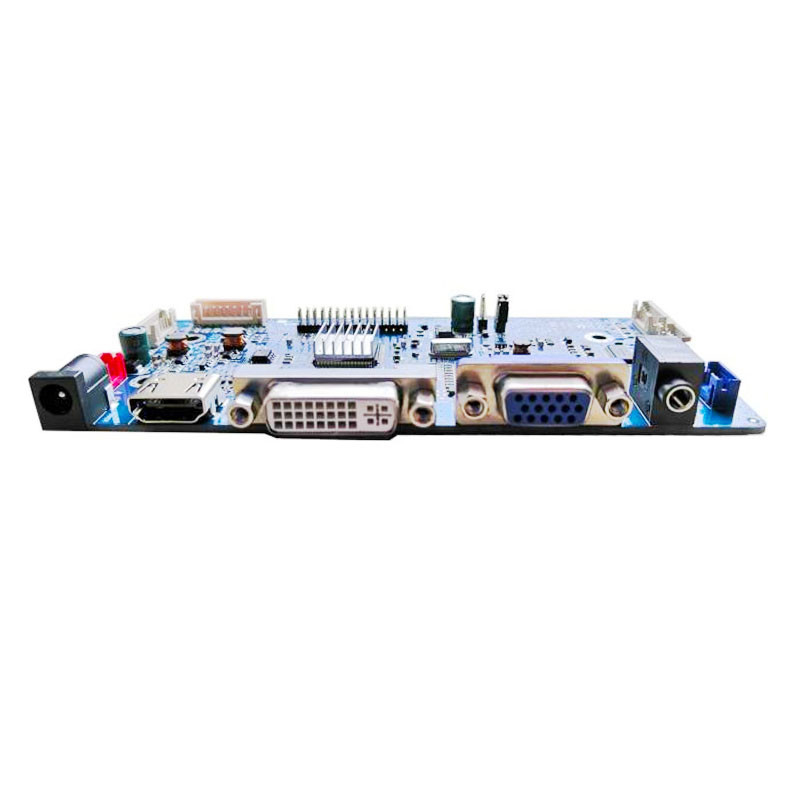

JZ-VDH68 V1.1 TFT Drive Board Supports Maximum Resolution to 1920x1200 with 1 VGA / 1 DVI /HDMI
Description
This driver board is mainly used to support TFT LCD screen. The driver board has 1 VGA, 1 DVI and 1 HDMI interface, and supports LVDS output interface and eDP output interface. The mainboard adopts MTK signal processing chip, which has powerful processing functions and can support standard and non-standard signals of various specifications. Use high-standard devices with good working performance.
product features
*Operating temperature range -20 to 65℃.
* Optional to add automatic photosensitivity control.
* Supports maximum resolution up to 1920x1200.
* Can receive remote control function.
*Basic resolutions are supported up to 85Hz (if the LCD screen used can work at 85Hz).
* Can support LVDS output and eDP output.
* The power amplifier supports up to 2X10W.
*Support serial port protocol control.
