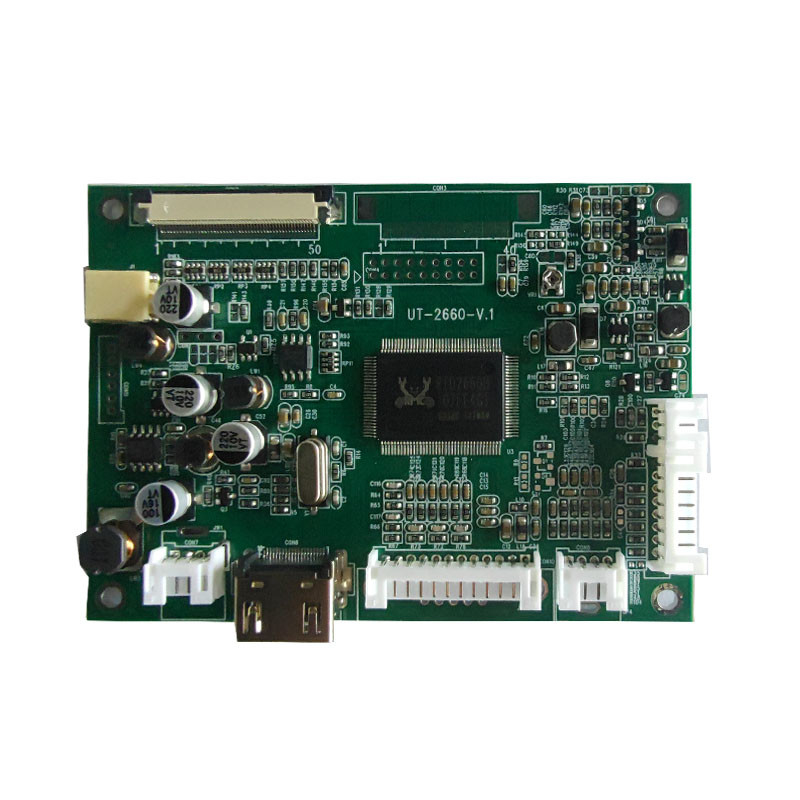

Product Details
Place of Origin: Shenzhen, China
Brand Name: MQ
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 44-09002-HH1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
7.0 |
Resolution: |
1024(RGB)× 600 |
Active Area (W*H): |
96( (H) X70(V) |
Outline Dimension (W*H*T): |
96(H) X70(V) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-10℃～+60℃ |
Size (inch): |
7.0 |
Resolution: |
1024(RGB)× 600 |
Active Area (W*H): |
96( (H) X70(V) |
Outline Dimension (W*H*T): |
96(H) X70(V) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-10℃～+60℃ |
Product Technical Parameters
| Definition | Description | Definition | Description |
| CVBS2 | A V 2 s i g na l in p u t | R+ | Red signal |
| GN | Ground | GND | Ground |
| CVBS | AV1 s i g na l in p u t | G+ | Green Signal+ |
| GN | Ground | GND | +Ground |
| GND | - | B+ | Blue signal+ |
| VS | Field sync signal | GND | Ground |
| HS | Line sync signal | SDA | I2C Channels |
| GND | - | SCL | I2C Channels |
Product description
1.Scope of Application
For TTL: Models such as EJ050NA-01G, AT070TN92, AT070TN94, AT080TN64, AT080TN52, EJ080NA-05A, EJ080NA-05B, TM080RDH01, and AT090TN12 are included.
For LVDS: EJ070NA-01J, N070LGE-L41, HJ070NA-13A, HJ070NA-13B, EJ070NA-01F, ZJ070NA-01P, NJ070NA-23A, P070BAG-CM1, TM070JDHG30. Additionally, it can connect to EJ080NA-04C, HE080IA-01D, HJ080NA-04L, HJ080IA-01F, TM080TDH01, and TM080TDHG01 for high-definition 50PIN LCD display module driver board inspection.
2.Product Function Description
3.Signal Input Standard
4.Working Environment
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
