Product Details
Place of Origin: Shenzhen, China
Brand Name: MQ
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 44-15001-AH1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Size (inch): |
15 |
Resolution: |
1920(RGB)× 1200 |
Active Area (W*H): |
123.2( (H) X82.6(V) |
Outline Dimension (W*H*T): |
123.2(H) X82.6(V) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-10℃～+60℃ |
Size (inch): |
15 |
Resolution: |
1920(RGB)× 1200 |
Active Area (W*H): |
123.2( (H) X82.6(V) |
Outline Dimension (W*H*T): |
123.2(H) X82.6(V) |
Viewing Angle(RLUD): |
IPS |
Operating Temperature: |
-10℃～+60℃ |
Product Technical Parameters
| Description | Model | ND-L.ZM60H | ||
| Key board with LED connector | Chip solution | Single Chip RTD2660H | ||
| Screen Interface LVDS drive | Screen Panel | Flooding screen interface | Single / dual-port LVDS interface | |
| Speaker Interface | Maximum resolution | 1920x1200 | ||
| Inverter Interface | Power supply | Operating Voltage | 12V or 12V +5 V | |
| DVI signal input terminal | Flooding screen voltage | 3.3V or 5V or 12V | ||
| VGA signal input terminal | Power Mode | Support low-power mode, standby mode | ||
| The audio signal input terminal | Standby Power | <1W | ||
| Power input terminal | OSD language | Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Japanese, Korean, Russian, Polish, Thai,Netherlands Language | ||
| HDMI signal input terminal | Key Functions | POWER, MENU, +/-, AUTO/EXIT | ||
| Audio Output | 2x2W(8Ω) | |||
Product description

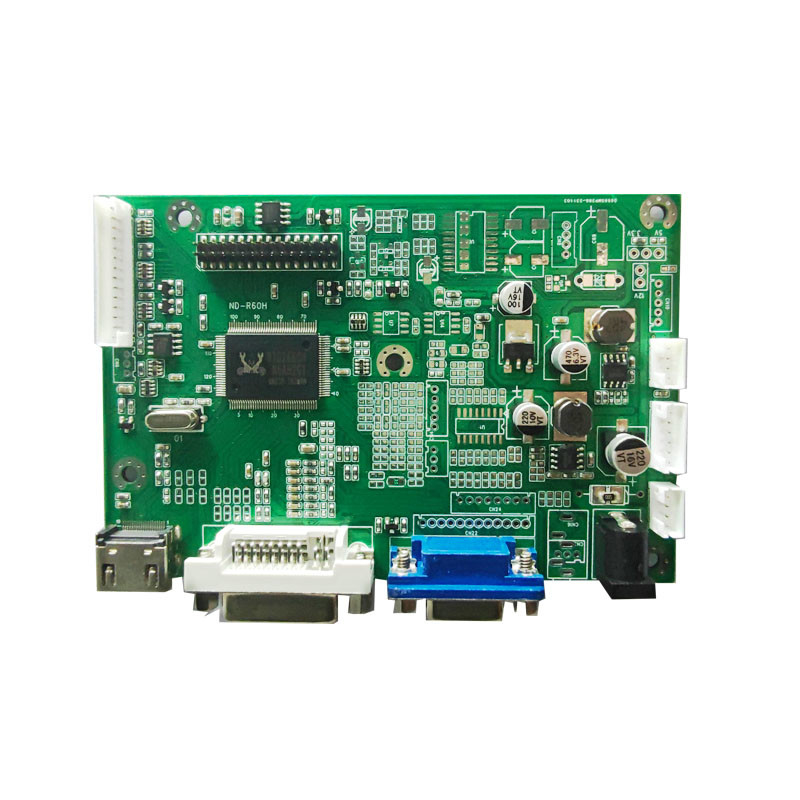

The ND-L.ZM60H is connected to TFT LCD panels within a liquid crystal display driver board. This MONITOR program can support a resolution of up to 1920x1200. The color support reaches up to 24 bits. The line frequency ranges from 15 to 250 KHz, and the field frequency is within 45 to 80 Hz. The signal can be synchronized automatically, and the detection synchronization mode requires the use of separated horizontal and vertical sync signals. This program supports both DCR (dynamic Contrast Ratio) and external audio output. The volume can be adjusted using the key way NC.
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
