Product Details
Place of Origin: Shenzhen, China
Brand Name: TFT Driver Board
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: FPD-UHD V2.1
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Function: |
Integrated 2*2 High-quality Image Scaling Engines, Which Can Process 4 4K2K@30Hz Video Input Streams Simultaneously |
Interface Signal: |
1 VGA And 1 DVI Interface. 1 HDMI Port And 1 DP Port, Supporting VBY1 And EDP Output Interfaces |
Output Port: |
VBY1 And EDP |
Chip Solution: |
Mstar |
Maximum Resolution Supported: |
4096x2160 |
Dimension: |
172x115x15mm |
Storage Temperature: |
-20~70 °C |
Operating Temperature: |
-20~70 °C |
Function: |
Integrated 2*2 High-quality Image Scaling Engines, Which Can Process 4 4K2K@30Hz Video Input Streams Simultaneously |
Interface Signal: |
1 VGA And 1 DVI Interface. 1 HDMI Port And 1 DP Port, Supporting VBY1 And EDP Output Interfaces |
Output Port: |
VBY1 And EDP |
Chip Solution: |
Mstar |
Maximum Resolution Supported: |
4096x2160 |
Dimension: |
172x115x15mm |
Storage Temperature: |
-20~70 °C |
Operating Temperature: |
-20~70 °C |

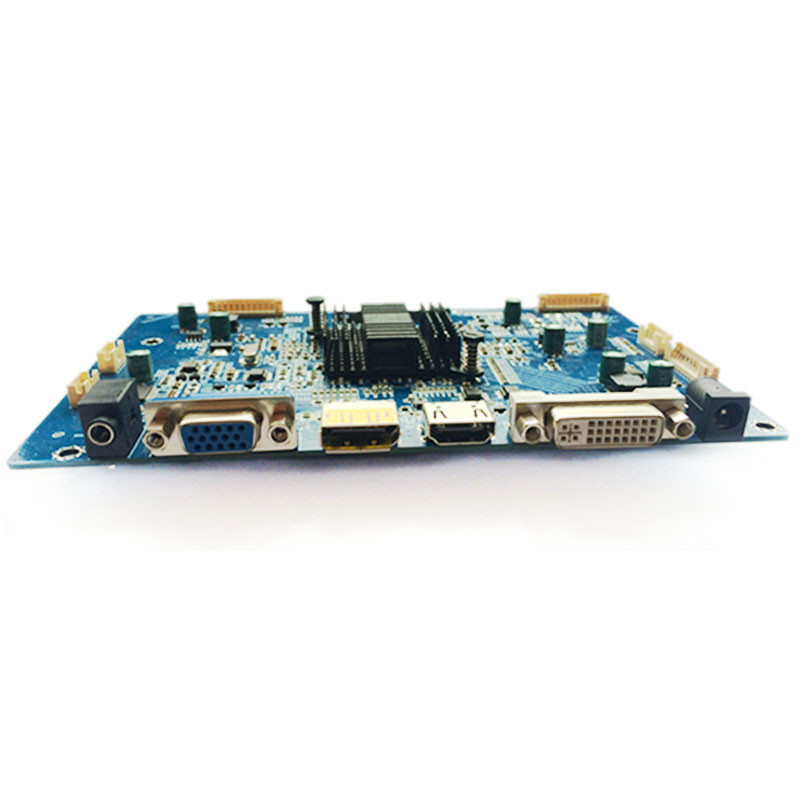

FPD-UHD TFT Controller Board Support Max Resolution 4096x2160 TFT LCD Display
Description
This driver board is mainly used for TFT LCD screens that support VBY1 interface. The driver board has 1 VGA and 1 DVI interface.
1 HDMI port and 1 DP port, supporting VBY1 and eDP output interfaces. The motherboard uses Mstar signal processing chip to process
It has powerful functions and can support standard and non-standard signals of various specifications. Use high-standard devices with good working performance.
* Integrated 2*2 high-quality image scaling engines, which can process 4 4K2K@30Hz video input streams simultaneously.
* Built-in VBY1 interface, supports LCD Panel with a maximum resolution of 4096x2160@60Hz.
* Supports external power supply control for large screens, ultra-low standby power consumption.
* Support PIP/PBP window.
* Supports 4K eDP signal output and eDP LCD screens in HBR and HBR2 formats.
* Integrated 4 composite digital interfaces, supporting HDMI/DVI/DP/MHL interfaces, and integrated 1 analog input port, supporting
PC (VGA) input.
