Product Details
Place of Origin: Shenzhen, China
Brand Name: TFT Driver Board
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: FPD-QHD
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Please contact us for latest price
Packaging Details: Customized
Delivery Time: 1~7 working days
Payment Terms: T/T, L/C, Credit card, PayPal
Supply Ability: 500,0 pieces per day
Function: |
Support Startup Screen; Support Infrared Remote Control Signal Control; Support Flip Function; Audio Input And Output Functions |
Interface Signal: |
1 VGA, 2 AV Inputs, 1 USB, 1 HDMI Interface |
Output: |
Supports LVDS (6-bit, 8-bit) |
Chip Solution: |
Mstar |
Maximum Resolution Supported: |
1920x1200 |
Dimension: |
145.04 X 62.15x 15 Mm |
Storage Temperature: |
-20~65 °C |
Operating Temperature: |
-20~50 °C |
Function: |
Support Startup Screen; Support Infrared Remote Control Signal Control; Support Flip Function; Audio Input And Output Functions |
Interface Signal: |
1 VGA, 2 AV Inputs, 1 USB, 1 HDMI Interface |
Output: |
Supports LVDS (6-bit, 8-bit) |
Chip Solution: |
Mstar |
Maximum Resolution Supported: |
1920x1200 |
Dimension: |
145.04 X 62.15x 15 Mm |
Storage Temperature: |
-20~65 °C |
Operating Temperature: |
-20~50 °C |

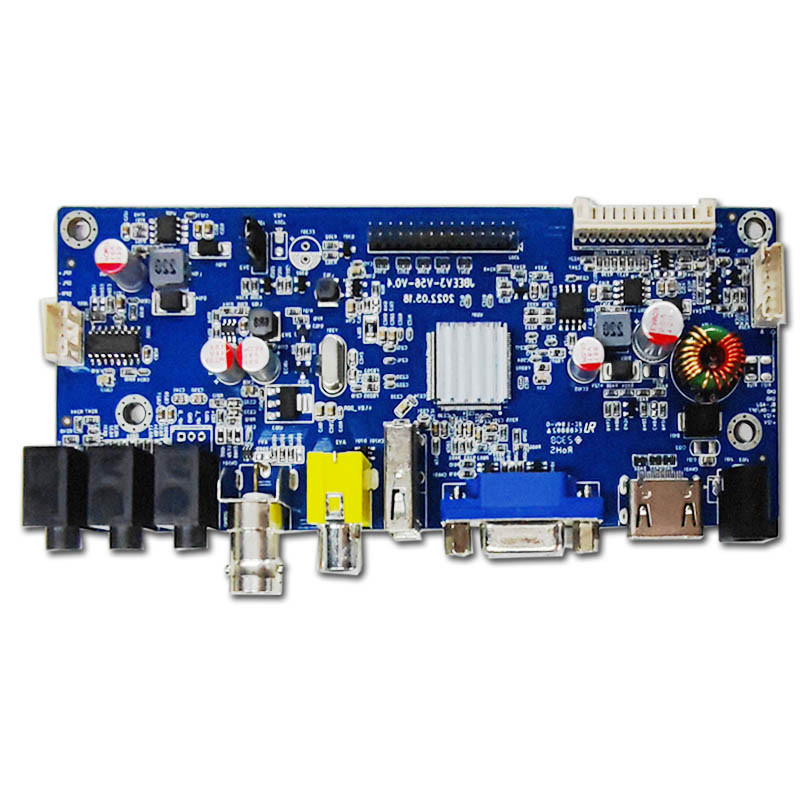

JBEEV3-V56-V0.4 TFT Controller Board Supports Maximum Resolution to 1920x1200
Description
This driver board is mainly used to support TFT LCD screens. The driver board has 1 VGA, 2 AV inputs, 1 USB, 1 HDMI interface, and supports LVDS (6-bit, 8-bit) output. The mainboard uses Mstar signal processing chip, which has powerful processing functions and can support standard and non-standard signals of various specifications. Use high-standard devices with good working performance.
*Operating temperature range -20 to 50℃
* Supports maximum resolution up to 1920x1200
*Can receive remote control function
product features
2 AV signal inputs, 1 VGA, 1 HDMI, 1 USB
Format support: NTSC M, NTSC-J, NTSC 4.43, PAL(B,D,G,H,M,N,I,Nc), 3D image filtering
OSD display and control
Support startup screen
Support infrared remote control signal control
Support flip function
Audio input and output functions
