Function: |
Headphone Input And Output And 3 Watts Dual Channel Audio Amplifier Output |
Interface Signal: |
1xHDMI1.4, 1xDVI1.0 And 1xVGA |
Output: |
Supports 2 Port LVDS Output |
Dimension: |
139.0 X 53 Mm |
Storage Temperature: |
-20 ~ 60℃ |
Operating Temperature: |
-10 ~ 50℃ |
Function: |
Headphone Input And Output And 3 Watts Dual Channel Audio Amplifier Output |
Interface Signal: |
1xHDMI1.4, 1xDVI1.0 And 1xVGA |
Output: |
Supports 2 Port LVDS Output |
Dimension: |
139.0 X 53 Mm |
Storage Temperature: |
-20 ~ 60℃ |
Operating Temperature: |
-10 ~ 50℃ |
TFT Panel Display with ZY08012 V1.0 Controller Board Multi-function Display Driver Board
Description

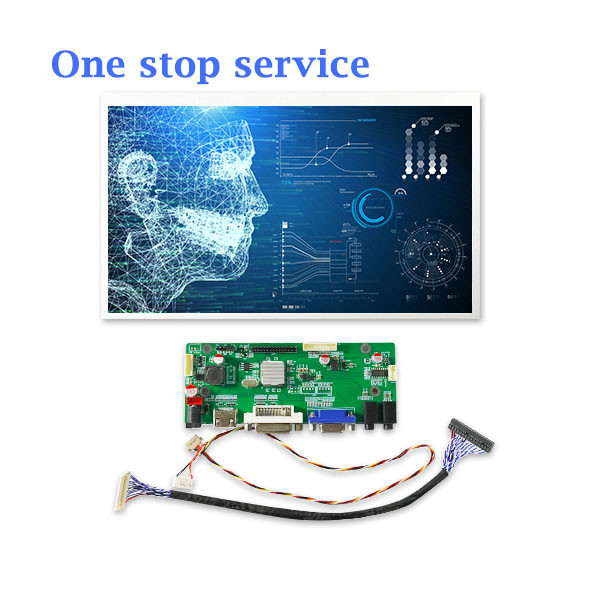

ZY08012 V1.0 is a multi-function display driver board combines 1xHDMI1.4, 1xDVI1.0 and 1xVGA input interface,supports 2 port LVDS output up to 186MHz, supports headphone input and output and 3 watts dual channel audio amplifier output.
Features
| Power input | 12V DC input /12V 680mA+/-10mA |
| Signal Input | 1 HDMI input /1 HDMI |
| Signal Input | 1 VGA input / 1 VGA |
| Signal Input | 1 DVI input /1 DVI |
| Signal Output |
6/8 bit single /double LVDS output 6/8 LVDS |
| Audio input | 3.5mm headphone input /3.5mm |
| Audio output | Headphone output /3.5mm |
| Audio output | Speaker_L/R |
| Other | I²C/ADC/UART |
Interface Function Description Diagram
| NO. | Description |
| CN6 | ADC interface /ADC |
| CN9 | Display panel voltage setup |
| CN11 | LVDS output interface /LVDS |
| CN15 | UART interface |
| CN7 | I²C bus interface /I²C |
| CN8 | Keypad interface |
| CN12 | 3W speaker_L/R output /3 |
|
CN13 |
External 3.5mm headphone output interface |
|
CN14 |
External 3.5mm headphone input interface |
| CN5 | External VGA input interface |
| CN4 | External DVI input interface |
| CN3 | External HDMI input interface |
| CN1 | External 12V DC input interface |
| CN2 | Built-in 12V DC input interface |
| CN10 | Backlight control interface |
Structural Dimension Diagram
